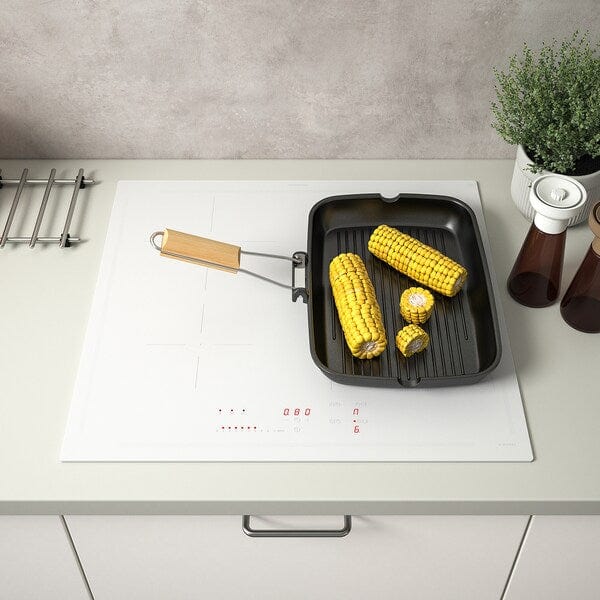

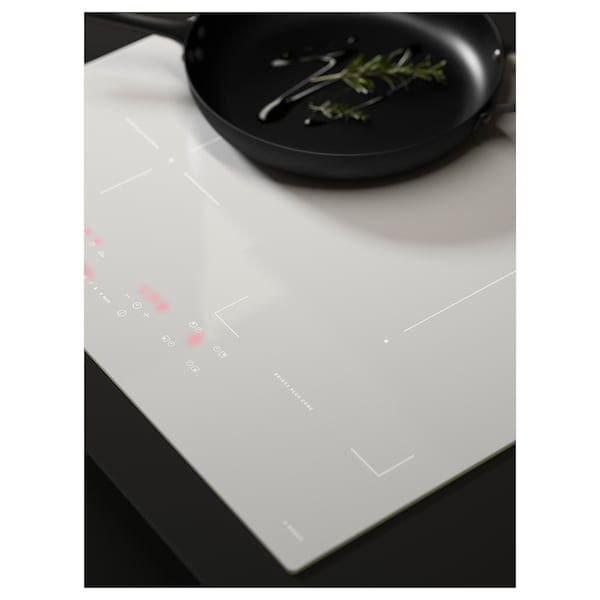

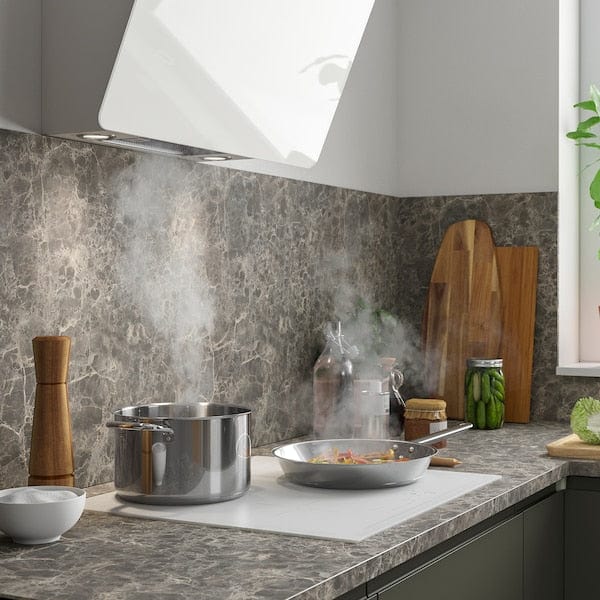

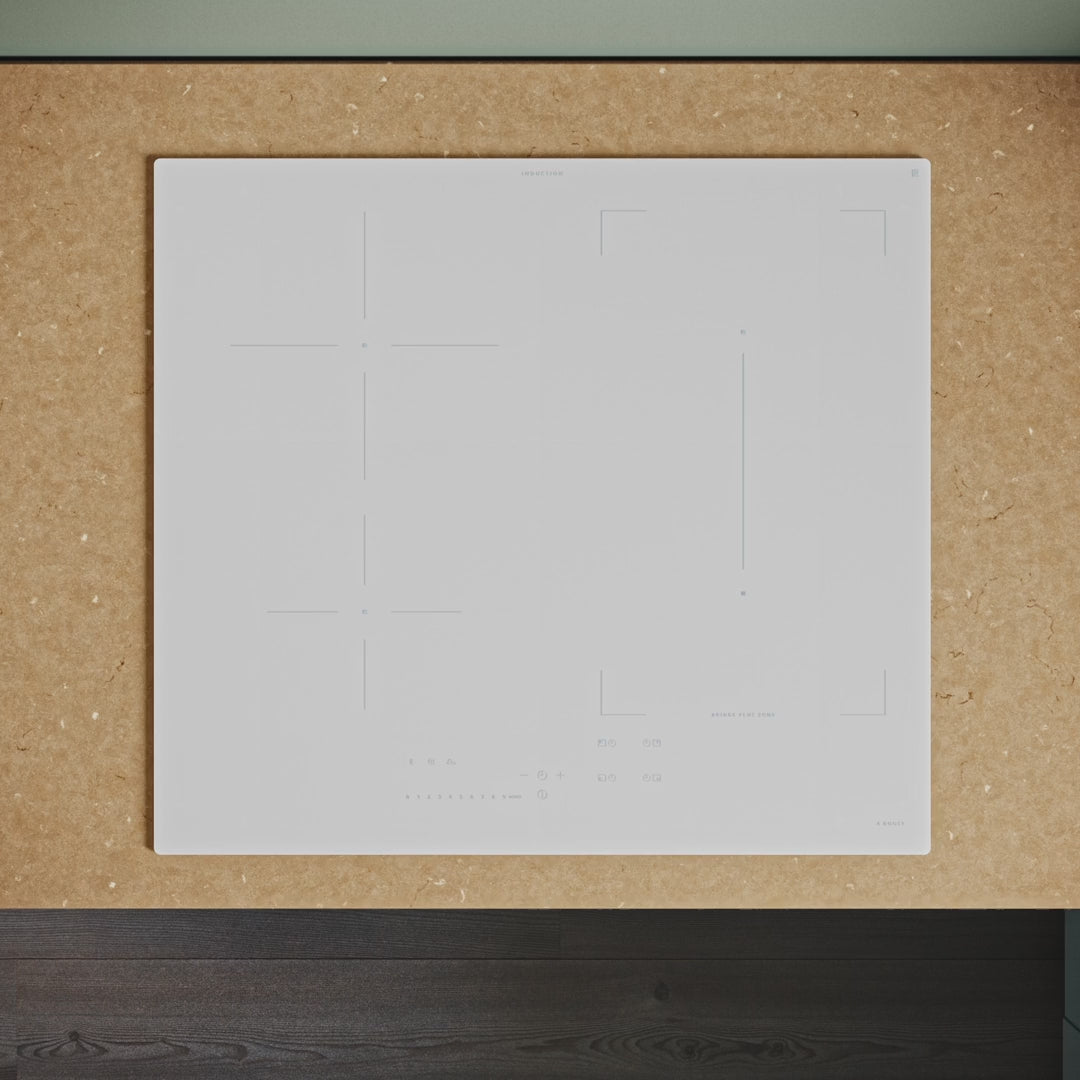

A clean design and energy-efficient induction. The bridging function allows you to connect 2 cooking zones into 1 large one so you can use larger or odd-size pots.

Key Features

• 5 year guarantee. Read about the terms in the guarantee brochure.
• Induction hobs are extremely energy efficient, fast and precise as induction technology transfers energy directly into magnetic cookware.
• Gives you the flexibility to use larger and different pots for special recipes or occasions as the bridge function allows you to connect 2 cooking zones into 1 large one when needed.
• Each zone has an auto cooking function. By pressing on the symbol, the zone heats to a melting setting with just the right temperature for melting things like chocolate or butter.
• When the hob is on, the cooking zone activates automatically when you place the pot on it. All you need to do is choose the power level.

• Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
• After cleaning, be sure to wipe dry with a soft cloth.
• Remove stains and food residue after each use using a cloth damped with warm water and a mild detergent.

Safety information

• This product bears the UK CA mark.
• This product bears the Serbian mark of conformity.

Test results and compliance

• This product bears the CE mark.

Performance (only white goods)

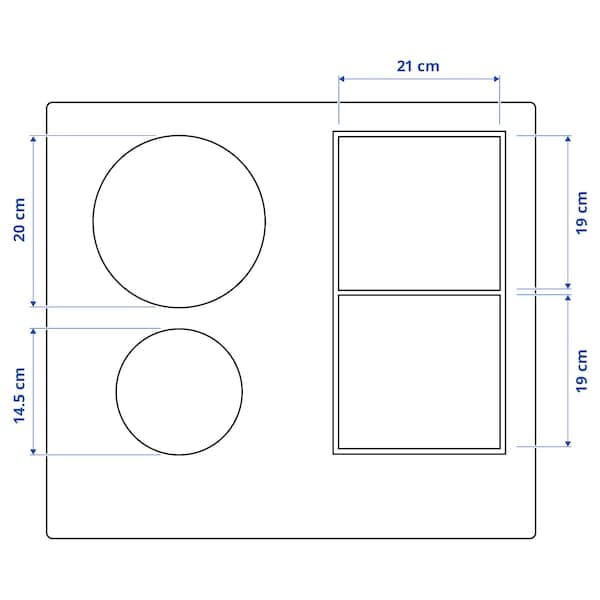

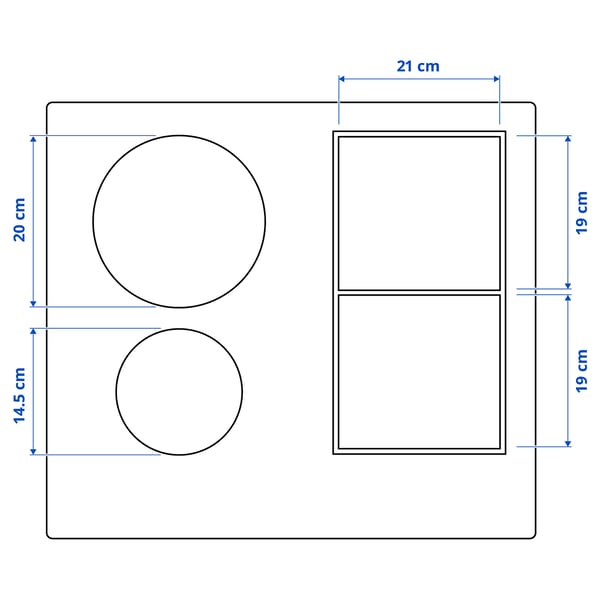

• Hob with induction cooking zones:
• Right front: 21x19 cm – 2100W, booster 3000W.
• Left front: 14.5 cm – 1400W, booster 1850W.
• Left rear: 20 cm - 2300W, booster 3000W.
• Right rear: 21x19cm – 2100W, booster 3000W.
• Voltage: 220-240V.
• Connection rating: 7400W.
• Current: 2x16A or 1x32A.

Functions (only white goods)

• Number of zones: 4.
• Pause.
• Child lock.
• Timer.
• Booster (4 zones).
• Bridge function.
• Touch and slide.

Compl. assembly information

• Cord/cable not included. Wired-in installation. Installation must be made by a qualified electrician or specialist.
• When installing your hob in a base cabinet with drawers, complete with NYTTIG hob separator for drawer. The protective barrier prevents reaching the hob from below and getting burned.
• Cooking zones are grouped (left or right) and connected to phases, each with a maximum power supply. When using more than one zone connected to the same phase, the hob divides the power between them.
• The power setting of the last selected cooking zone is prioritised. Power to the previously activated cooking zone is reduced to match the maximum supply.
• You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.

White goods information

• Induction hobs requires cookware with magnetic base.
• The hob may produce low humming, whistling or ticking sounds. These sounds are caused by the induction technology and they are completely normal.

Combined with

• Can not be combined with LAGAN oven in a KNOXHULT kitchen.

Other information

• IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com

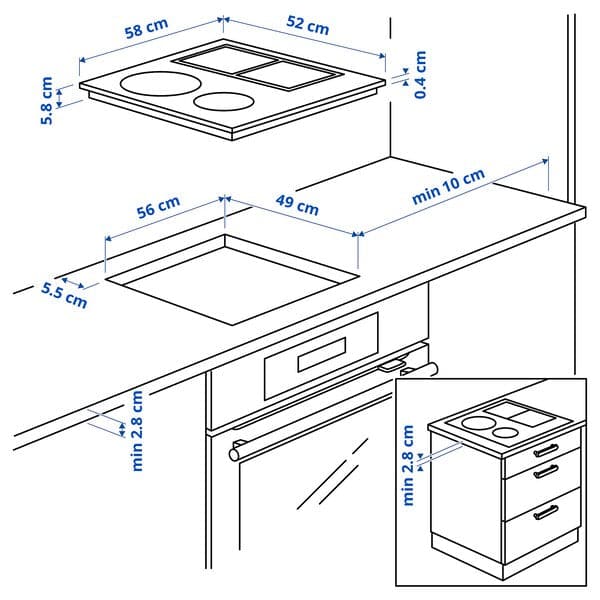

Width: 58.0 cm Depth: 52.0 cm Height: 5.8 cm Weight: 8.80 kg Cut-out width: 56.0 cm Cut-out depth: 49.0 cm
