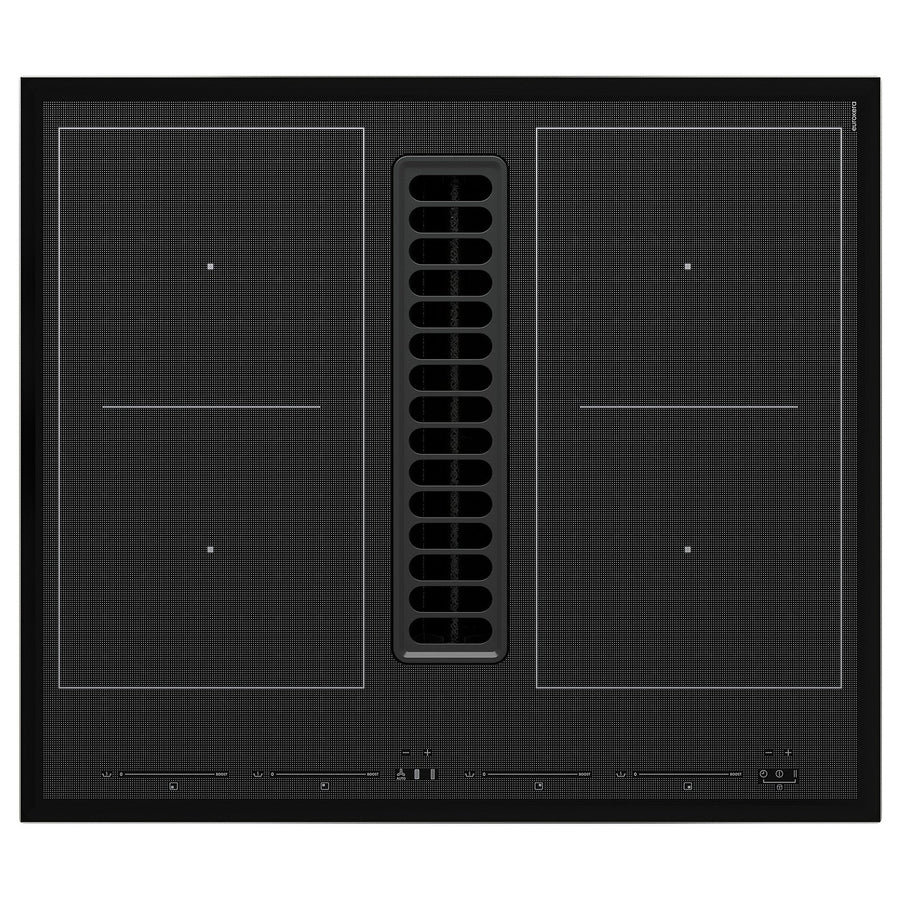

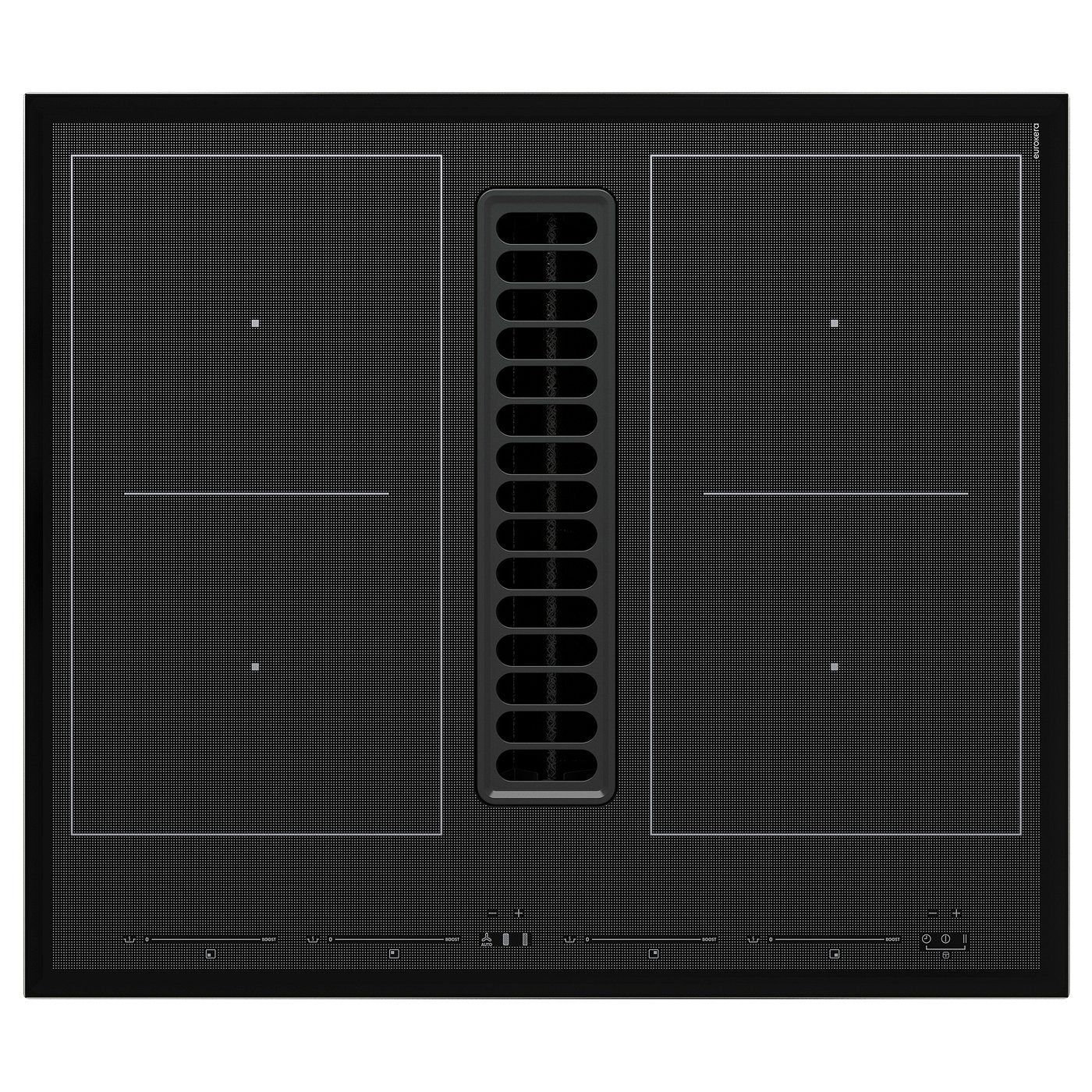

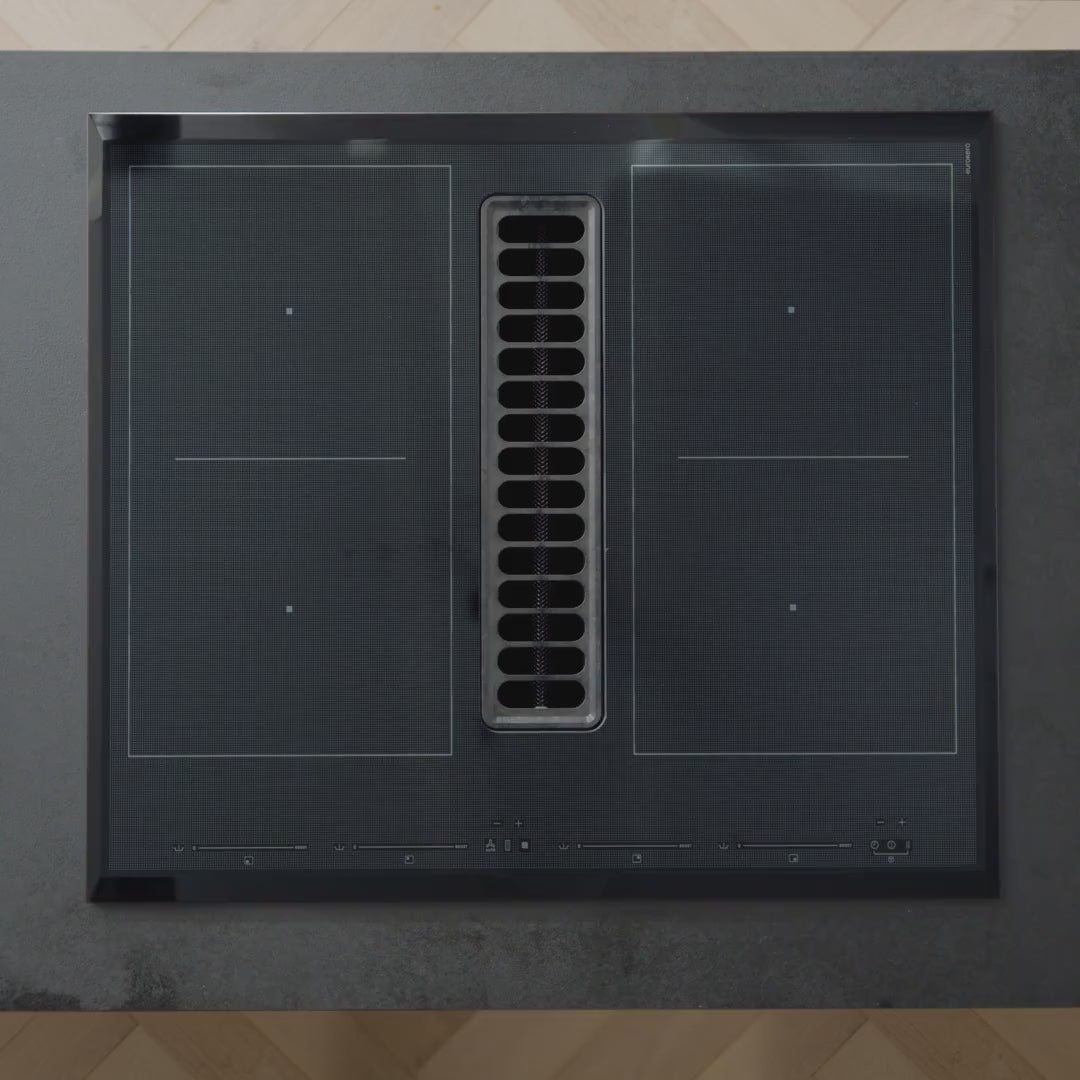

TÄCKNAN induction hob IKEA 500 with built-in extractor keeps views open and chats flowing – no bulky hood in sight. The bevel-edge design blends in beautifully, giving you room to create and connect.

Key Features

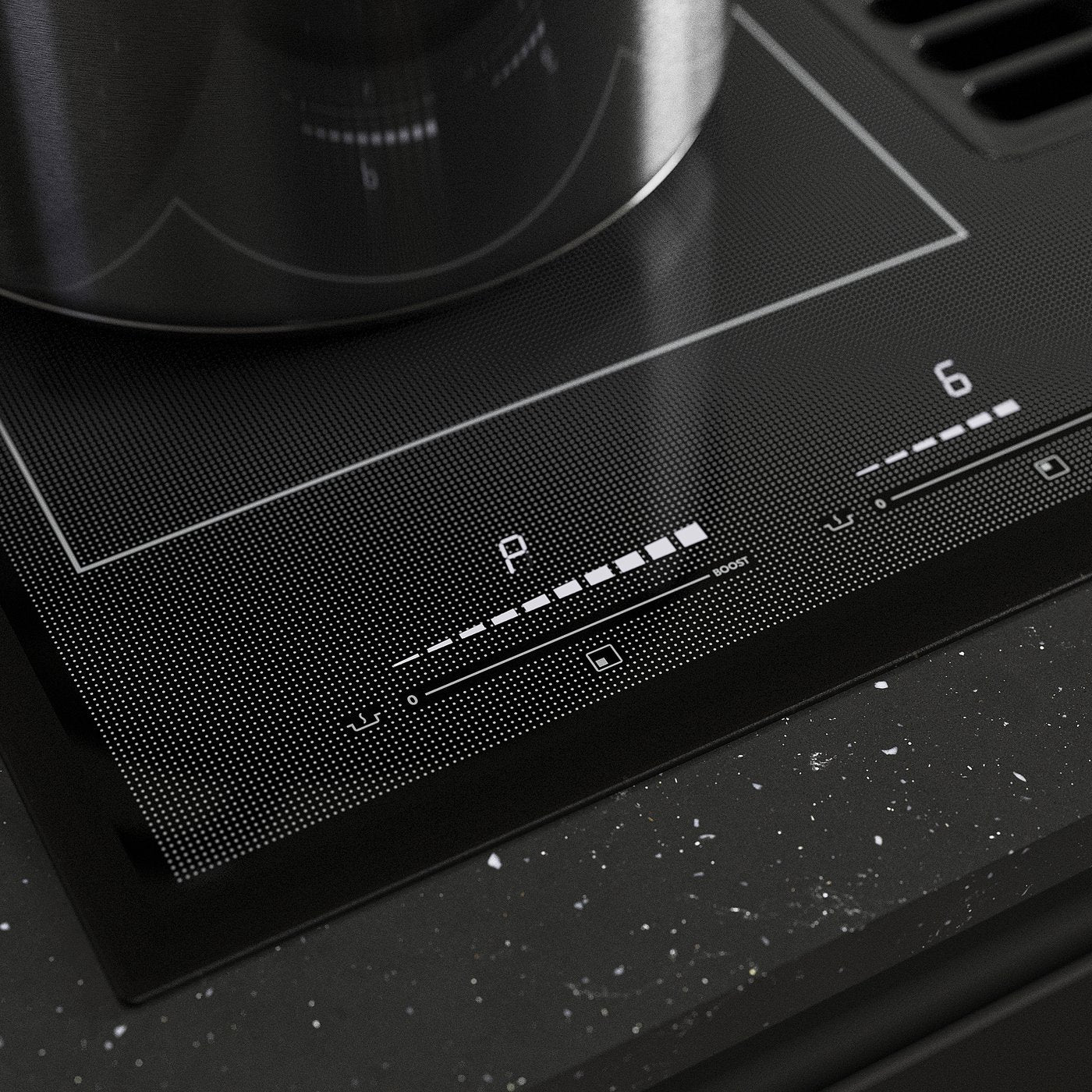

• Touch control with individual sliders let you easily tweak each cooking zone whenever you need. White LED lights keep it sharp and stylish.

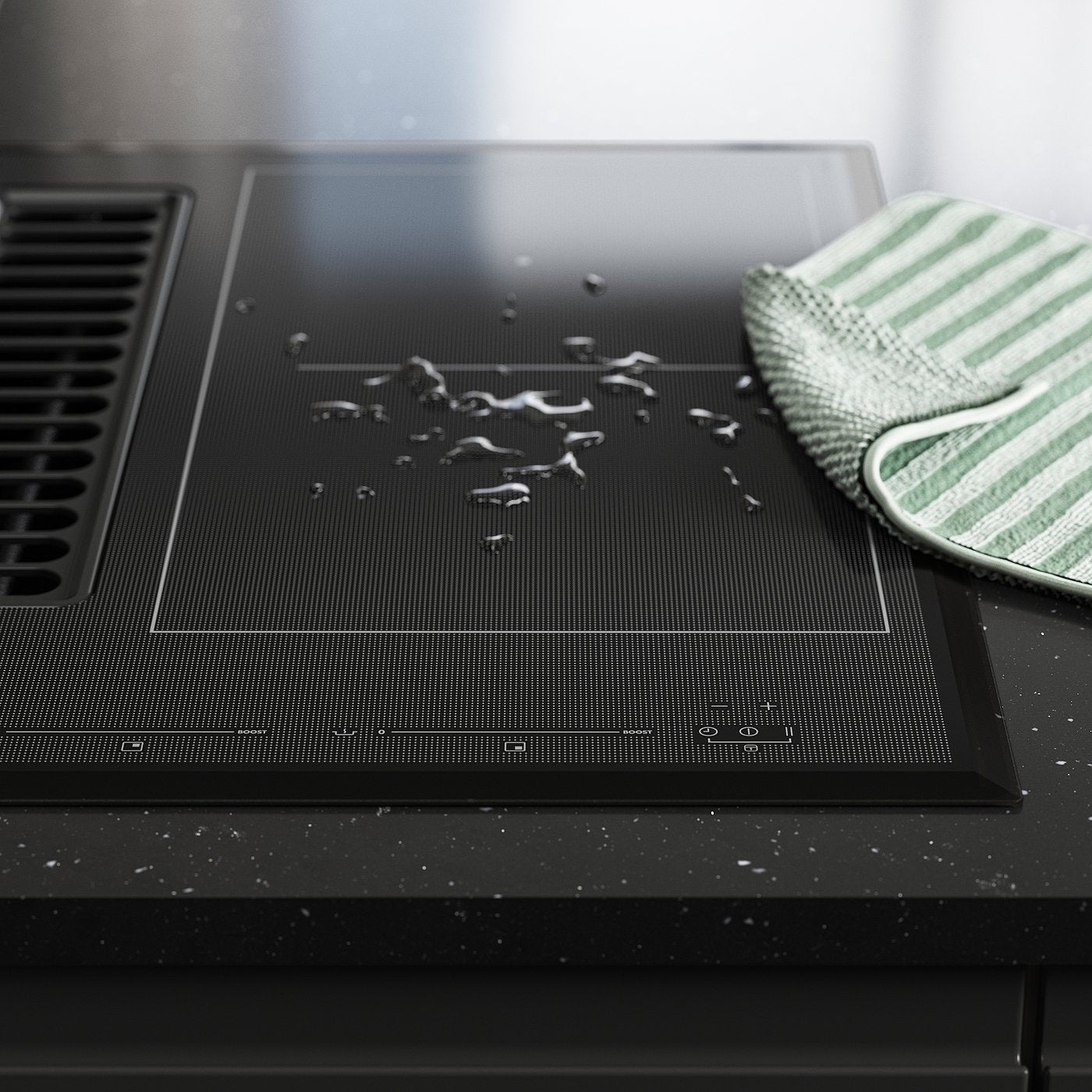

• Silk guard coating means you can slide pots and pans without the scraping sound. Just a smooth, scratch-resistant surface that’s easy to clean and quiet to cook on.

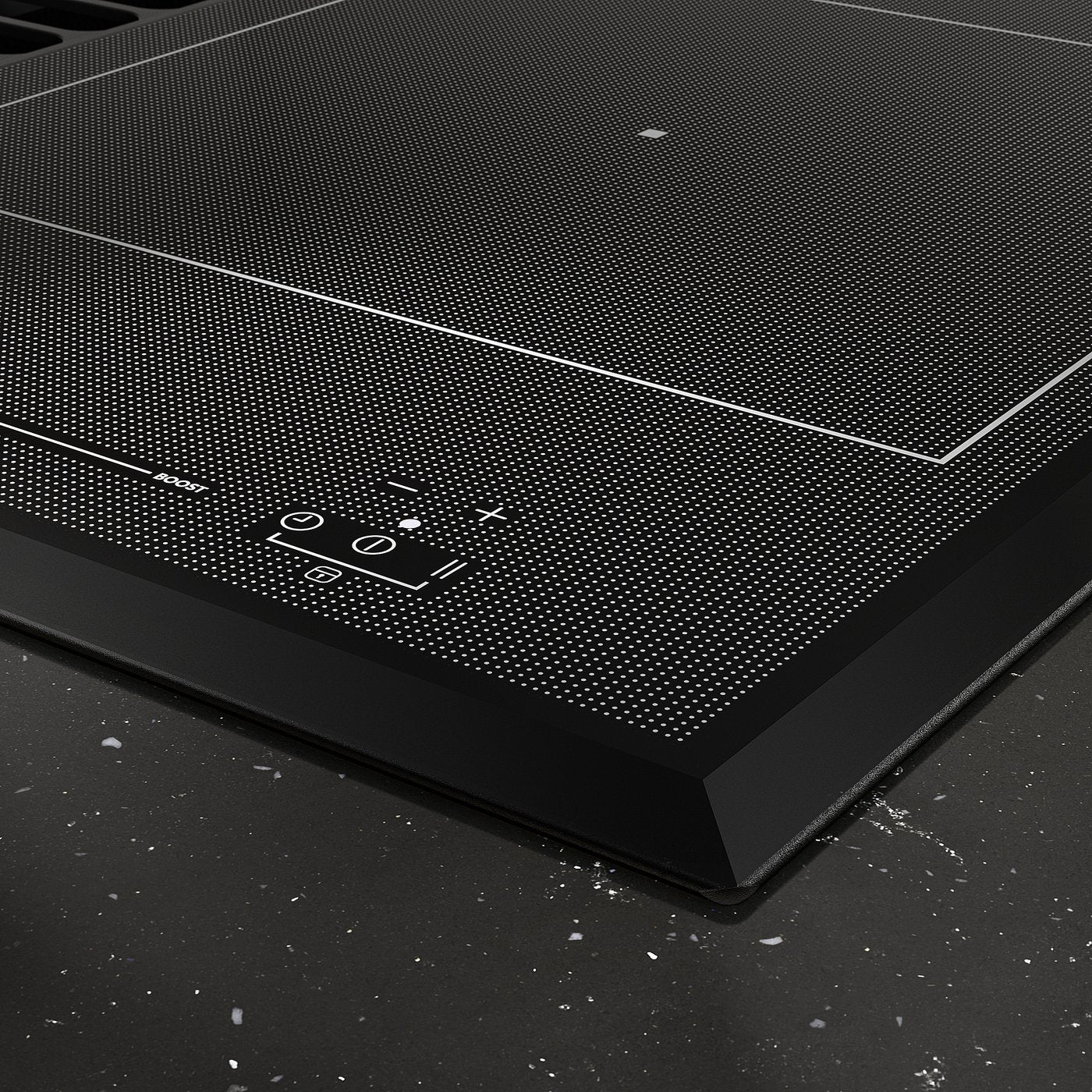

• Bevelled edges add a smooth, stylish finish that harmonises with your worktop – making your kitchen feel more like a cosy living space than just a cooking zone.
• Sleek and multifunctional, this hob reinvents kitchen design. It lets you cook like a pro for any occasion while hanging out with friends and family – making home life more fun and connected.

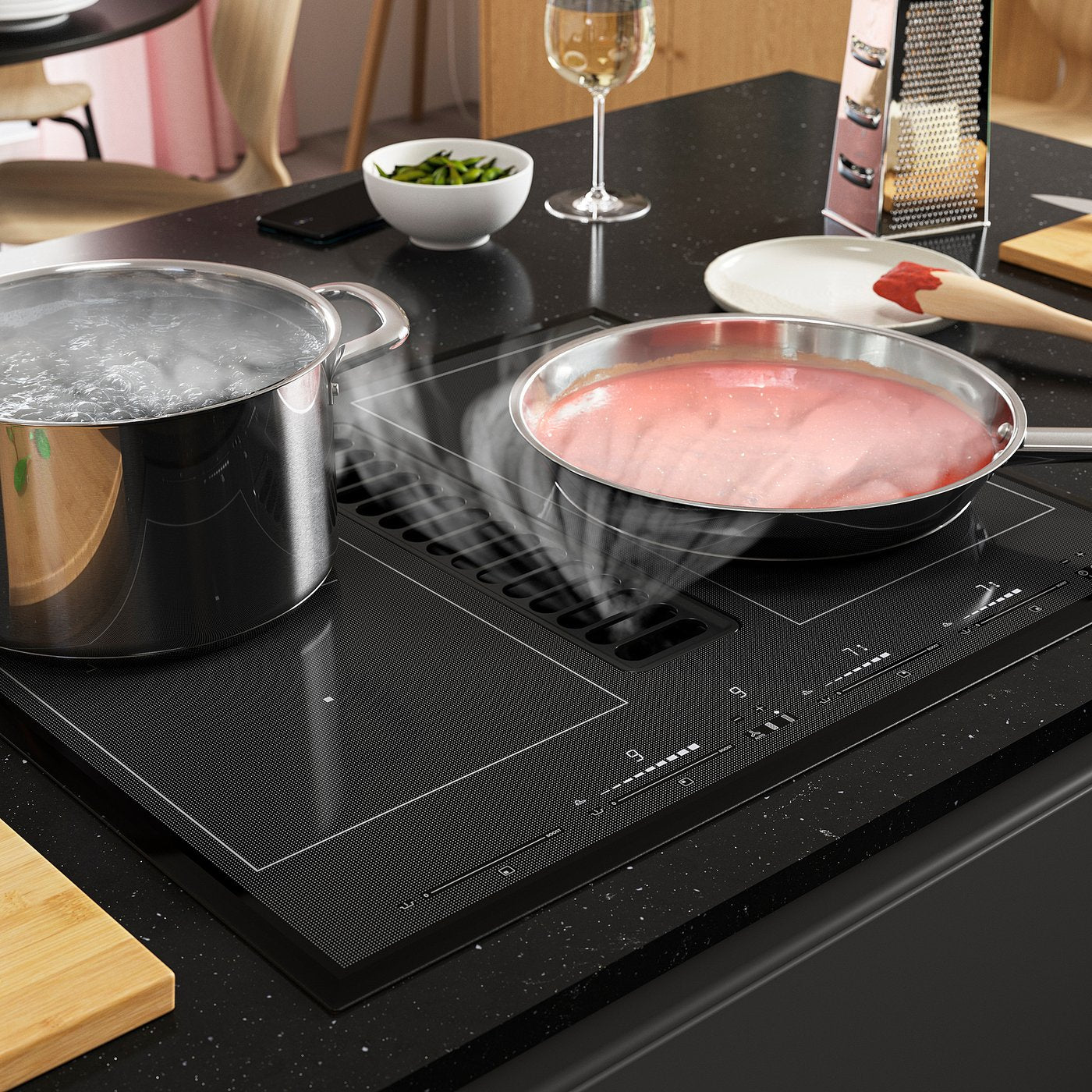

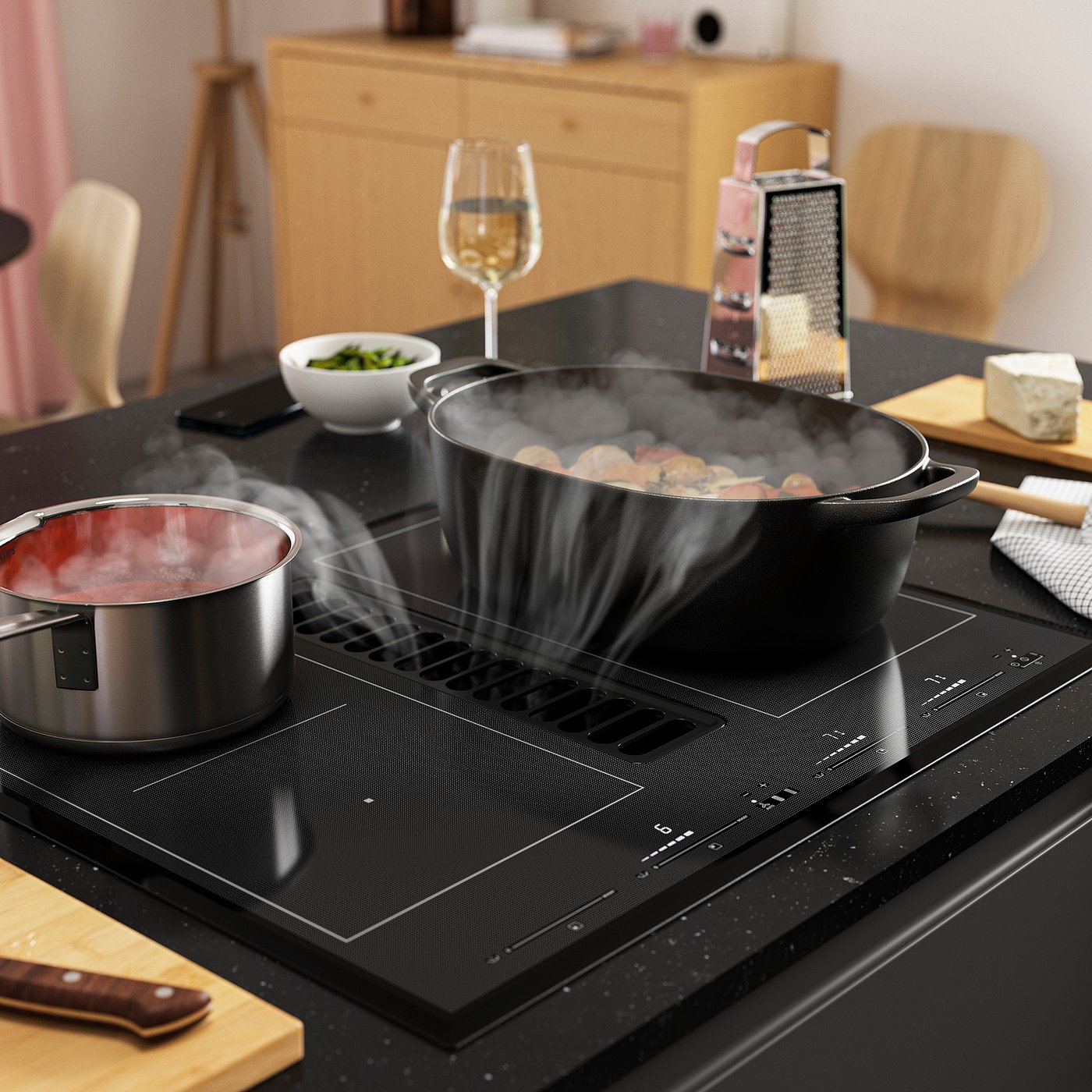

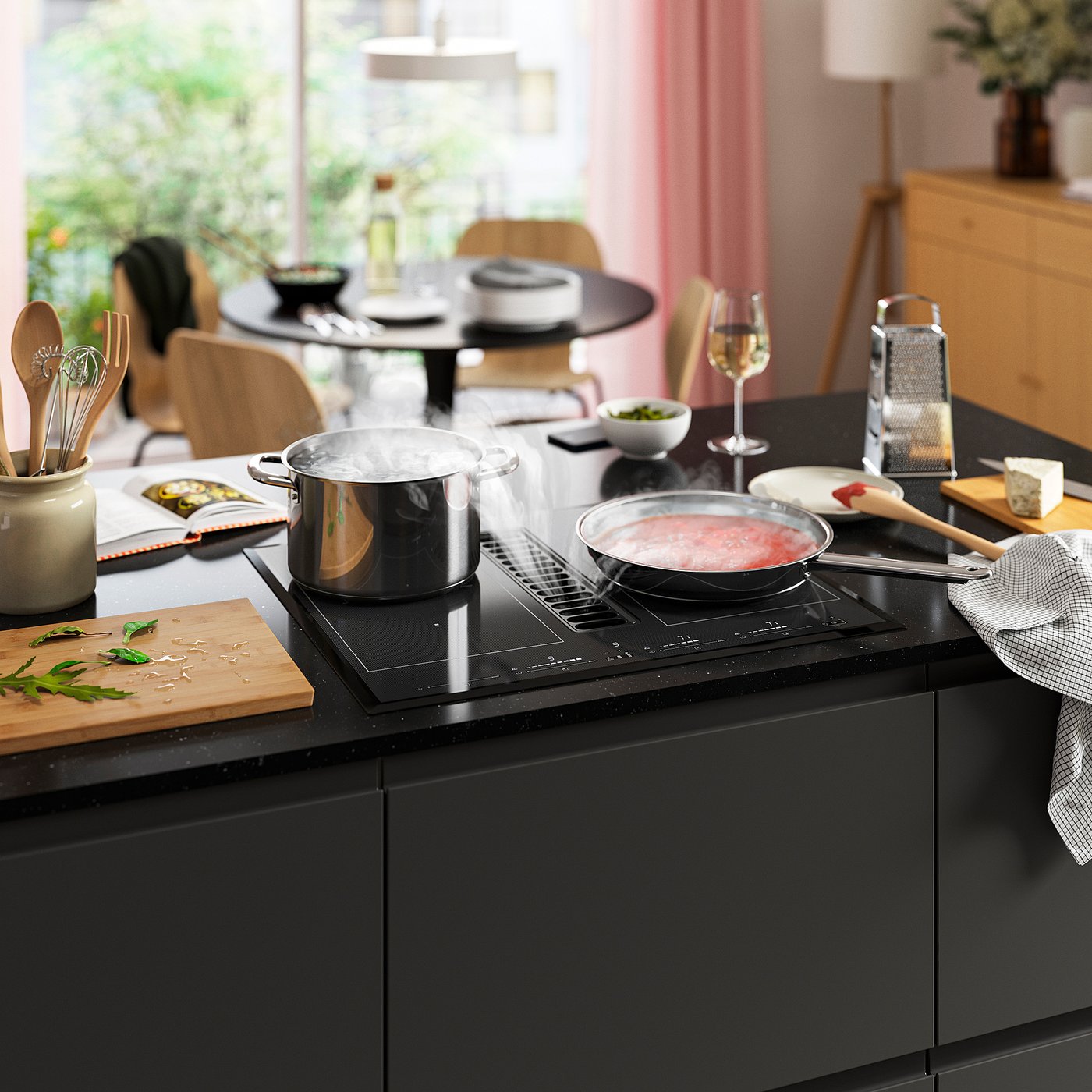

• A hob with built-in extractor lets you design your kitchen your way – lively island, cosy peninsulat or sleek wall setup. Cook with friends and enjoy the view, no bulky hood in the way.

• Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
• You will find complete information about the care of this product under the tab Assembly instructions & documents.
• Remove stains and food residue after each use using a cloth damped with warm water and a mild detergent.

Test results and compliance

• This product bears the CE mark.

Safety information

• This product bears the Serbian mark of conformity.

Functions (only white goods)

• Induction hob with integrated extractor.
• Brushless motor ensures quiet operation.
• 9 power levels plus built-in booster.
• Touch control with individual sliders.
• Child lock.
• Timer and safety shut-off to prevent overboiling or dry cooking.
• Silent inc coating.
• Double bridge for 2 extra-large cooking spots.
• To activate the bridge function, the pot or pan must be 19-23 cm, covering the centre points of both cooking zones.
• Auto-melt function.
• Auto-simmer and slow-cooking function.
• Residual heat display for the 4 cooking areas.
• Autostart-fan with 9 speed options and booster.
• The fan increases automatically as you raise the heat on the hob.

Compl. assembly information

• Connects directly to the ventilation duct or recirculates into the room air using NYTTIG recirculation kit for hob.
• For installation in a base cabinet along a wall, in a kitchen island or as part of a peninsula solution.
• For kitchen island installations, connect directly to a ventilation duct or recirculate air back into the room via the plinth or rear of the island cabinet using NYTTIG recirculation kit for hob.
• Cord/cable not included. Wired-in installation. Installation must be made by a qualified electrician or specialist.
• You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.

Performance (only white goods)

• Connection rating: 7400W.
• Voltage: 220-240V/380-415V.
• Current: 2x16A or 1x32A.
• 4 induction zones, each with power boost function.
• Right front: 21x19,1 cm – 2100W, booster 3000W.
• Left front: 21x19,1 cm – 2100W, booster 3000W.
• Left rear: 21x19,1 cm – 2100W, booster 3000W.
• Right rear: 21x19,1 cm – 2100W, booster 3000W.
• Noise level in exhaust mode ranges from 43 dB(A) to 68 dB(A), 71 dB(A) in booster mode.
• Noise level in recirculation mode ranges from 42 dB(A) to 71 dB(A), 73 dB(A) in booster mode.
• Extraction rate: 200–600 m³/h, booster 680 m³/h in extraction mode.
• Extraction rate: 135-420 m³/h, booster 480 m³/h in recirculation mode.
• Grease filtering efficiency: Class B.

White goods information

• Water that runs down the fan is collected in a water container that is easy to remove and empty.

Acc. included (only white goods)

• 1 dishwasher-safe grease filter included, with a change indicator that reminds you to wash it after 40 hours of use.
• 2 charcoal filters for recirculation mode included, with a change indicator that reminds you to replace them after 160 hours of use.

Other information

• IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com

Width: 60.0 cm Depth: 52.0 cm Height: 52.4 cm Cut-out width: 56.0 cm Cut-out depth: 49.0 cm Weight: 16.20 kg
