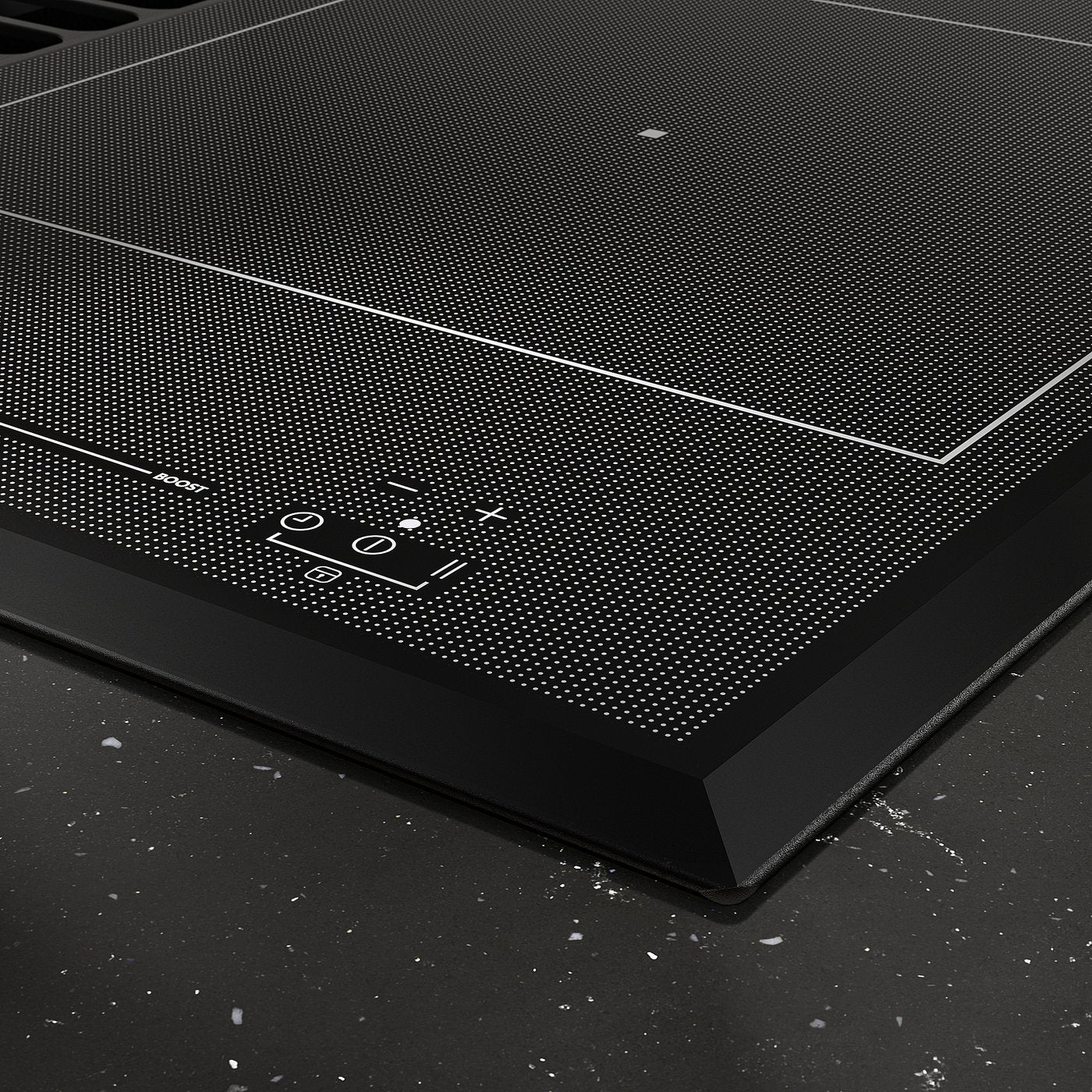

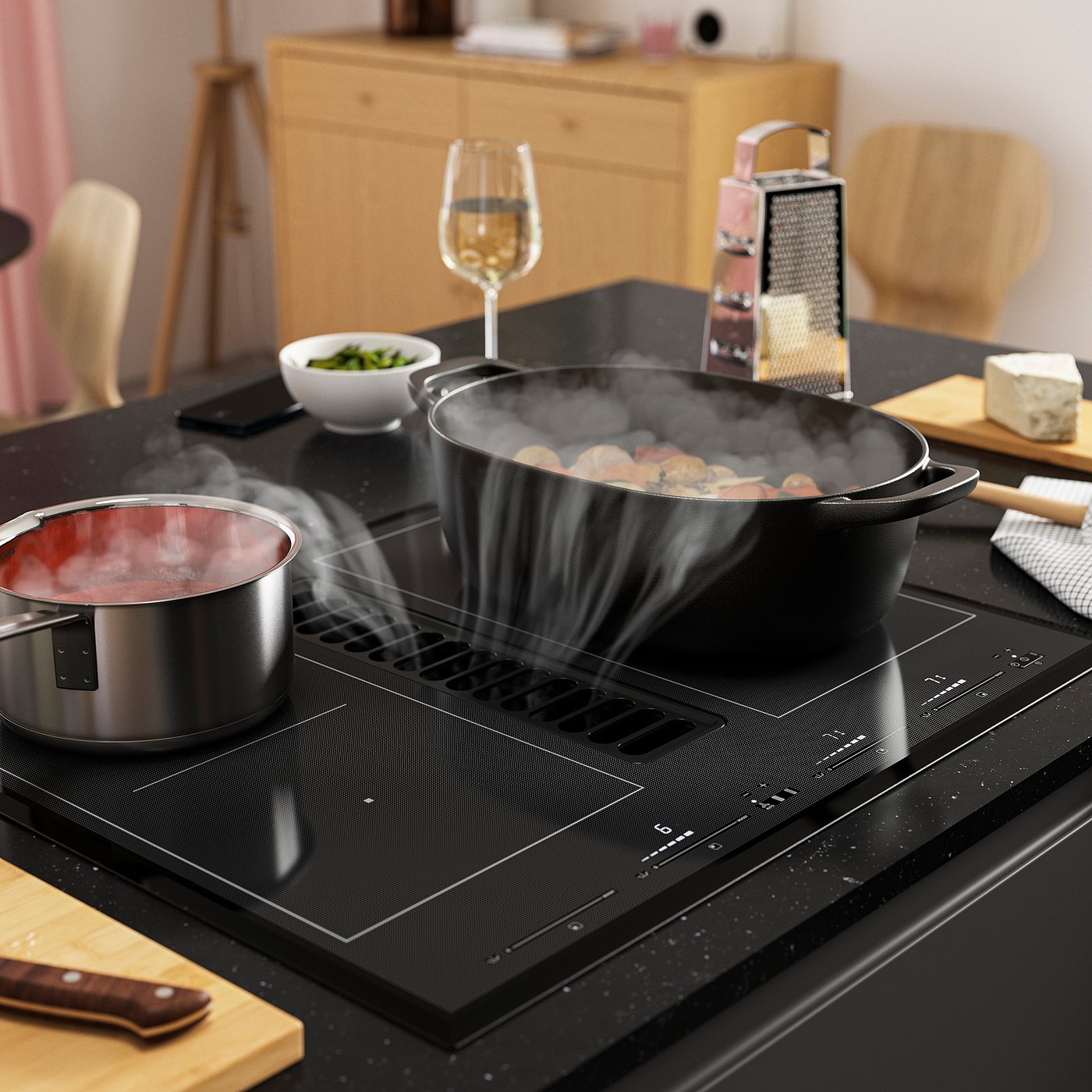

TÄCKNAN induction hob IKEA 500 with built-in extractor keeps views open and chats flowing – no bulky hood in sight. The bevel-edge design blends in beautifully, giving you room to create and connect.

Key Features

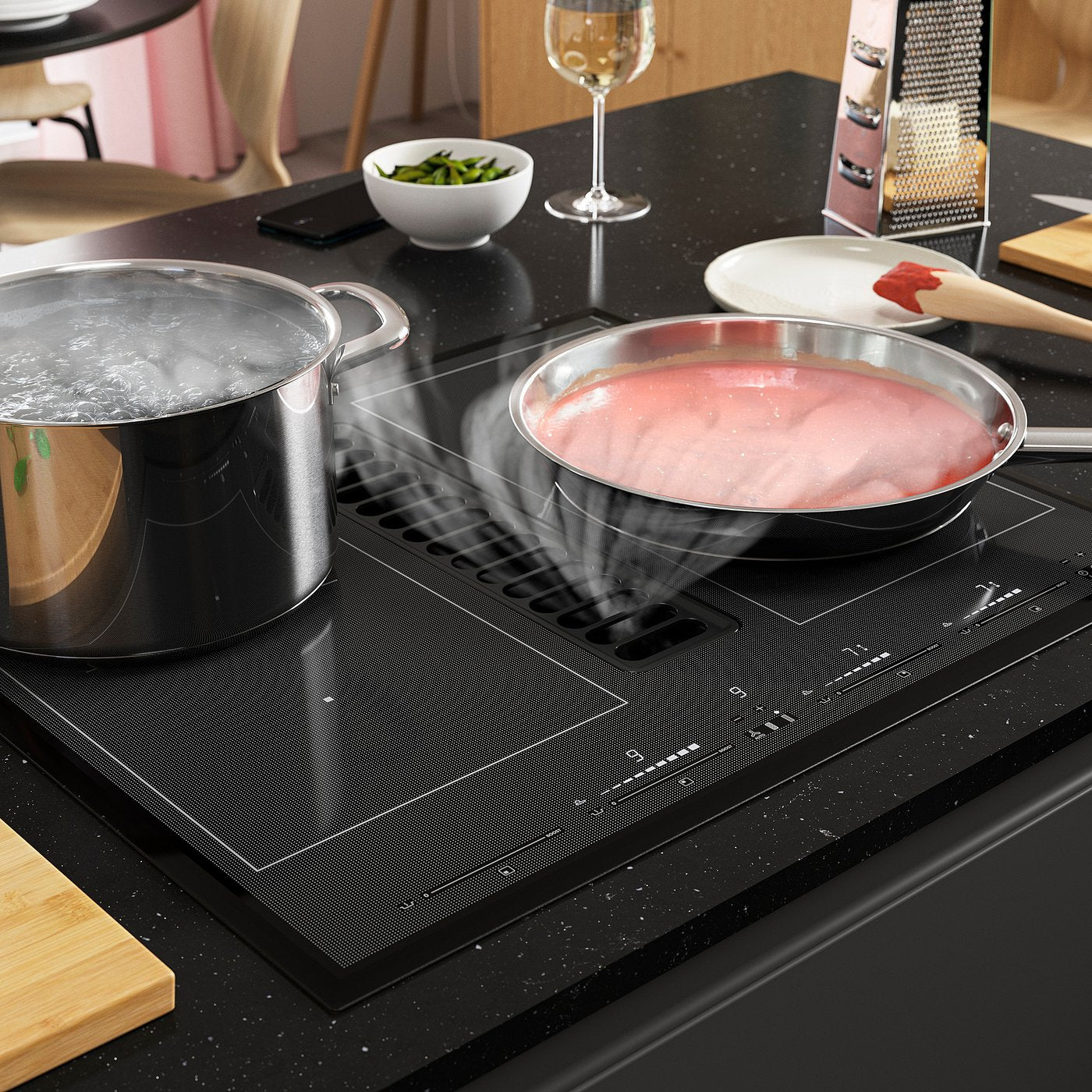

• Helps clear steam and cooking smells, so your kitchen stays fresh and inviting. Designed for induction hobs with built-in extractors and connects to your existing ventilation system.
• Sleek and multifunctional, this hob reinvents kitchen design. It lets you cook like a pro for any occasion while hanging out with friends and family – making home life more fun and connected.

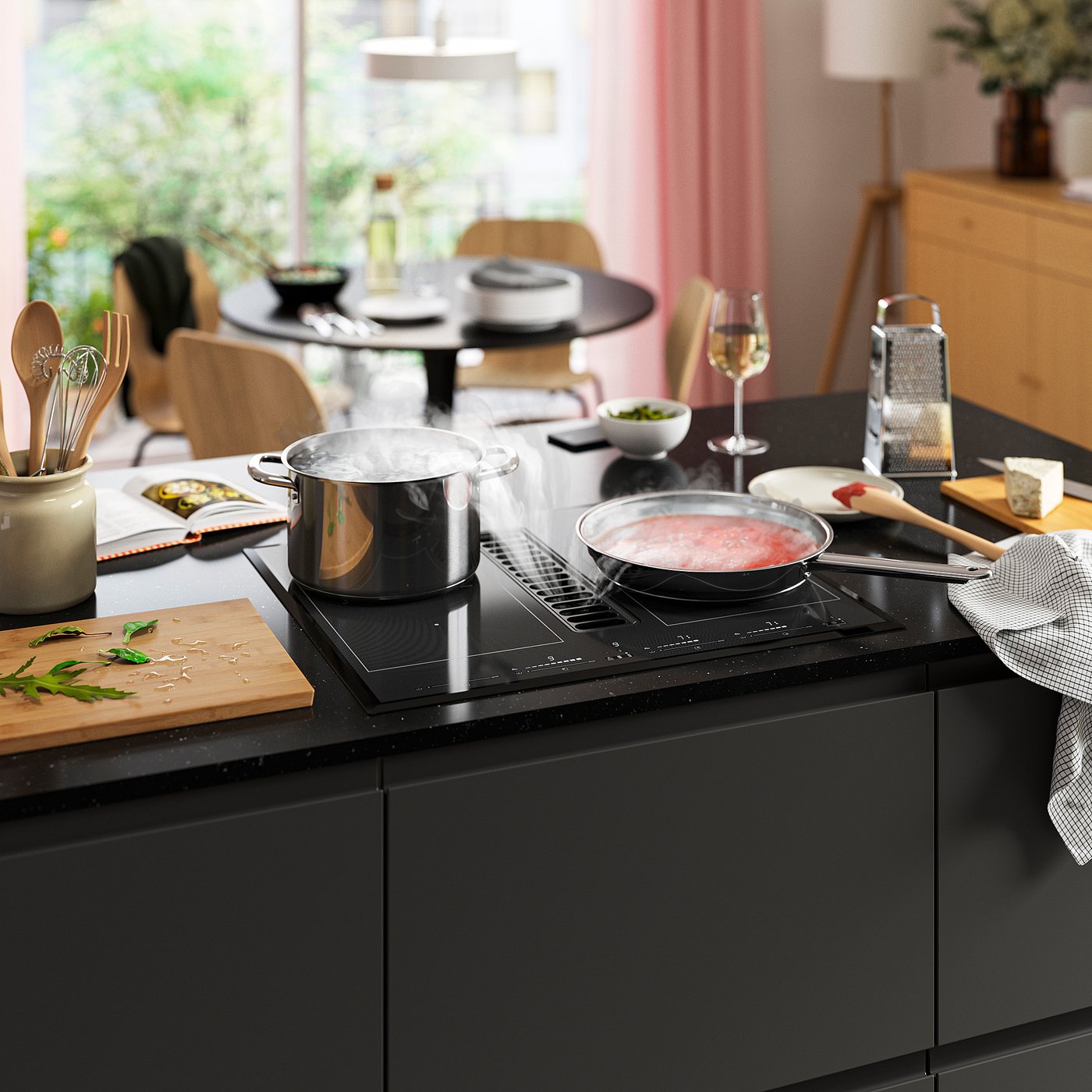

• A hob with built-in extractor lets you design your kitchen your way – lively island, cosy peninsulat or sleek wall setup. Cook with friends and enjoy the view, no bulky hood in the way.
• Induction hobs are extremely energy efficient, fast and precise as induction technology transfers energy directly into magnetic cookware.
• The induction zones transfer heat directly to the base of the pan and cool down quickly when the pan is removed. This gives you greater control over the temperature when you cook and also prevents food from burning to the pan and the hob surface.

• Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
• You will find complete information about the care of this product under the tab Assembly instructions & documents.

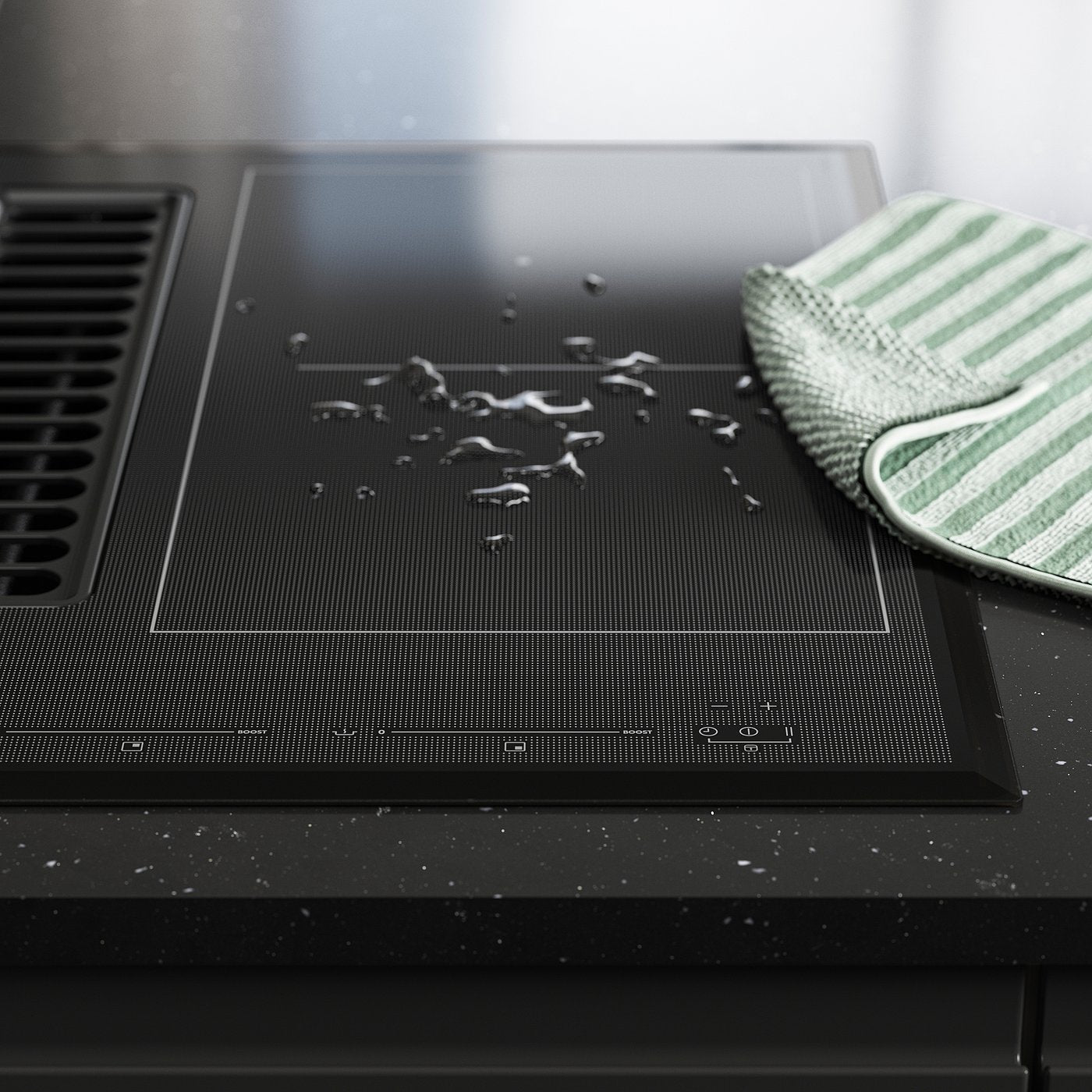

• Remove stains and food residue after each use using a cloth damped with warm water and a mild detergent.

Test results and compliance

• This product bears the CE mark.

Safety information

• This product bears the Serbian mark of conformity.

Functions (only white goods)

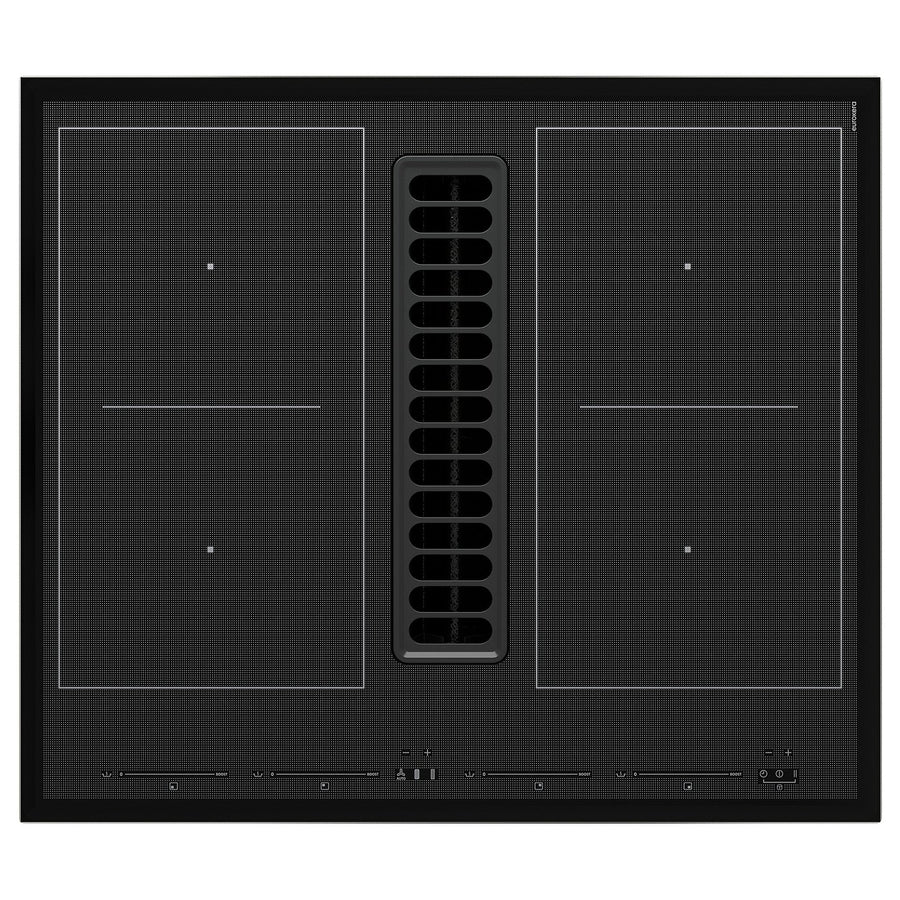

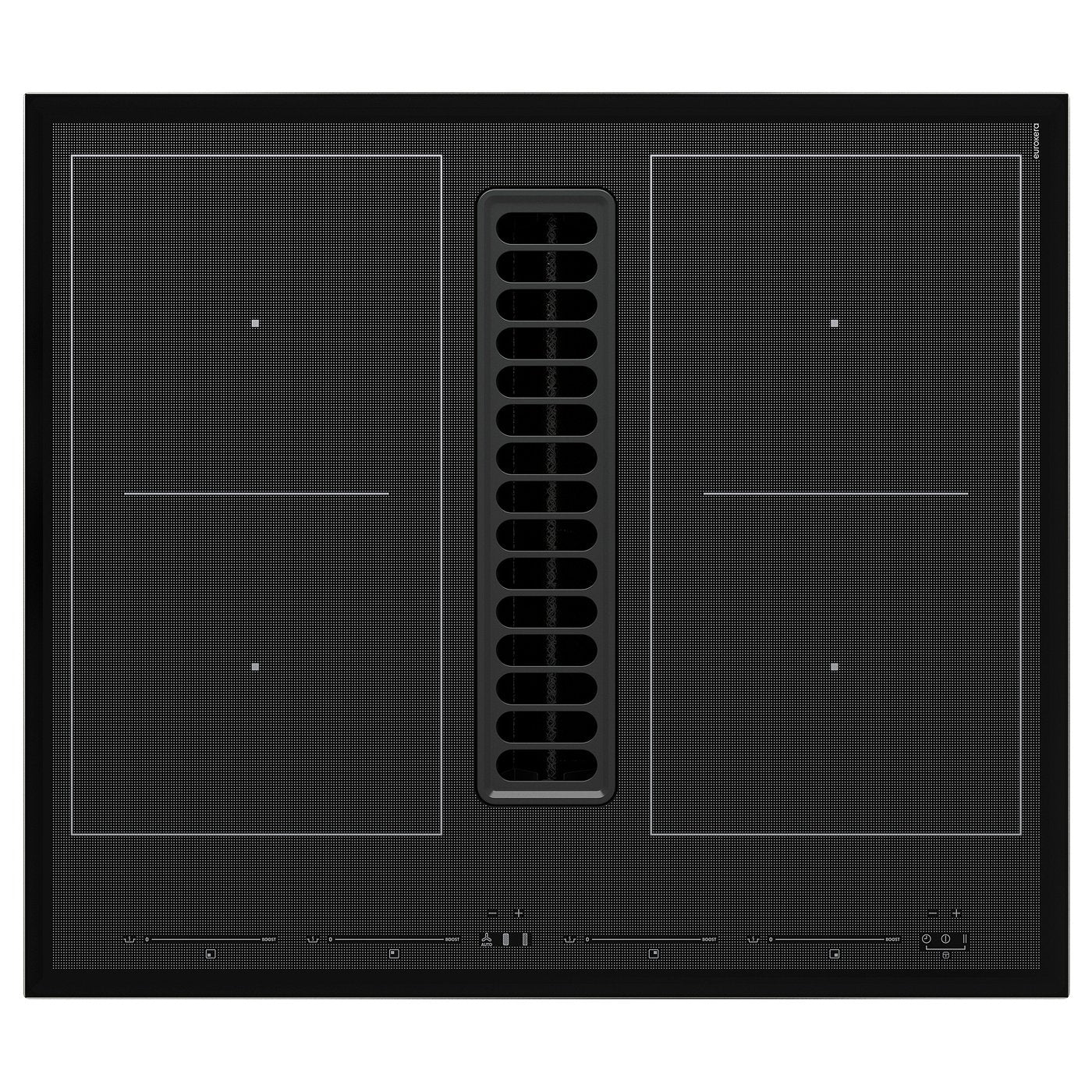

• Induction hob with integrated extractor.
• Brushless motor ensures quiet operation.

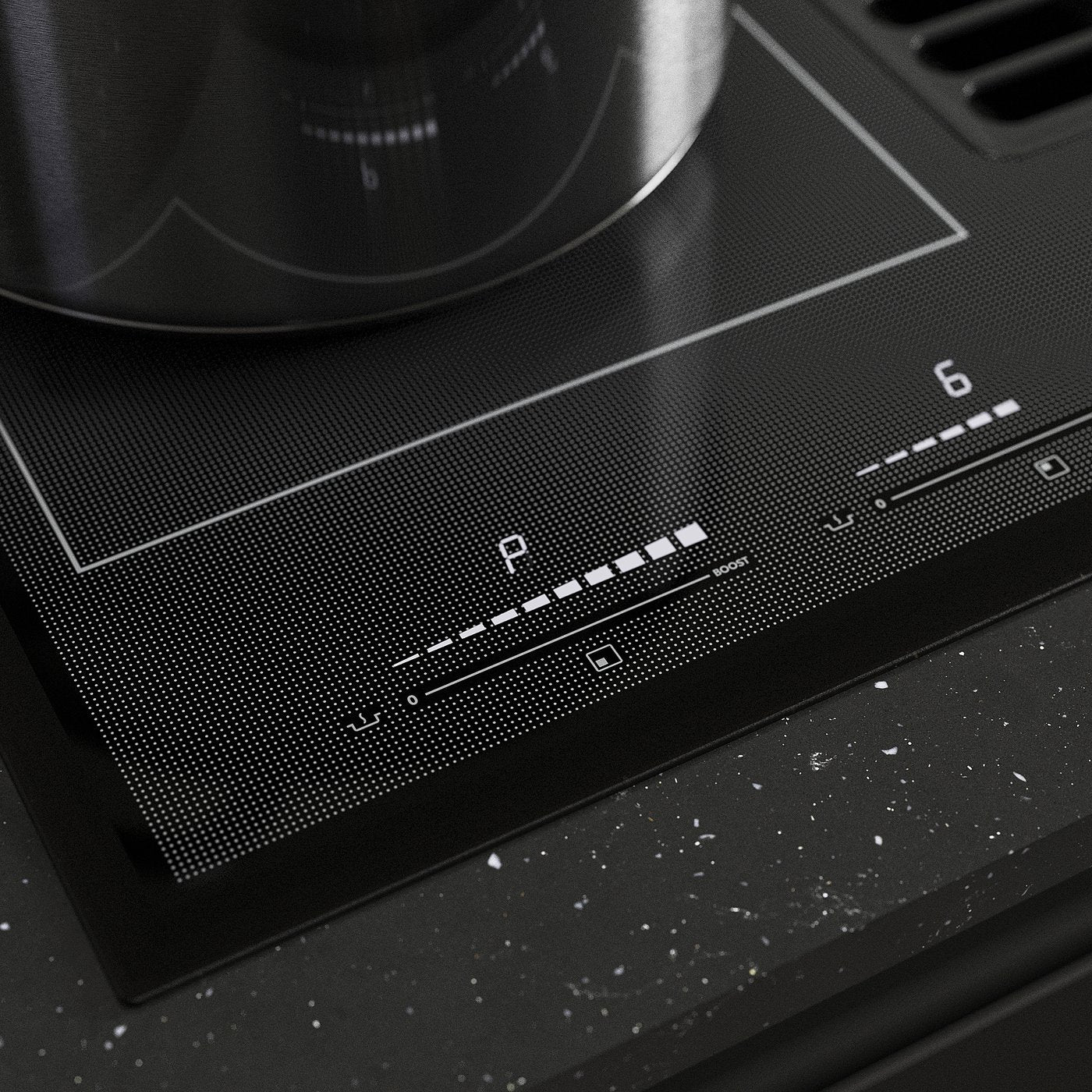

• Touch control with individual sliders.
• Child lock.
• Timer and safety shut-off to prevent overboiling or dry cooking.
• Silent inc coating.
• Double bridge for 2 extra-large cooking spots.
• To activate the bridge function, the pot or pan must be 19-23 cm, covering the centre points of both cooking zones.
• 9 power levels plus built-in booster.
• Auto-melt function.
• Auto-simmer and slow-cooking function.
• Residual heat display for the 4 cooking areas.
• Autostart-fan with 9 speed options and booster.
• The fan increases automatically as you raise the heat on the hob.

Compl. assembly information

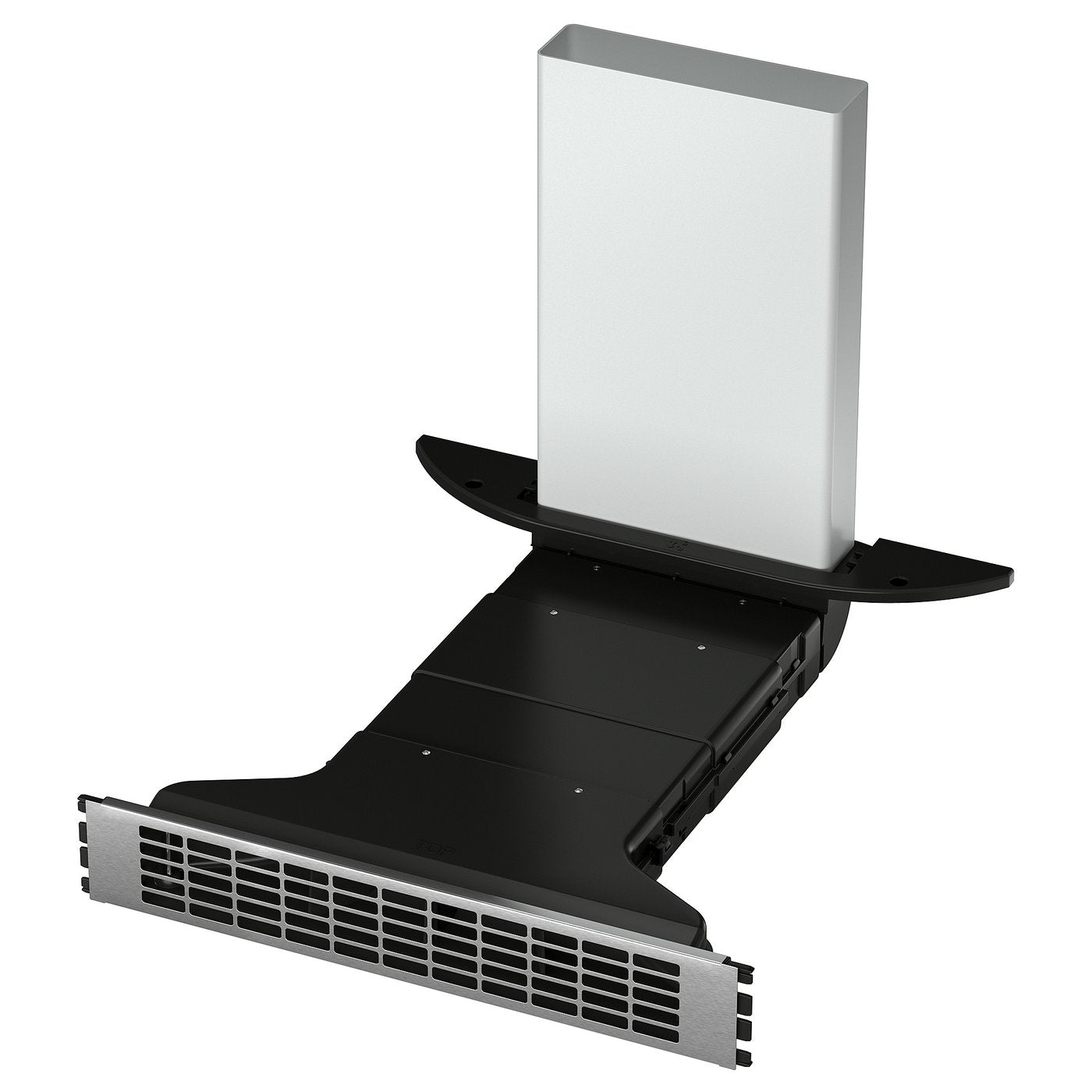

• Connects directly to the ventilation duct or recirculates into the room air using NYTTIG recirculation kit for hob.
• For installation in a base cabinet along a wall, in a kitchen island or as part of a peninsula solution.

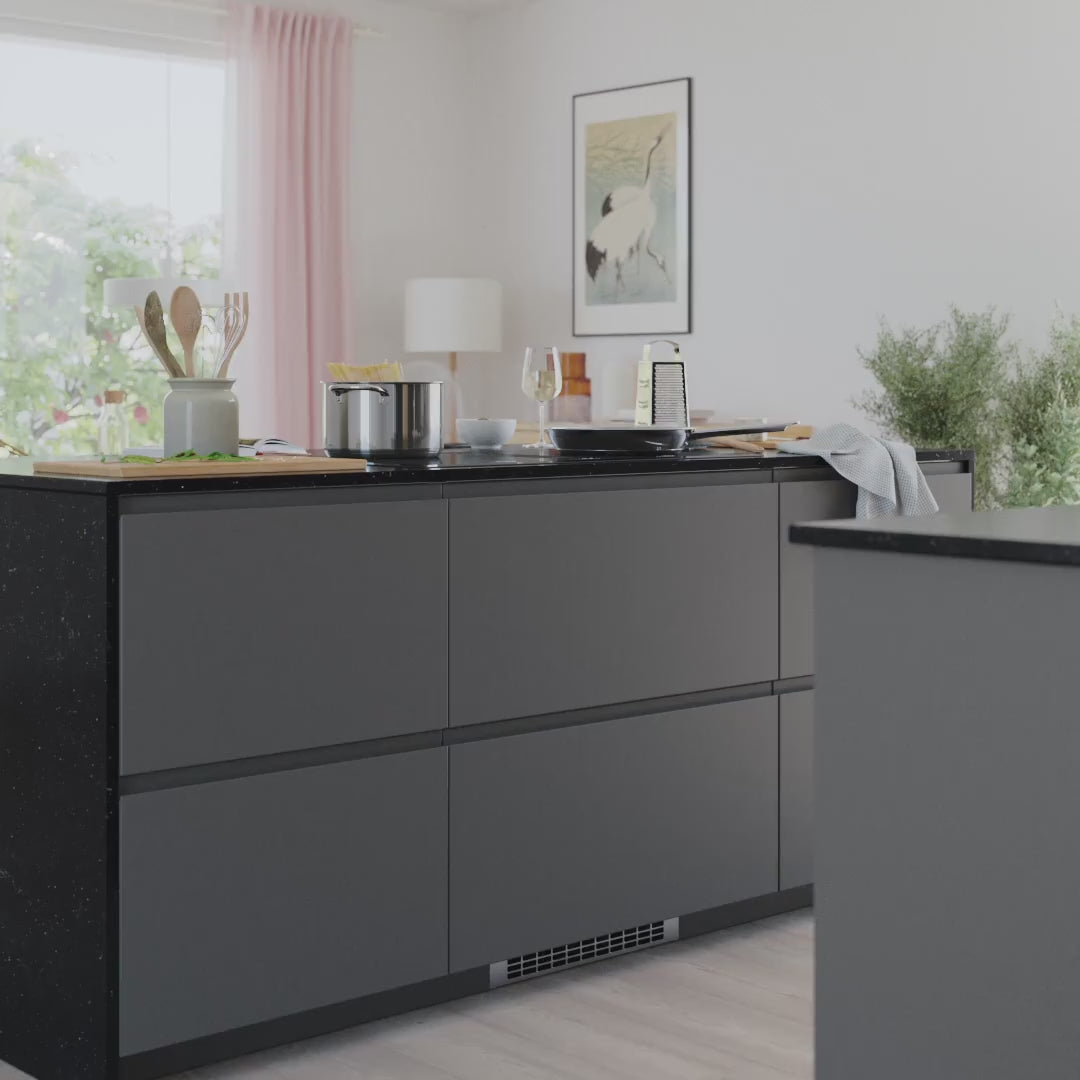

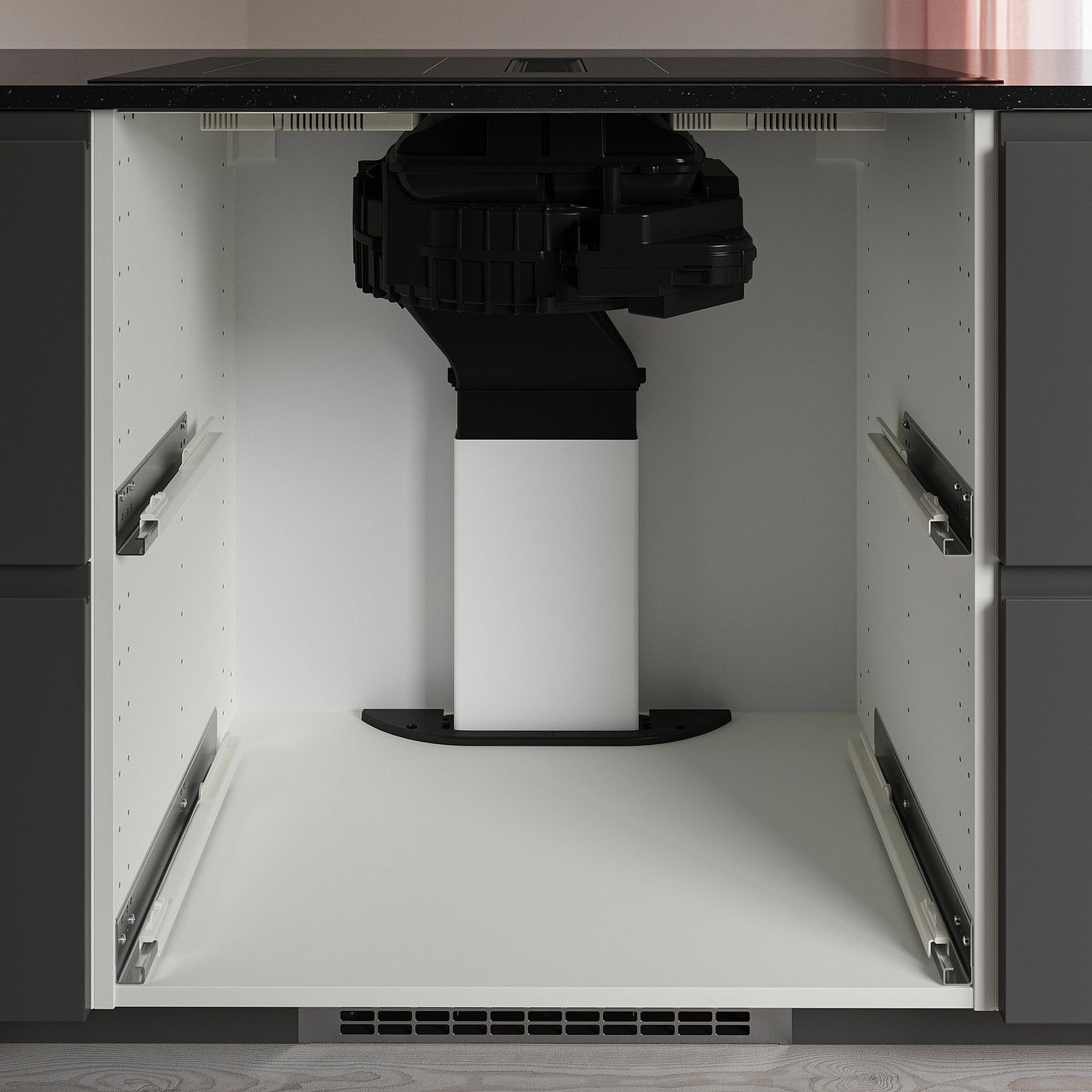

• For kitchen island installations, connect directly to a ventilation duct or recirculate air back into the room via the plinth or rear of the island cabinet using NYTTIG recirculation kit for hob.
• Cord/cable not included. Wired-in installation. Installation must be made by a qualified electrician or specialist.
• You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.

Performance (only white goods)

• Connection rating: 7400W.
• Voltage: 220-240V/380-415V.
• Current: 2x16A or 1x32A.
• 4 induction zones, each with power boost function.
• Right front: 21x19,1 cm – 2100W, booster 3000W.
• Left front: 21x19,1 cm – 2100W, booster 3000W.
• Left rear: 21x19,1 cm – 2100W, booster 3000W.
• Right rear: 21x19,1 cm – 2100W, booster 3000W.
• Noise level in exhaust mode ranges from 43 dB(A) to 68 dB(A), 71 dB(A) in booster mode.
• Noise level in recirculation mode ranges from 42 dB(A) to 71 dB(A), 73 dB(A) in booster mode.
• Extraction rate: 200–600 m³/h, booster 680 m³/h in extraction mode.
• Extraction rate: 135-420 m³/h, booster 480 m³/h in recirculation mode.
• Grease filtering efficiency: Class B.

White goods information

• Water that runs down the fan is collected in a water container that is easy to remove and empty.

Acc. included (only white goods)

• 1 dishwasher-safe grease filter included, with a change indicator that reminds you to wash it after 40 hours of use.
• 2 charcoal filters for recirculation mode included, with a change indicator that reminds you to replace them after 160 hours of use.

Other information

• IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
