This eye-catching angled hood in black creates a spacious feeling around the hob. It comes with a sleek, easy-clean glass surface and LED lighting that effectively illuminates the cooking area.

Key Features

• 5-year guarantee, free of charge. Read about the terms in the guarantee brochure.
• 3 speed settings allow you to increase or decrease the hood’s power at the push of a button, depending on your cooking needs.
• LED light source included; effectively illuminates the cooking surface.
• The inclined design creates a spacious feel around the hob and gives you extra headroom for easy cooking.
• Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.

• You will find complete information about the care of this product under the tab Assembly instructions & documents.
• Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
• Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

Test results and compliance

• This product bears the CE mark.

Safety information

• This product bears the Serbian mark of conformity.

Warning

• WARNING! Falling hazard – to reduce the risk of this product falling down, it must be securely anchored. Use suitable screws and plugs for your home. If you are uncertain, seek professional advice.

White goods information

• Wall mounted extractor hood with 3 different speeds.

Performance (only white goods)

• Extraction rate in exhausting mode: 450 m³/h.
• Noise level at max. exhaust speed: 60 dB (A).
• Extraction rate in re-circulation mode: 370 m³/h.
• Noise level at max. re-circulation speed: 73 dB (A).
• Voltage: 220-240V.

Compl. assembly information

• A min. 222 cm ceiling height is required for recirculation installation, though it may vary with worktop thickness, hob type or recirculation setup (with/without grid/chimney). See assembly instructions.
• For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
• For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 500.
• You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
• Please note: To avoid damaging the hood’s glass front, make sure it is fully closed during use and before opening adjacent wall cabinet doors.
• Note that the noise level may increase or decrease depending on how the extractor hood is installed. See assembly instructions for more details.

Sold separately

• Flexible pipe for fan and charcoal filter sold separately.

Other information

• IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com

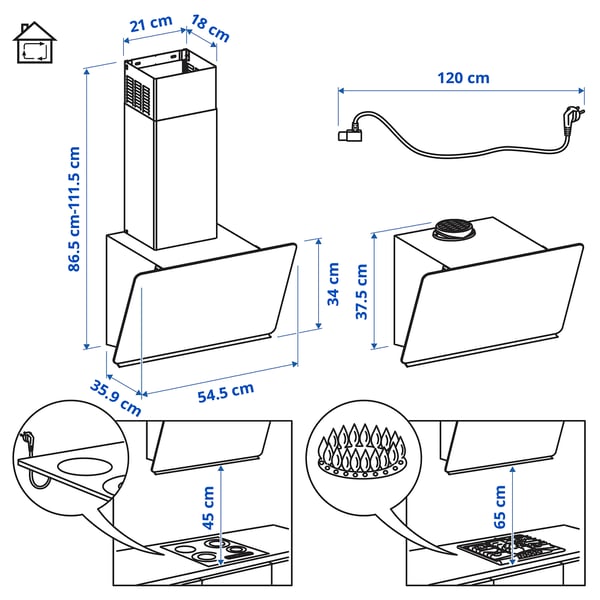

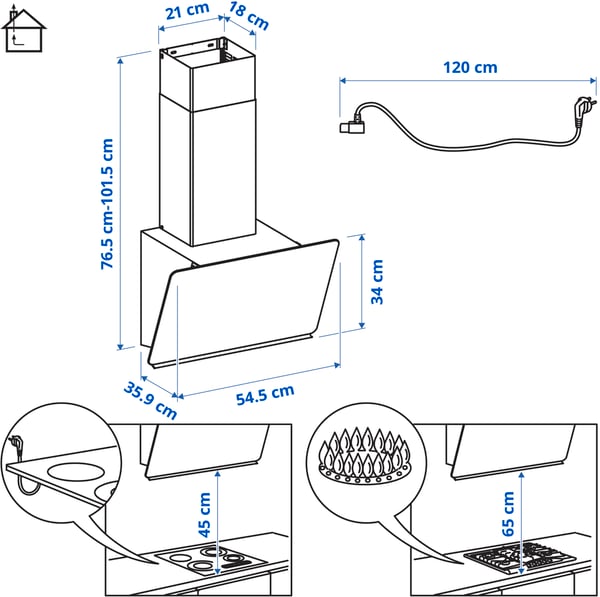

Width: 54.5 cmDepth: 35.9 cmHeight: 34.0 cmMinimum extraction height: 76.5 cmMaximum extraction height: 101.5 cmMinimum recirculation height: 37.5 cmMaximum recirculation height: 111.5 cmChimney width: 21.0 cmChimney depth: 18.0 cmElectric cable length: 1.2 mWeight: 8.00 kgMotor power: 275 W
