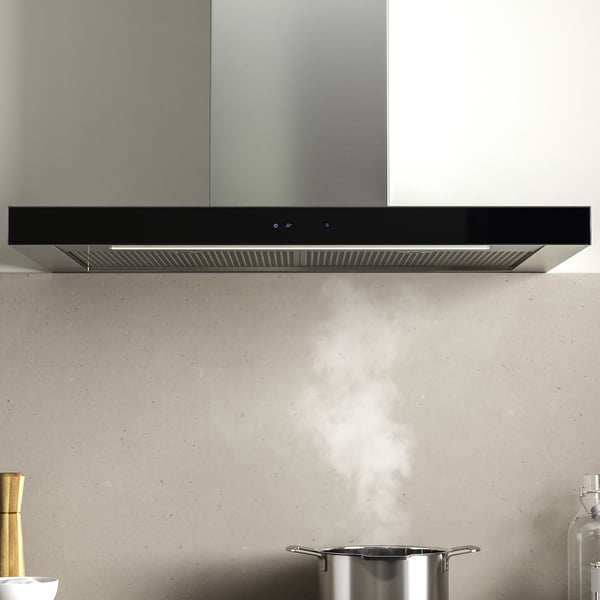

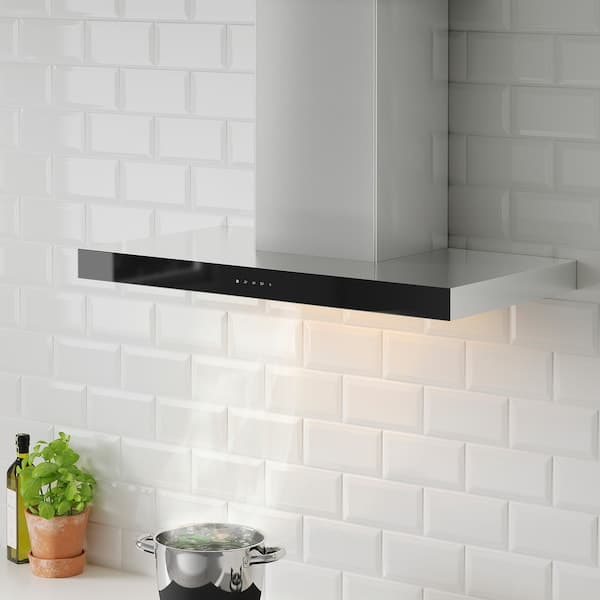

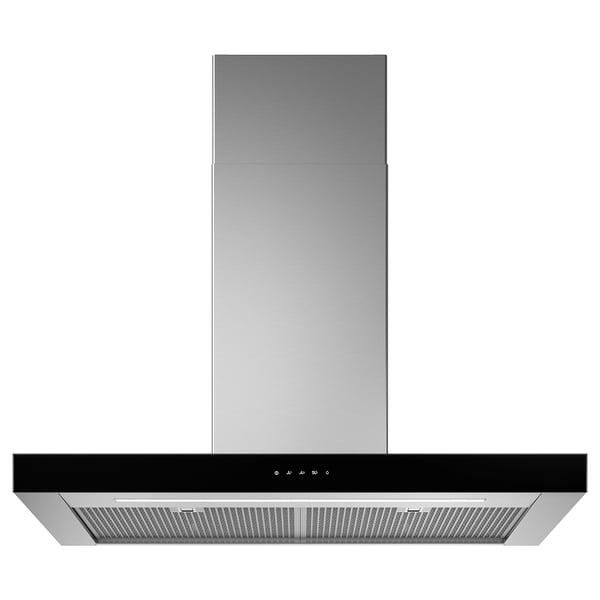

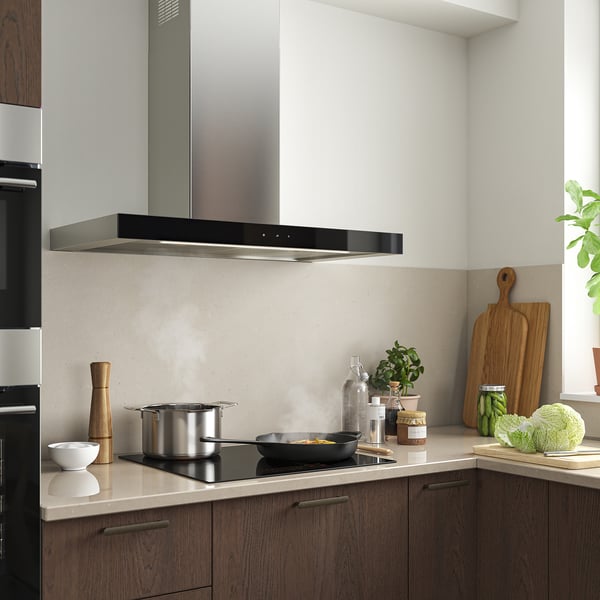

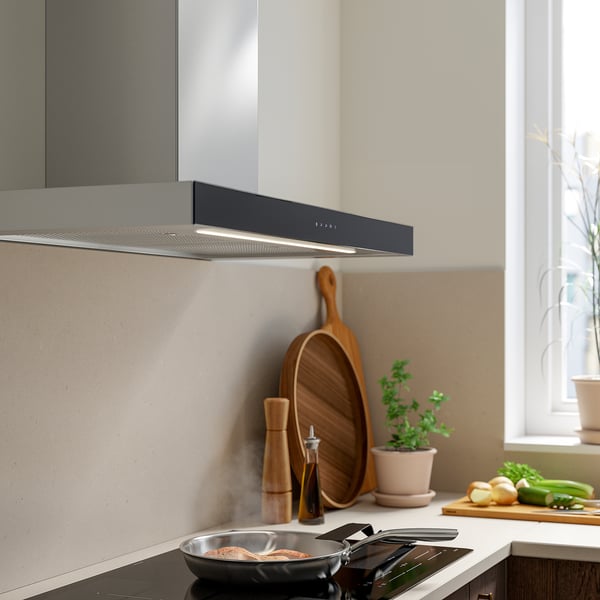

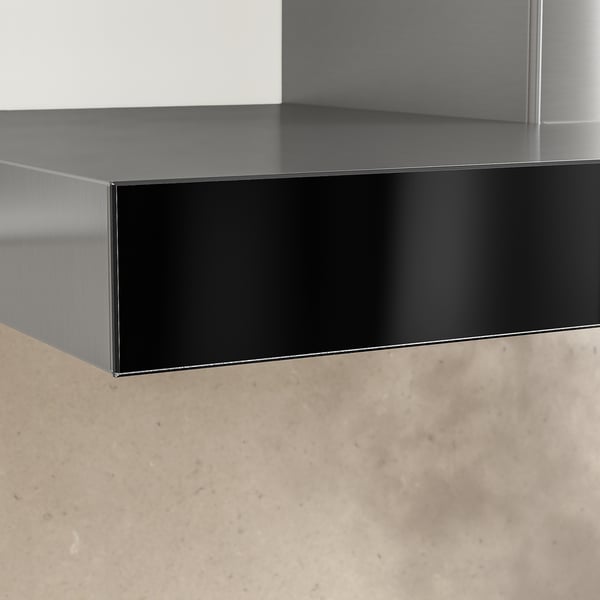

This hood is a powerful performer with a large extraction area. Stainless-steel design with modern appeal enhanced by clean straight lines, sleek touch control panel in glass and dimmable LED lighting.

Key Features

• 5 year guarantee. Read about the terms in the guarantee brochure.
• Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
• 3 speed settings allow you to increase or decrease the hood’s power at the push of a button, depending on your cooking needs.

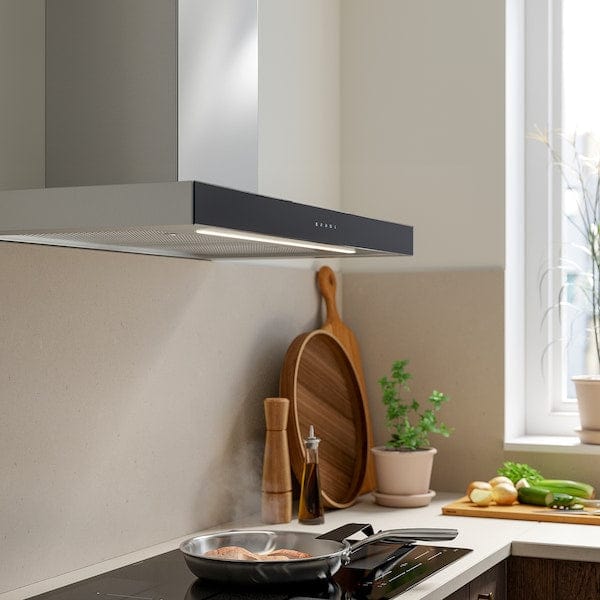

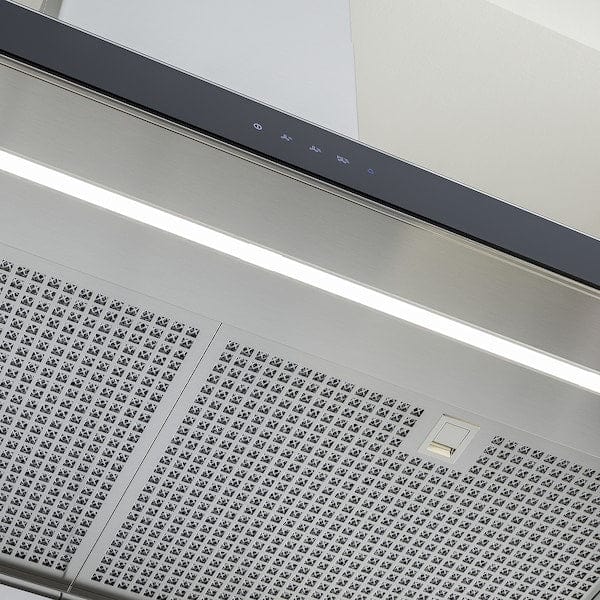

• Dimmable LED strip included; effectively illuminates the cooking surface and provides energy saving.

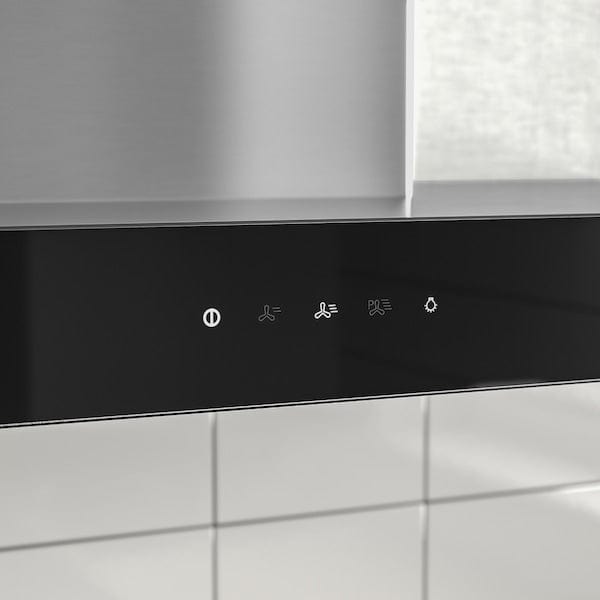

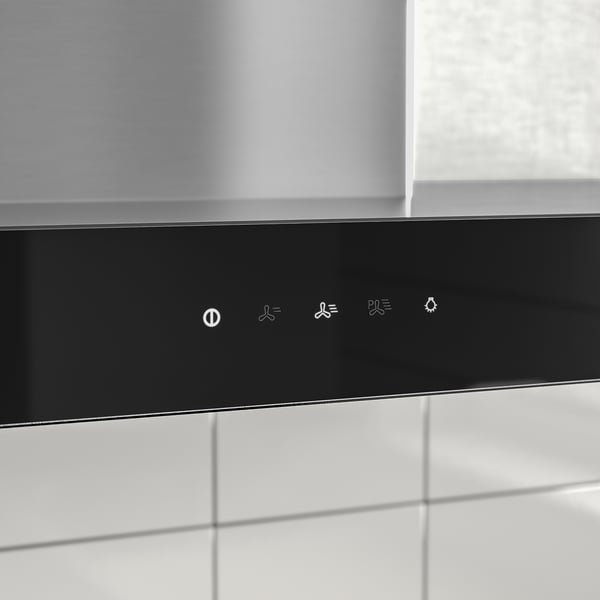

• Touch control panel at front for easy access and use.

• Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
• Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

Test results and compliance

• This product bears the CE mark.
• This product bears the Morocco Conformity Mark.

Safety information

• This product bears the Serbian mark of conformity.

Warning

• WARNING! Falling hazard – to reduce the risk of this product falling down, it must be securely anchored. Use suitable screws and plugs for your home. If you are uncertain, seek professional advice.

Performance (only white goods)

• Extraction rate in exhausting mode with booster function: 700 m³/h.
• Extraction rate in exhausting mode: 380 m³/h.
• Noise level at max. exhaust speed: 59 dB (A).
• Extraction rate in re-circulation mode: 340 m³/h.
• Noise level at max. re-circulation speed: 74 dB (A).
• Voltage: 230V.

Compl. assembly information

• For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
• For recirculation installation: to be completed with NYTTIG TUB 150 flexible pipe and NYTTIG FIL 650 charcoal filter.

White goods information

• Wall mounted extractor hood with 3 different speeds and booster function.

Sold separately

• Flexible pipe for fan and charcoal filter sold separately.

Other information

• IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com

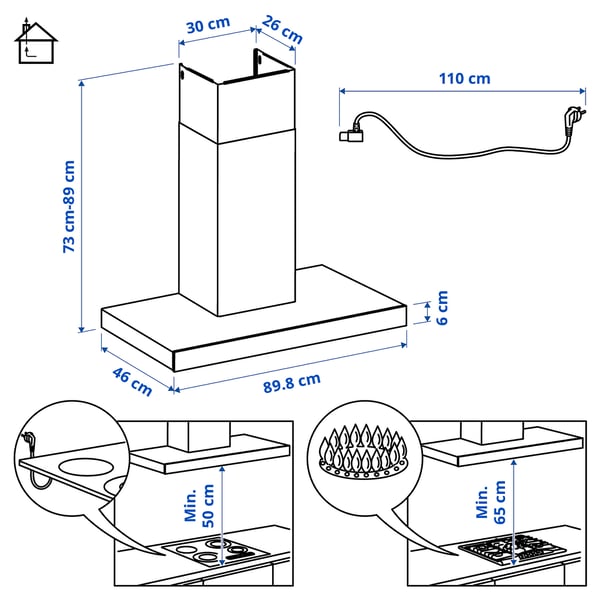

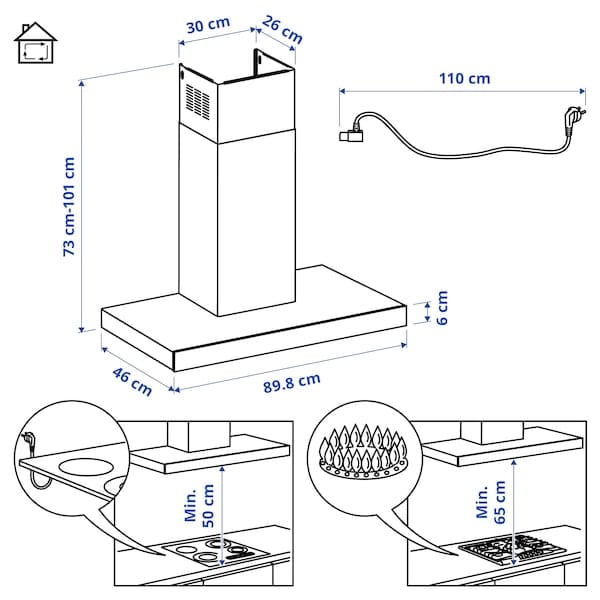

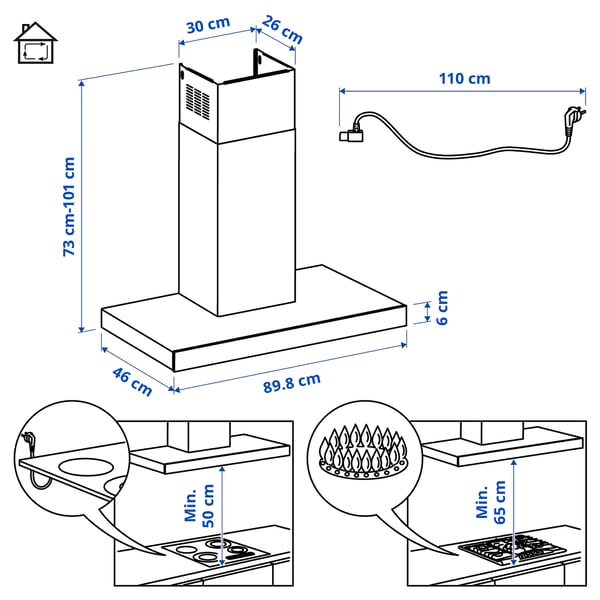

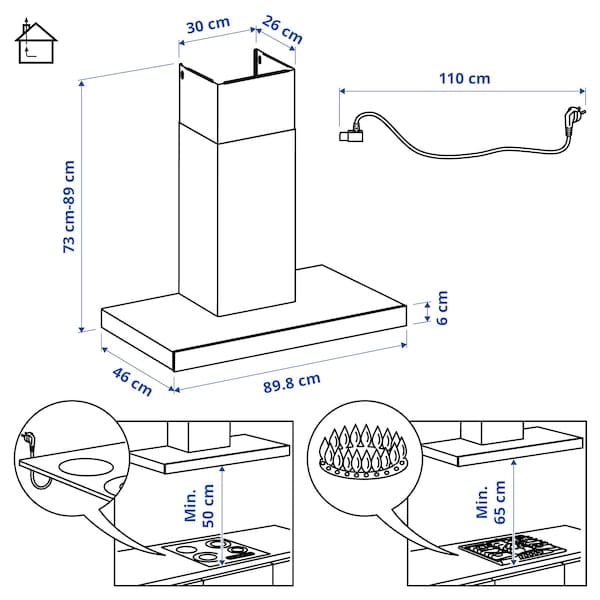

Max height with carbon filter: 101.0 cmMin. height with carbon filter: 73.0 cmWidth: 90.0 cmDepth: 46.0 cmHeight: 6.0 cmMin. height: 73.0 cmMax. height: 89.0 cmElectric cable length: 110.0 cmWeight: 15.00 kgChimney width: 30.0 cmChimney depth: 26.0 cmMax. extraction height: 89.0 cmMin. extraction height: 73.0 cmMax. recirculation height: 101.0 cmMin. recirculation height: 73.0 cmMotor power: 270 W
