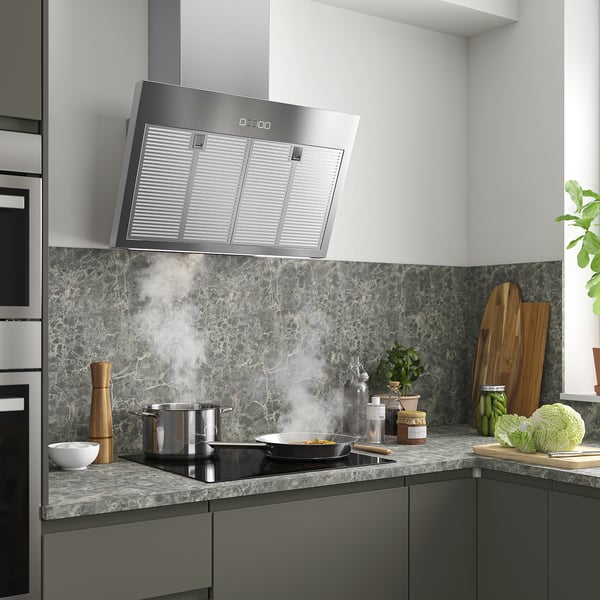

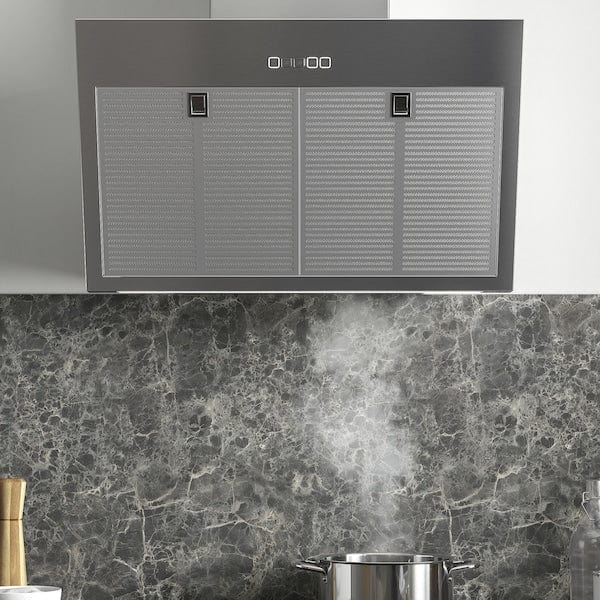

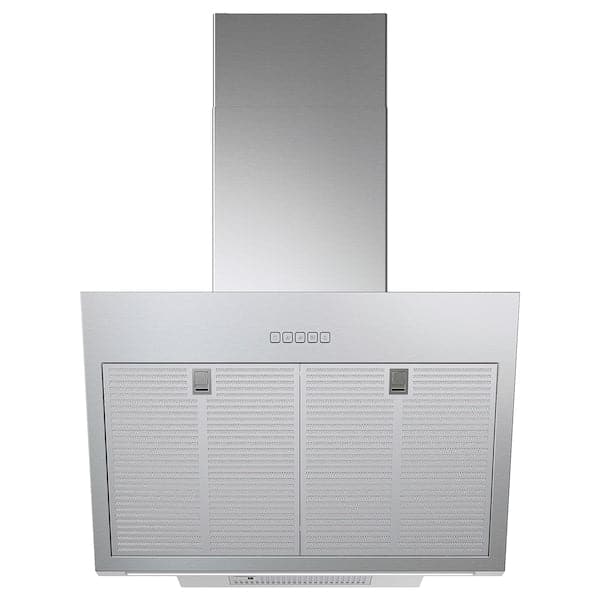

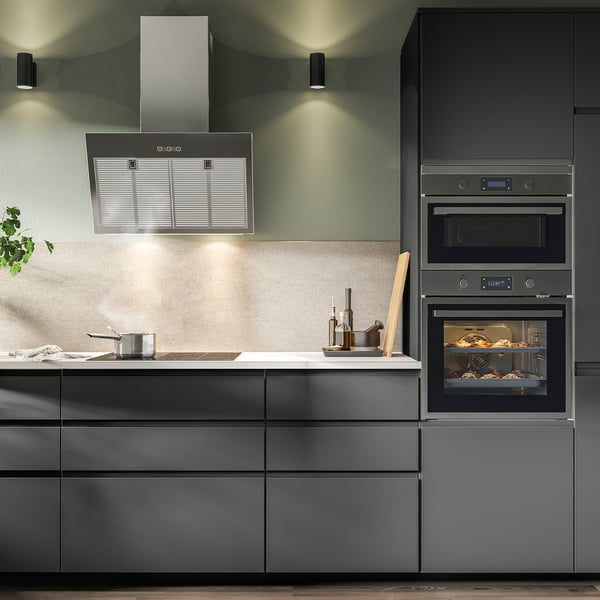

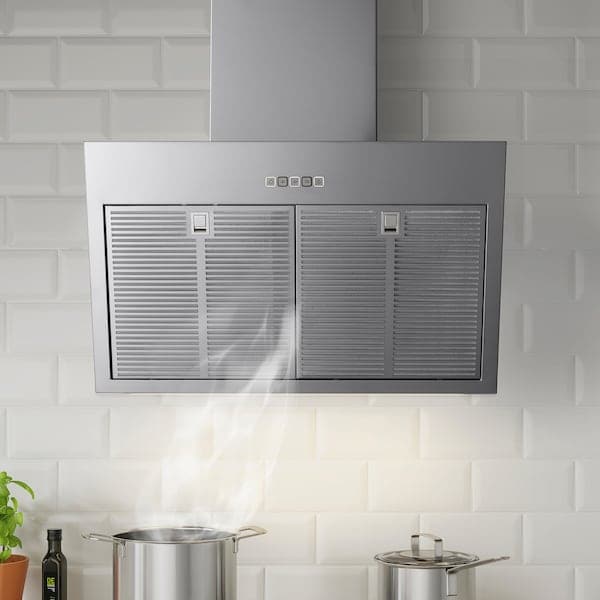

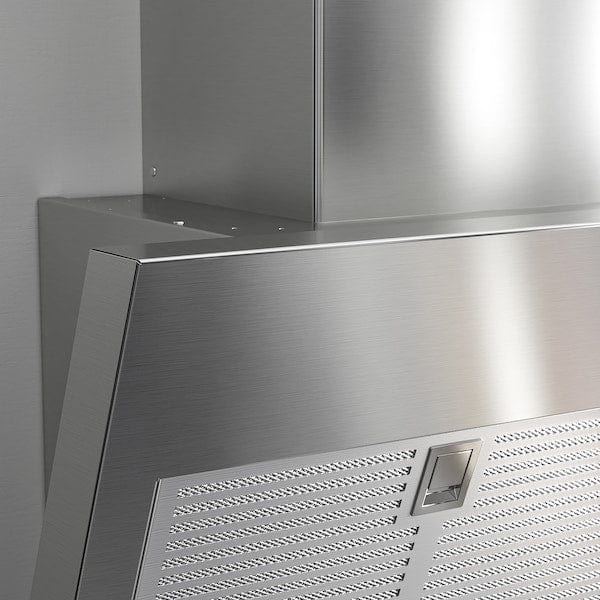

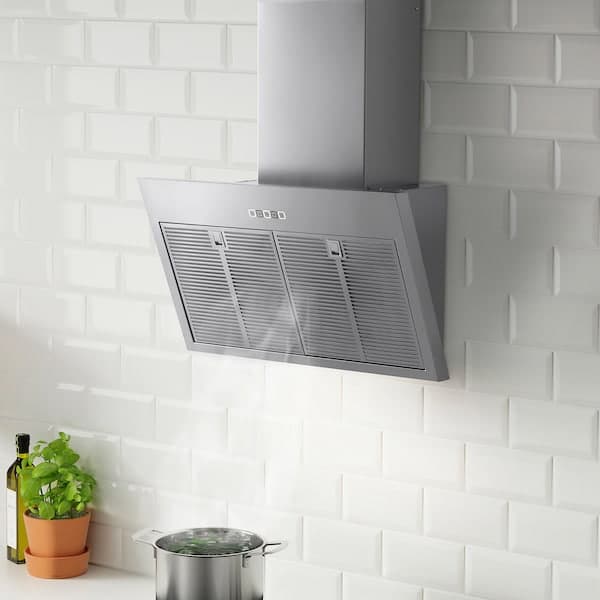

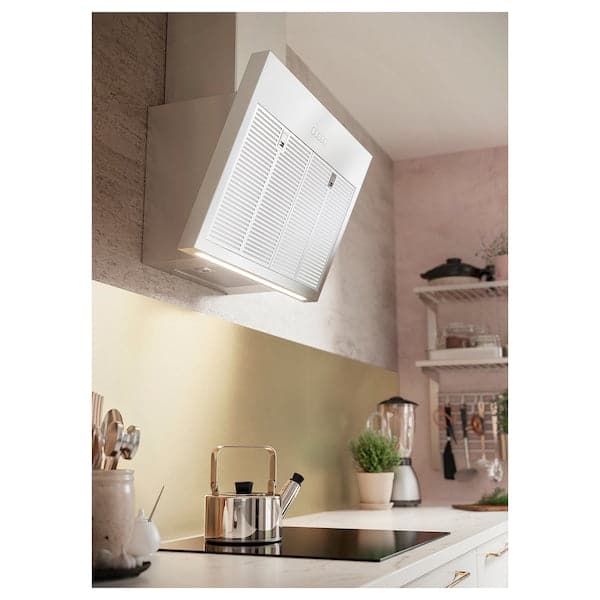

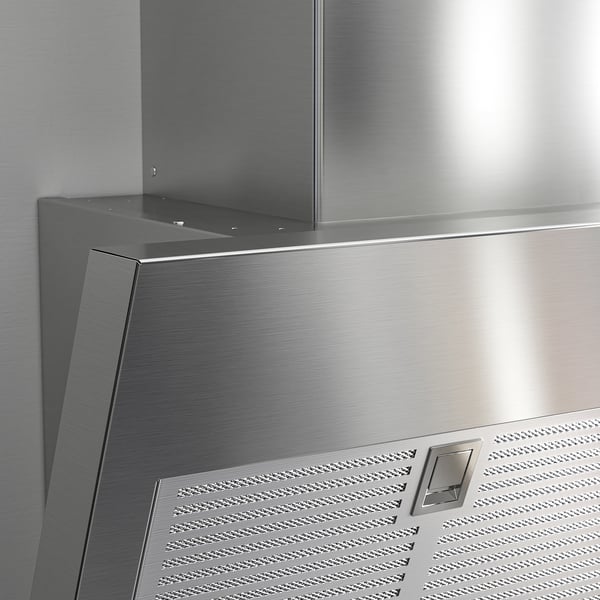

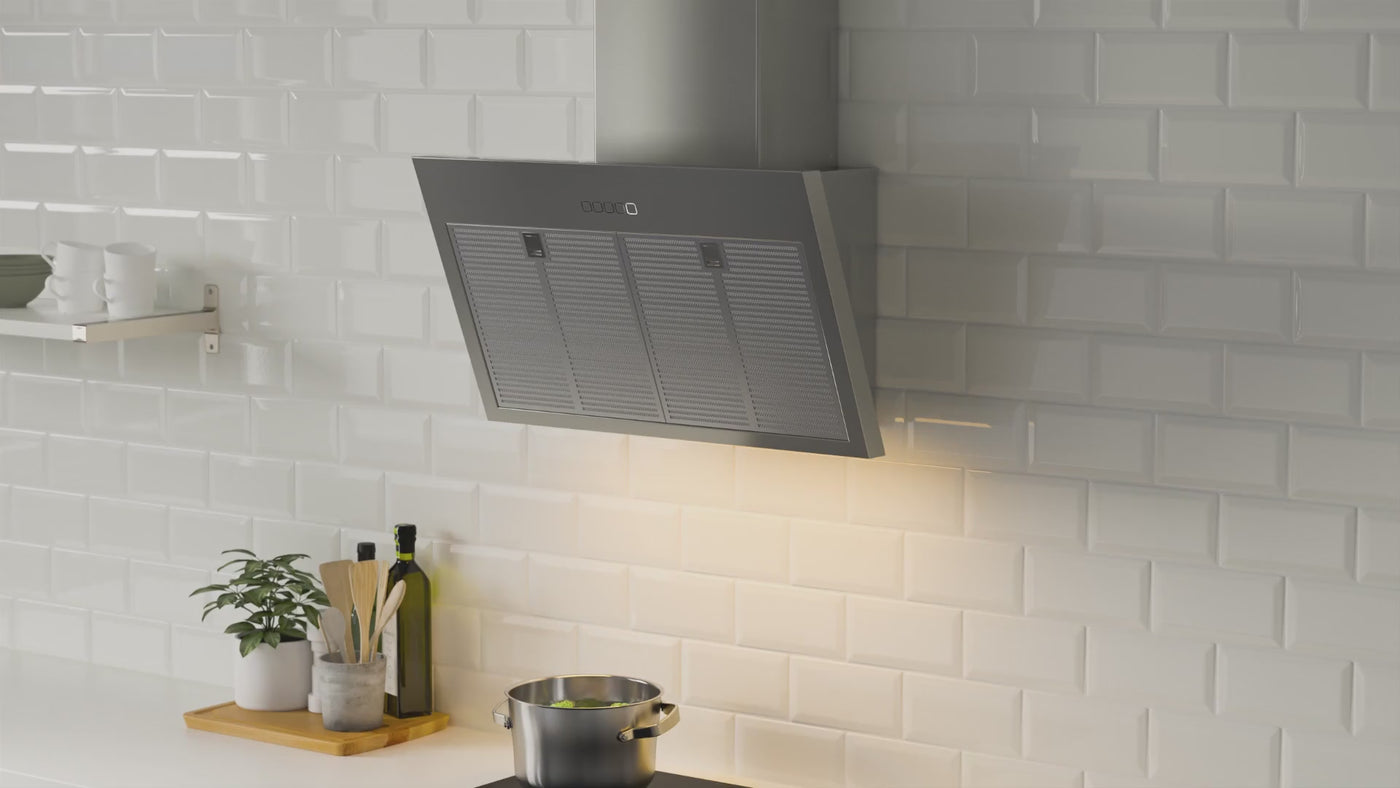

A sleek, angled hood in stainless steel with visible filters and spot-on industrial vibe. LED lighting strip effectively illuminates the cooking surface and can be dimmed when your food is ready to serve.

Key Features

• 5 year guarantee. Read about the terms in the guarantee brochure.
• Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

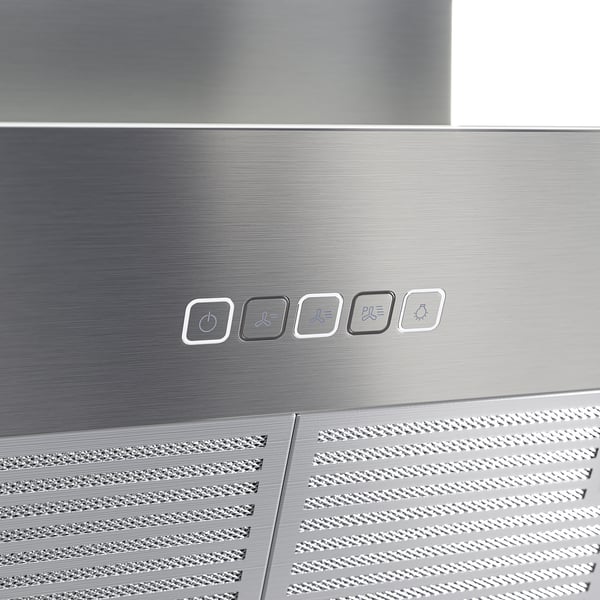

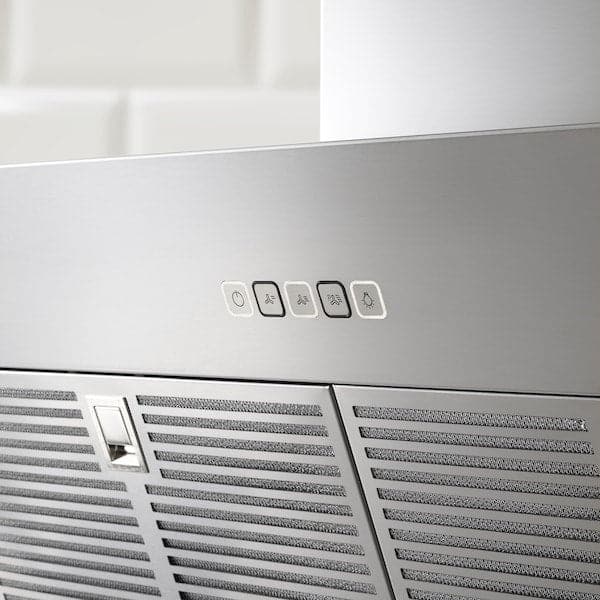

• 3 speed settings allow you to increase or decrease the hood’s power at the push of a button, depending on your cooking needs.
• Dimmable LED strip included; effectively illuminates the cooking surface and provides energy saving.
• You can easily remove and clean the grease filter in the dishwasher.

• Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
• Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

Safety information

• This product bears the Serbian mark of conformity.

Warning

• WARNING! Falling hazard – to reduce the risk of this product falling down, it must be securely anchored. Use suitable screws and plugs for your home. If you are uncertain, seek professional advice.

Performance (only white goods)

• Extraction rate in exhausting mode with booster function: 700 m³/h.
• Extraction rate in exhausting mode: 380 m³/h.
• Noise level at max. exhaust speed: 60 dB (A).
• Extraction rate in re-circulation mode: 365 m³/h.
• Noise level at max. re-circulation speed: 78 dB (A).
• Voltage: 220-240V.

White goods information

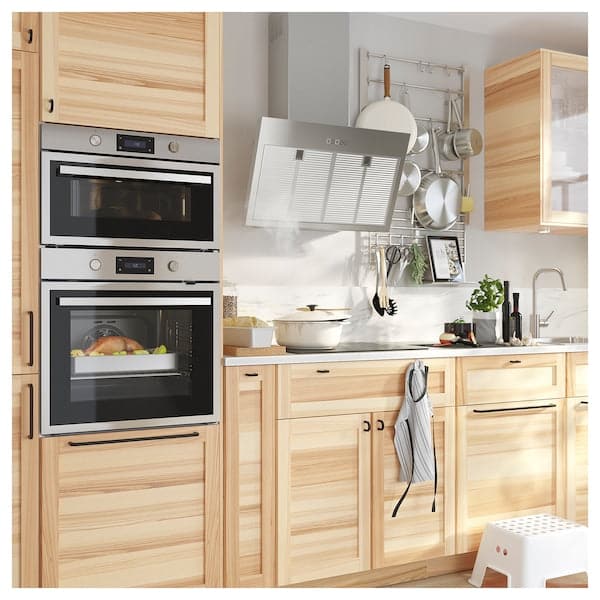

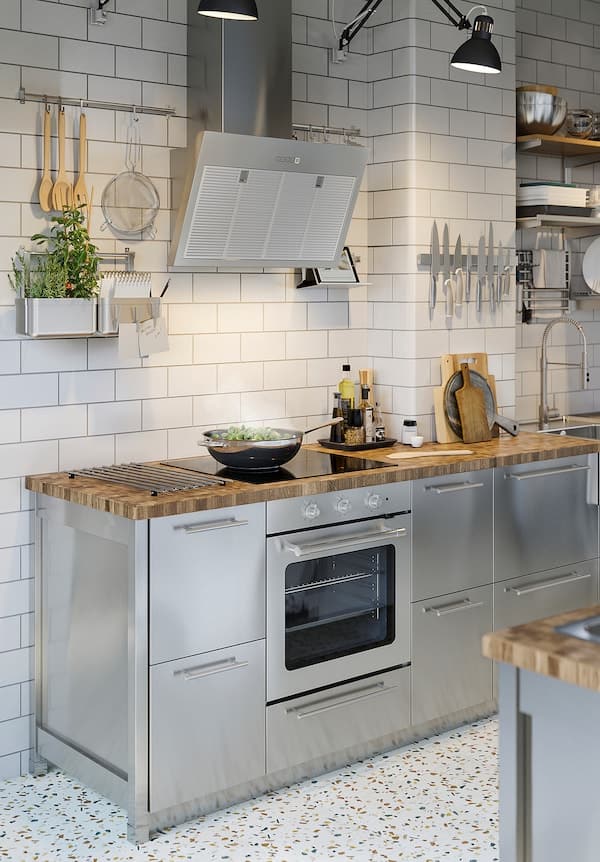

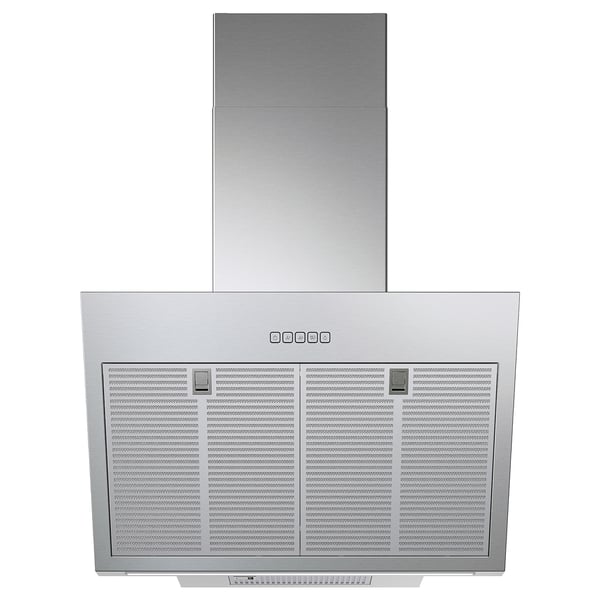

• Wall mounted extractor hood with 3 different speeds and booster function.

Test results and compliance

• This product bears the CE mark.

Compl. assembly information

• For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
• For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 500.

Sold separately

• Flexible pipe for fan and charcoal filter sold separately.

Other information

• IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com

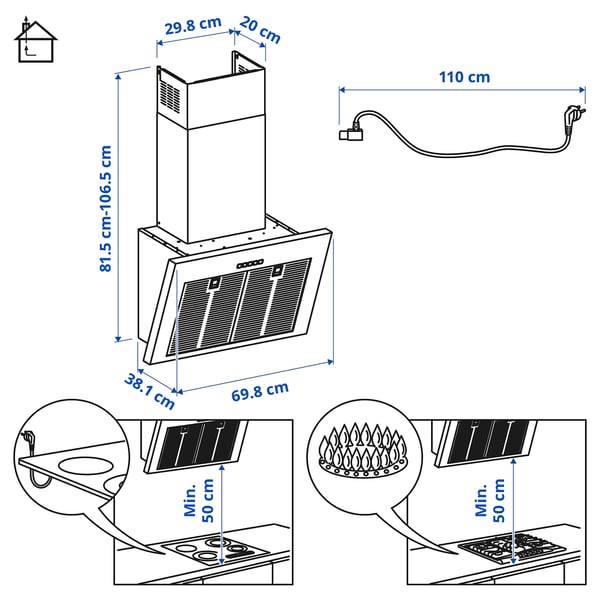

Width: 69.8 cmDepth: 38.1 cmMinimum extraction height: 80.2 cmMaximum extraction height: 105.2 cmMinimum recirculation height: 91.2 cmMaximum recirculation height: 117.2 cmChimney width: 29.8 cmChimney depth: 20.0 cmWeight: 16.50 kgElectric cable length: 110.0 cmMotor power: 270 W
