Key Features

• The tap aerator combines air with the water stream and generates a smooth gentle flow, while enabling water efficiency over time.
• The cold start prevents unnecessary release of hot water when the lever is in the middle position. Hot water is activated by turning the lever to the left.
• Easy removal aerator for easy disassembly and cleaning.
• Trivalent chrome plating provides enhanced corrosion resistance, exceptional hardness and wear resistance and a visually pleasing finish.
• Durable ceramic disc valves in the handles secure long-lasting use.

• Wipe dry with a clean cloth.
• Clean with a soft cloth dampened with water and a mild washing-up detergent or soap. Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
• To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.

Performance (other)

• Max. 4.5 l/min water flow at 3 bar pressure.

Included

• Connection hoses with G3/8" (R10) connection included.
• Fitted with a pressure-compensating aerator that regulates water for a consistent flow and softens the stream.

Fits

• Fits IKEA integrated and semi-recessed wash-basins, and other standard wash-basins.

Purchase-/Other information

• Recommended hot water temperature is 60°C. Max. temperature hot water connection 80°C.
• Spare parts are available. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.

Compl. assembly information

• If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.

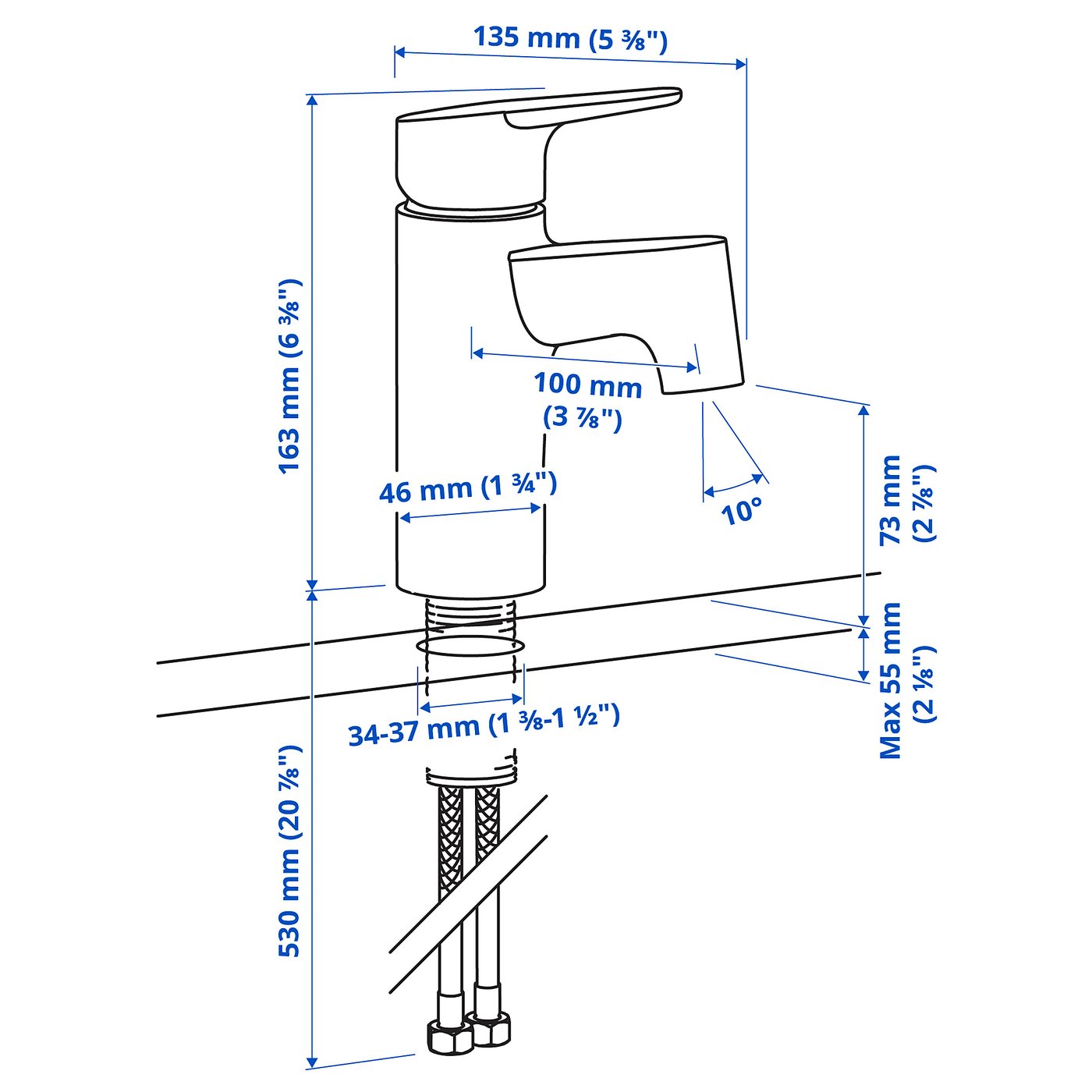

• To be mounted in a 34-37 mm hole in a wash-basin or countertop max. 55 mm thick.

Test results and compliance

• Third party certified according to local standards by BELGAQUA, ETA-Danmark, KIWA, PZH, SINTEF, SVGW.
• This mixer tap is designed for high-pressure water systems with a recommended pressure range of 1.0 – 5.0 bar (0.1 – 0.5 MPa). It has been tested to work with a max. pressure of 10 bar (1 MPa).

Other information

• IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com

Height: 163 mm
