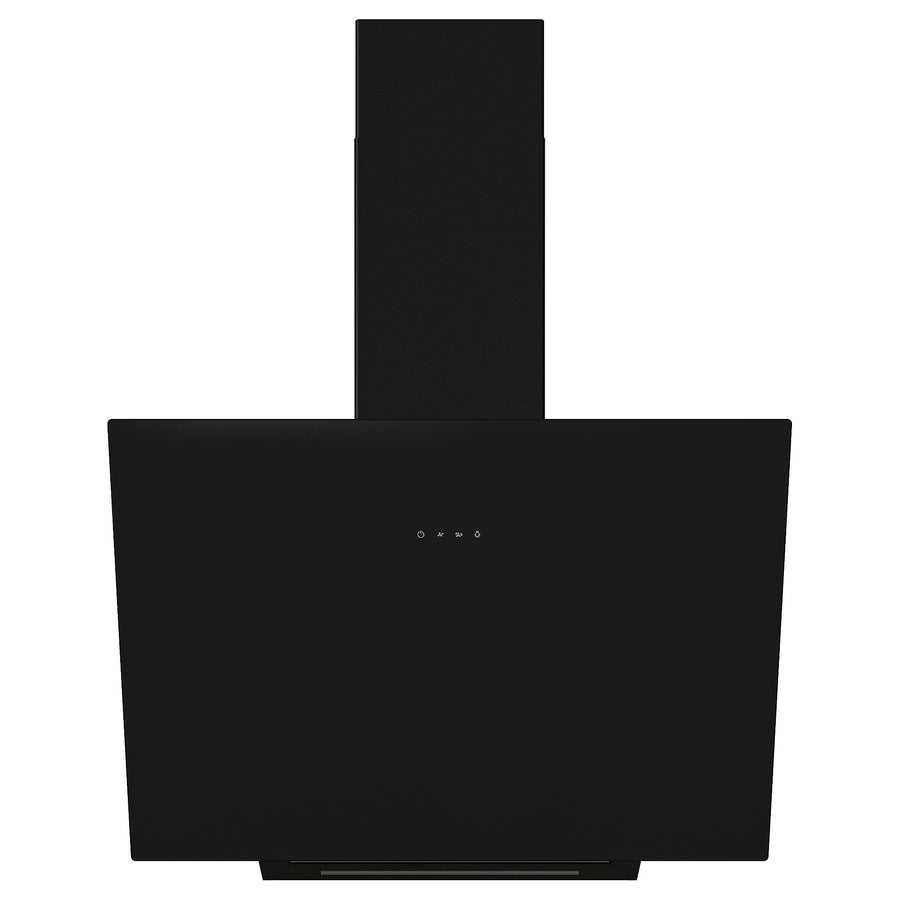

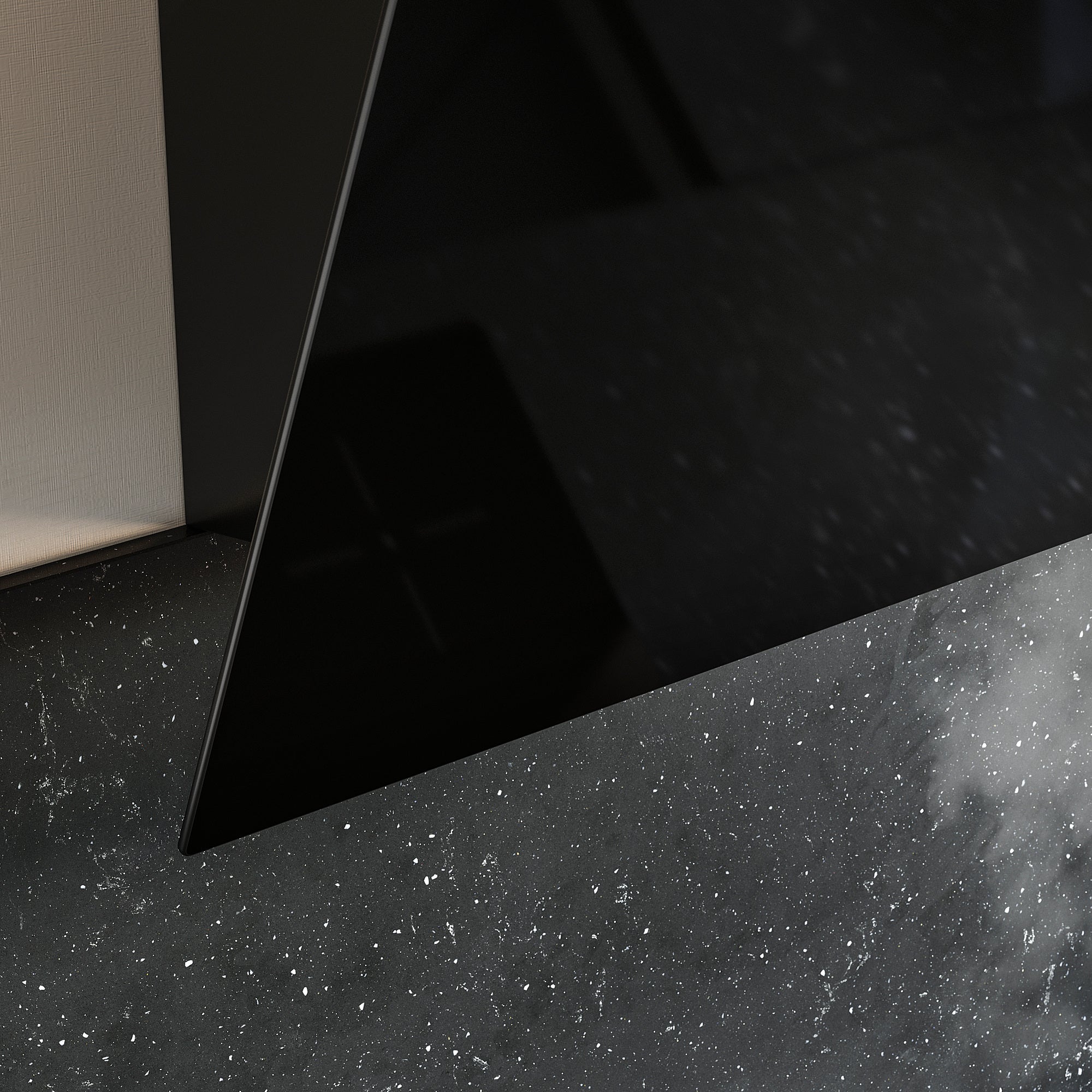

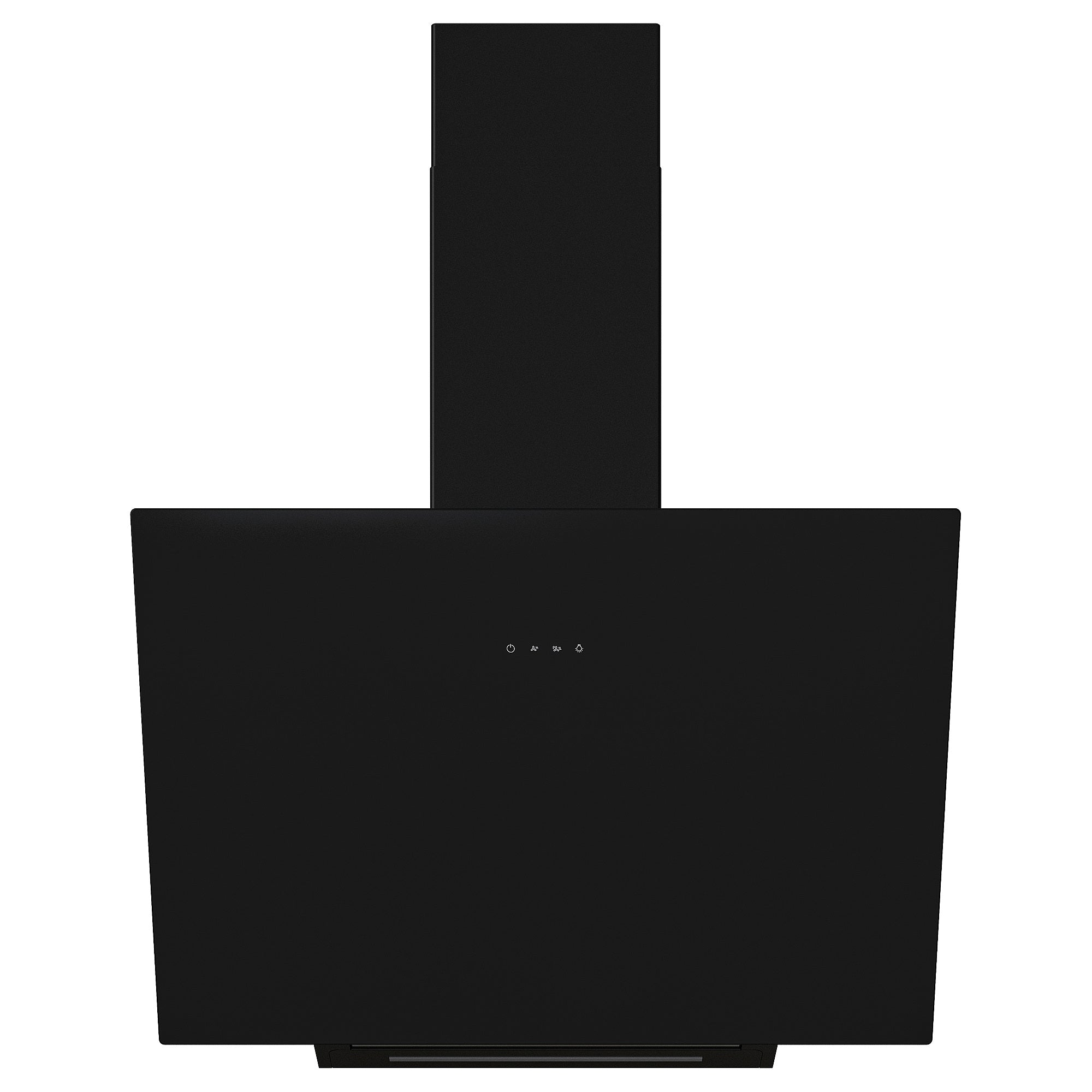

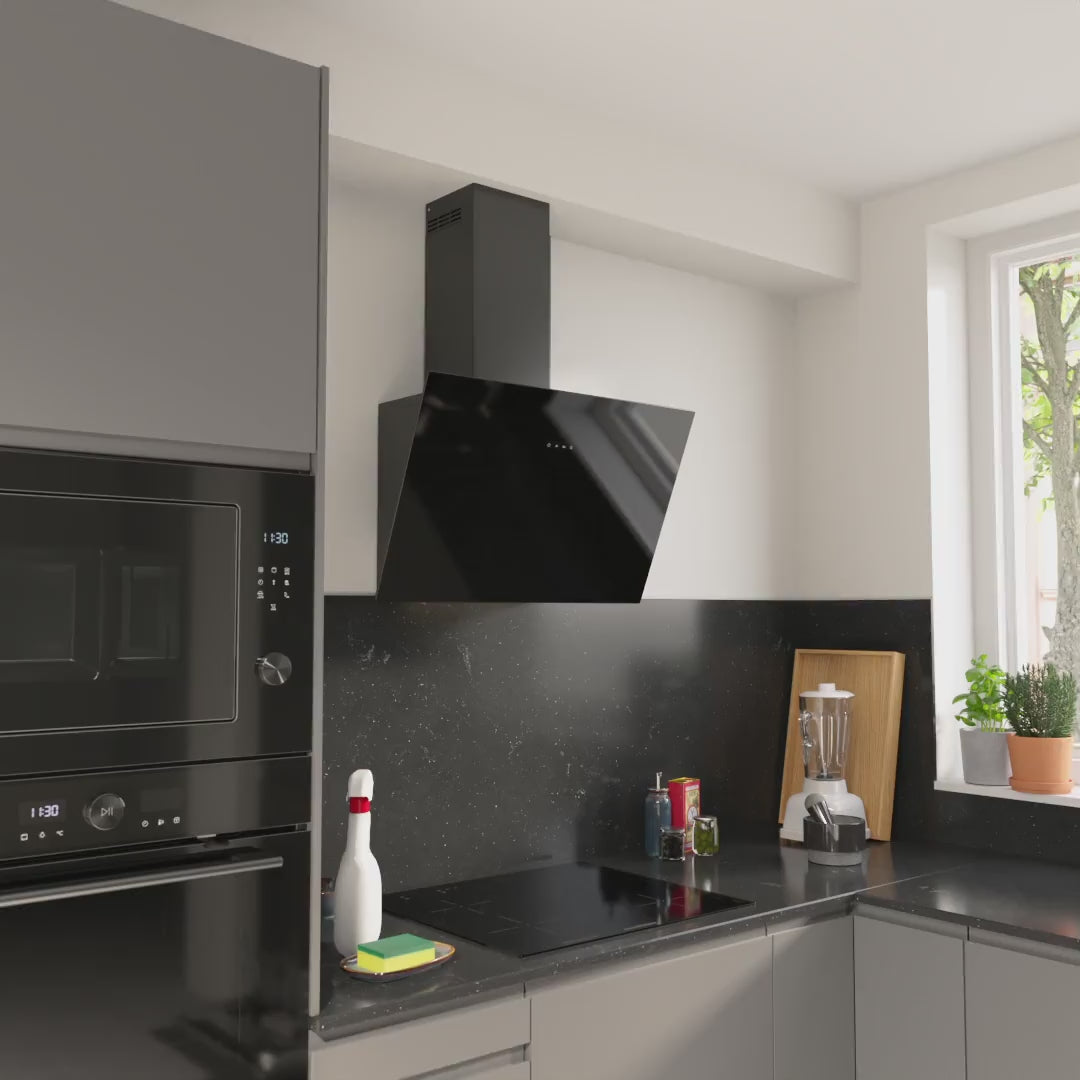

This sleek extractor hood with angled glass design creates a light, open feel in your kitchen. It’s got a booster function for extra power, LED lighting and ensures energy-efficiency with an A++ rating.

Key Features

• 5-year guarantee, free of charge. Read about the terms in the guarantee brochure.
• Booster function cranks up extraction for a few minutes to quickly clear cooking fumes – perfect when you're frying and guests are on the way.

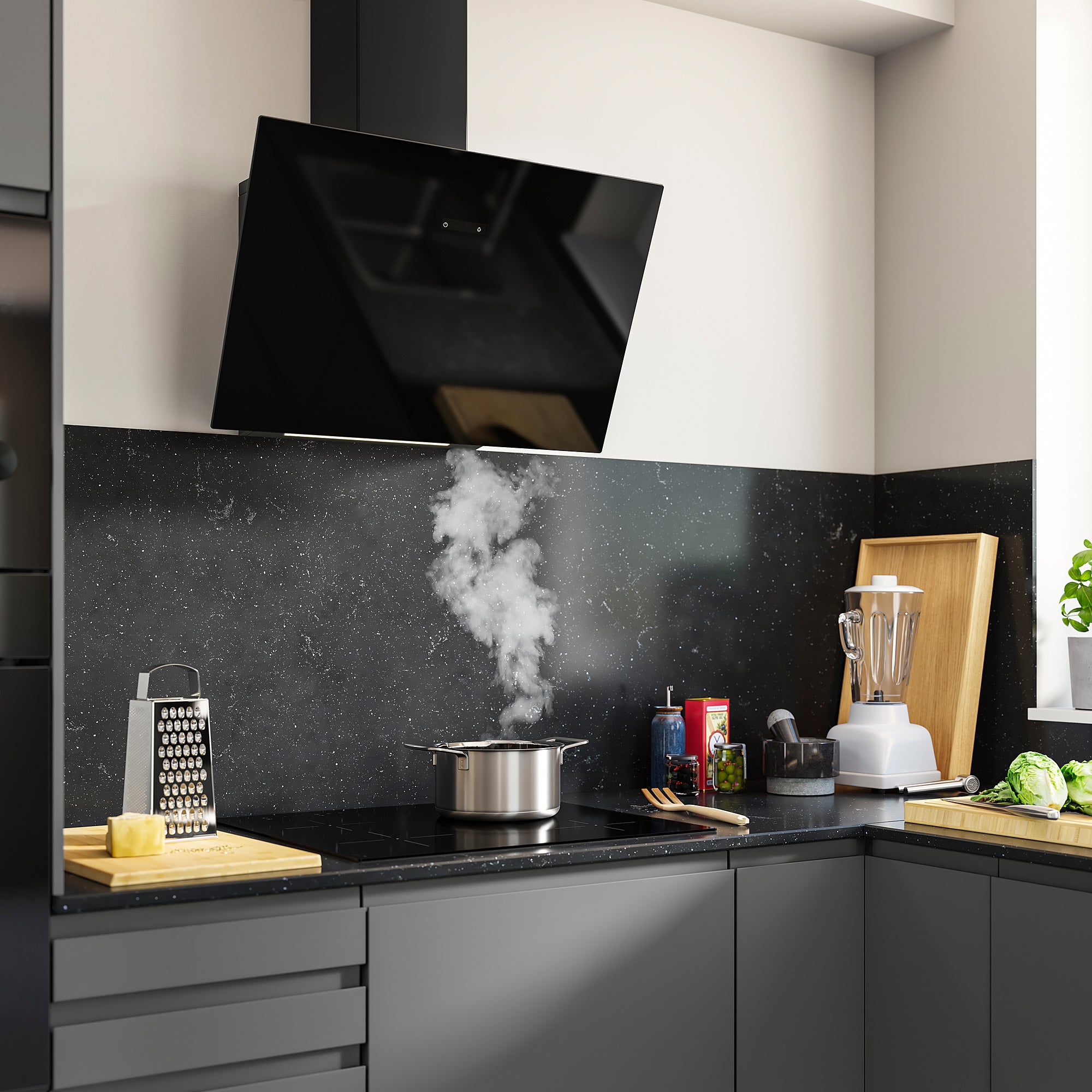

• The inclined design creates a spacious feel around the hob and gives you extra headroom for easy cooking.

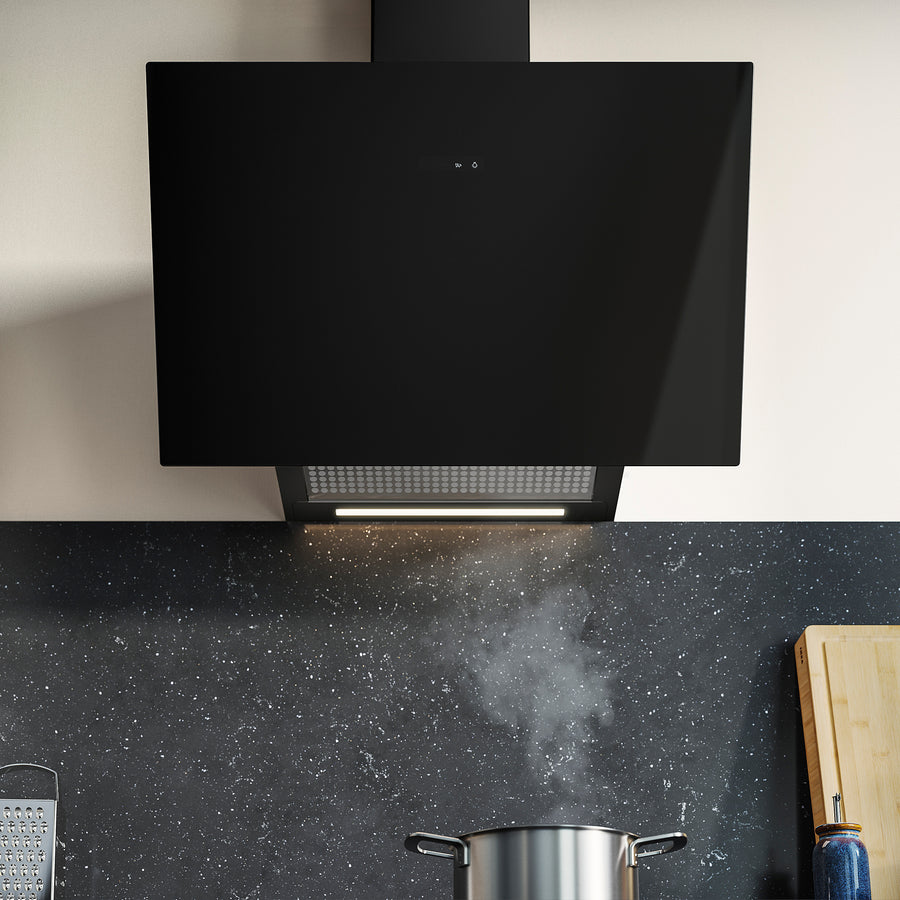

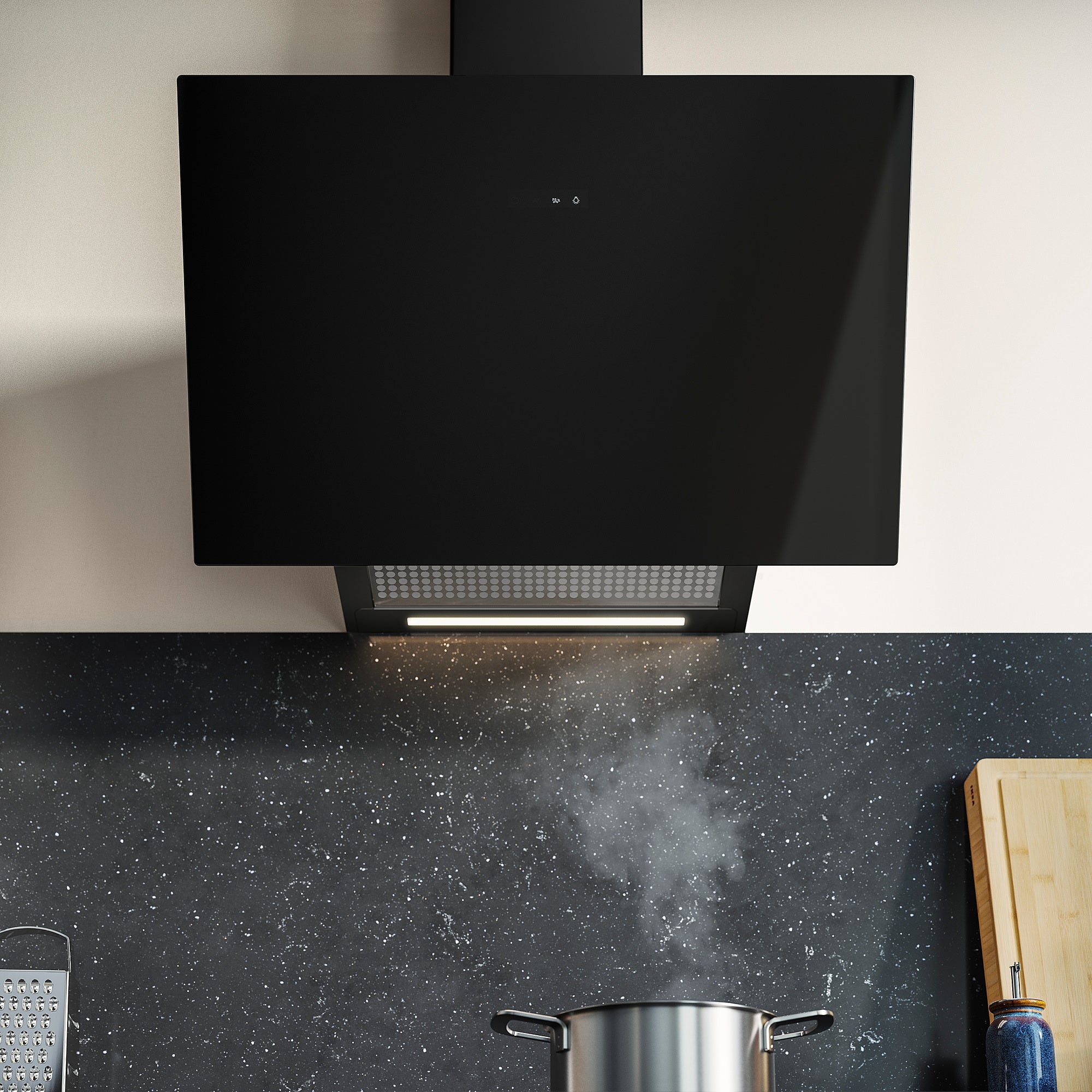

• LED light source included; effectively illuminates the cooking surface.
• Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

• You will find complete information about the care of this product under the tab Assembly instructions & documents.
• Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
• Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

Test results and compliance

• This product bears the CE mark.

Safety information

• This product bears the Serbian mark of conformity.

Warning

• WARNING! Falling hazard – to reduce the risk of this product falling down, it must be securely anchored. Use suitable screws and plugs for your home. If you are uncertain, seek professional advice.

White goods information

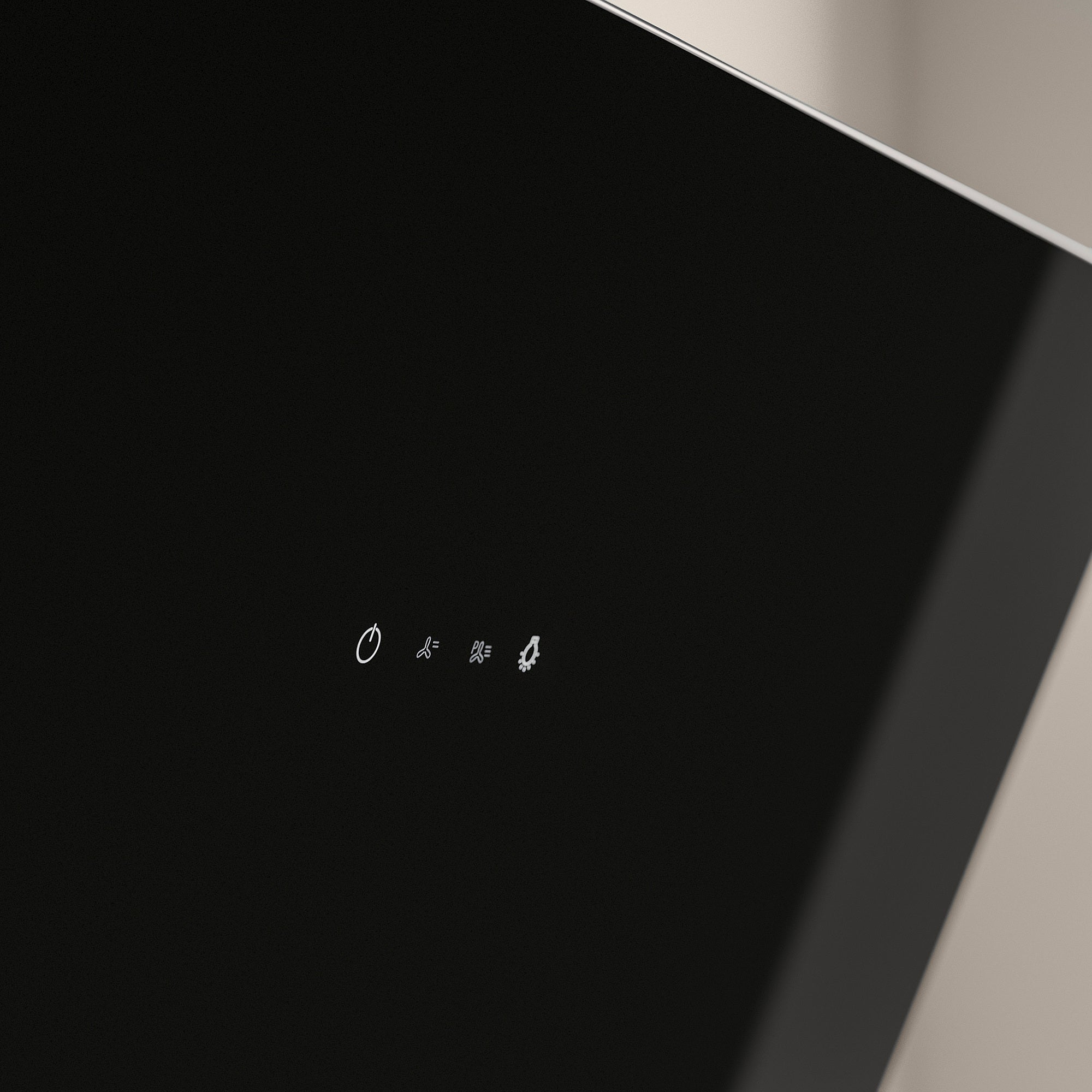

• Wall mounted extractor hood with 3 different speeds and booster function.

Purchase-/Other information

• For recirculation installation: to be completed with charcoal filter NYTTIG filter 500.

Functions (only white goods)

• Brushless motor ensures quiet operation.

Performance (only white goods)

• Extraction rate in exhausting mode: 500 m³/h.
• Extraction rate in exhausting mode with booster function: 690 m³/h.
• Noise level at max. exhaust speed: 60 dB (A).
• Extraction rate in re-circulation mode: 270 m³/h.
• Extraction rate in re-circulation mode with booster function: 410 m³/h.
• Noise level at max. re-circulation speed: 66 dB (A).
• Voltage: 220-240V.

Compl. assembly information

• A min. 226 cm ceiling height is required for recirculation installation, though it may vary with worktop thickness, hob type or recirculation setup (with/without grid/chimney). See assembly instructions.
• For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
• Note that the noise level may increase or decrease depending on how the extractor hood is installed. See assembly instructions for more details.
• You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
• Power supply cable with plug included. Installation to be carried out by a qualified installer.

Acc. included (only white goods)

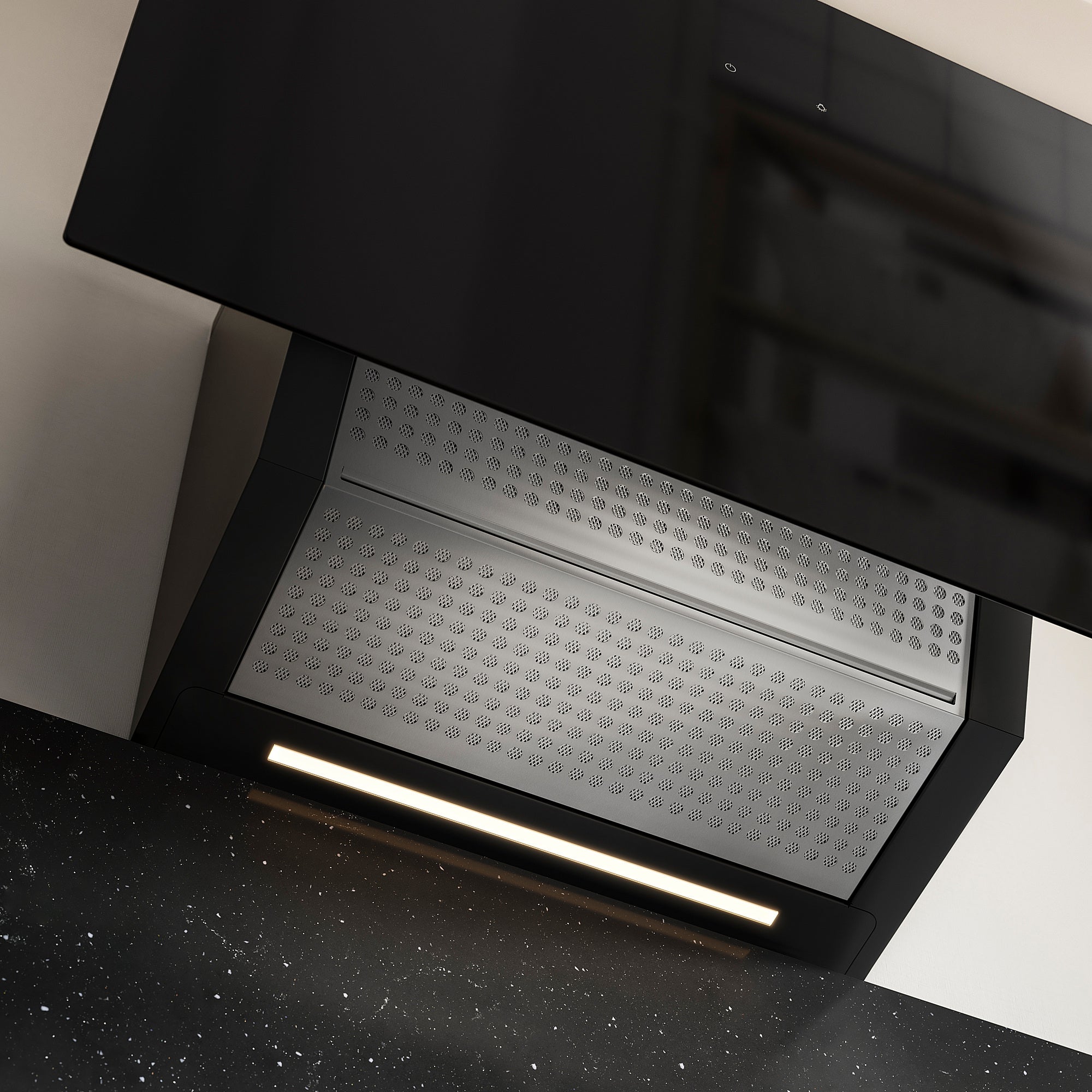

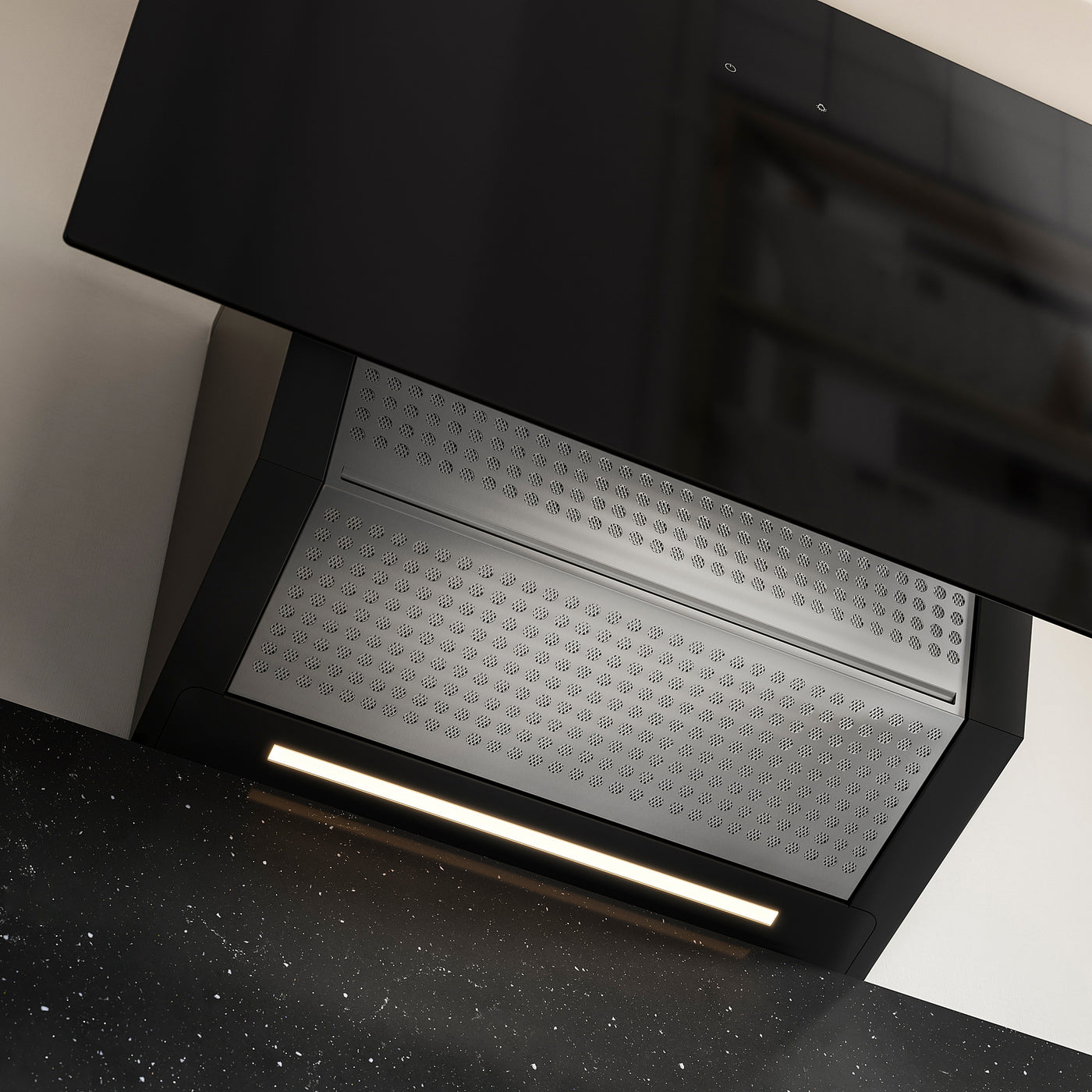

• 1 dishwasher-safe grease filter included; effectively absorbs smell of cooking, easy to remove for cleaning.

Sold separately

• Flexible pipe for fan and charcoal filter sold separately.

Other information

• IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
