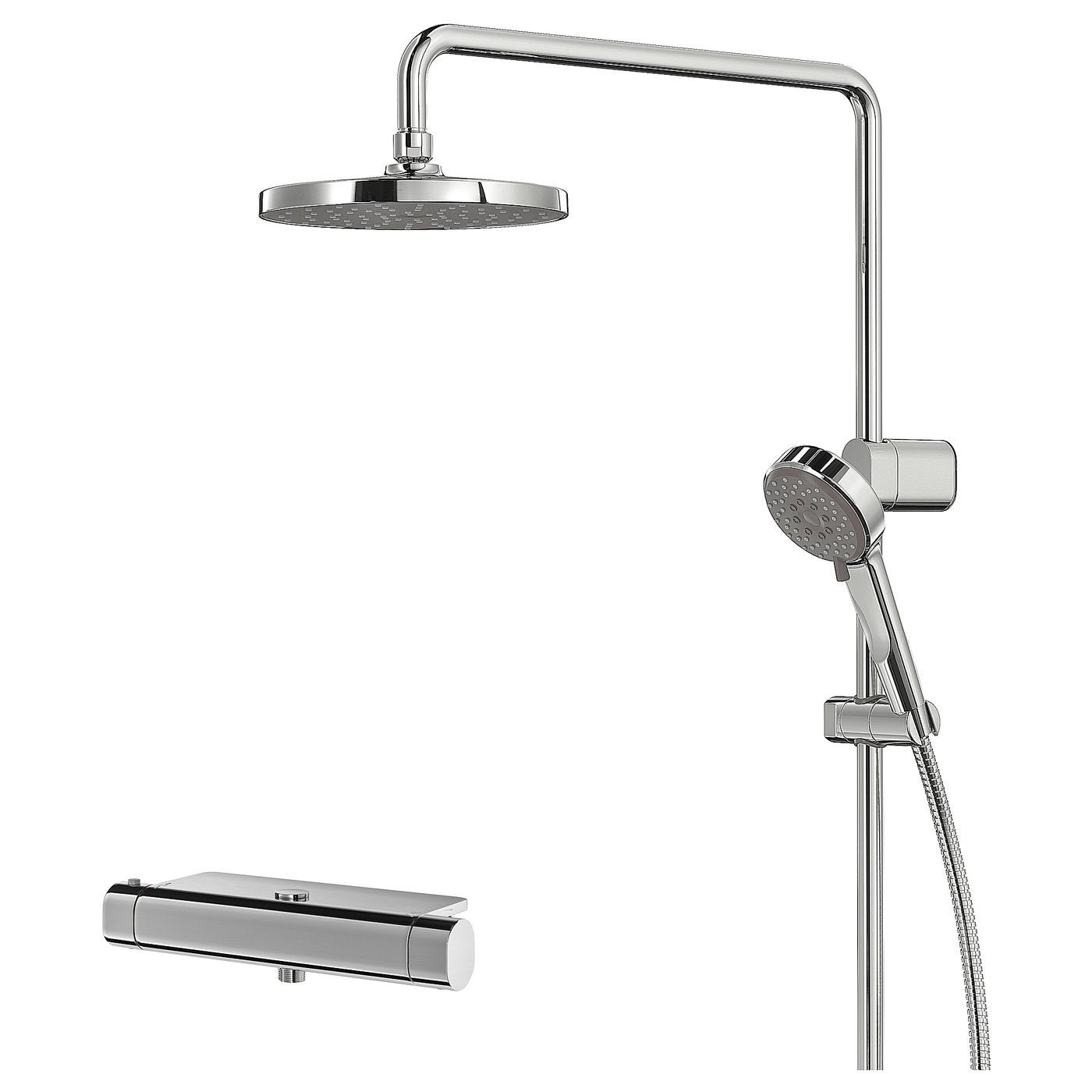

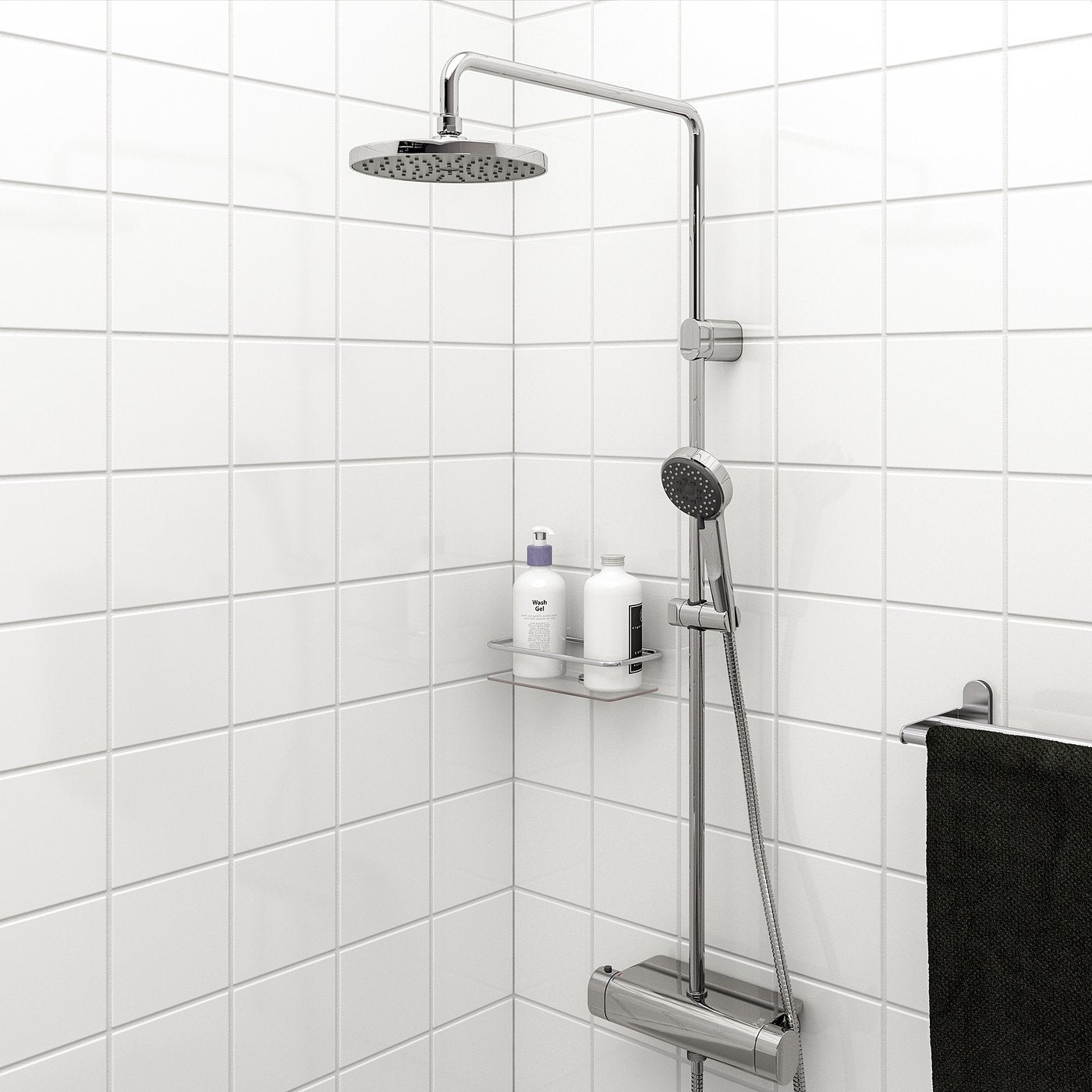

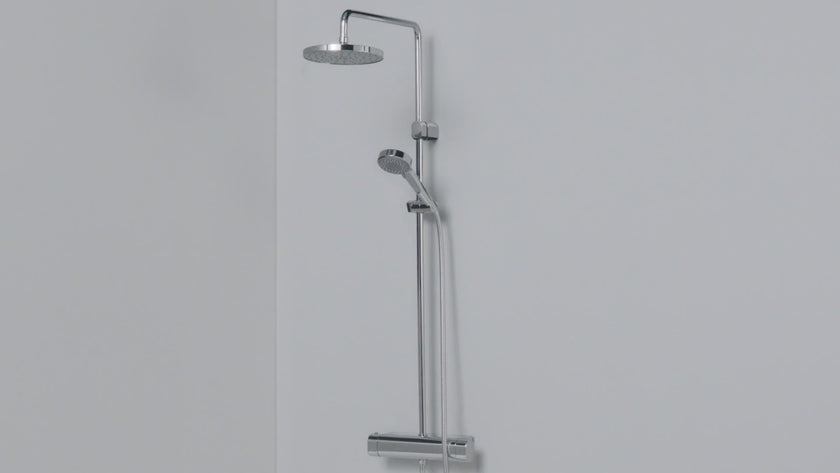

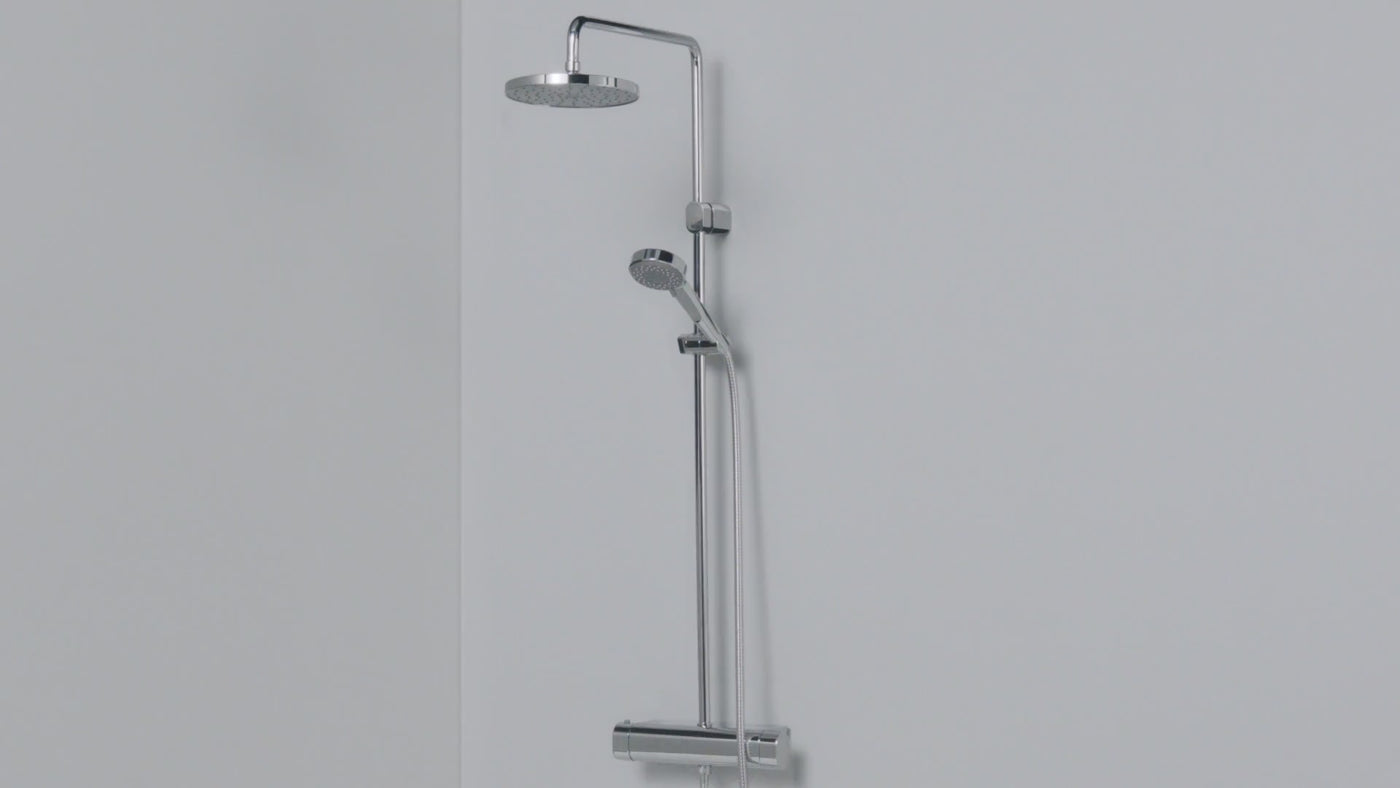

A head/hand shower set with different spray functions. Feel secure with the 38°C safety stop that prevents water from getting too hot, and “cold touch” feature keeps a safe temperature on the mixer bar.

Key Features

• 3 year guarantee. Read about the terms in the guarantee brochure.

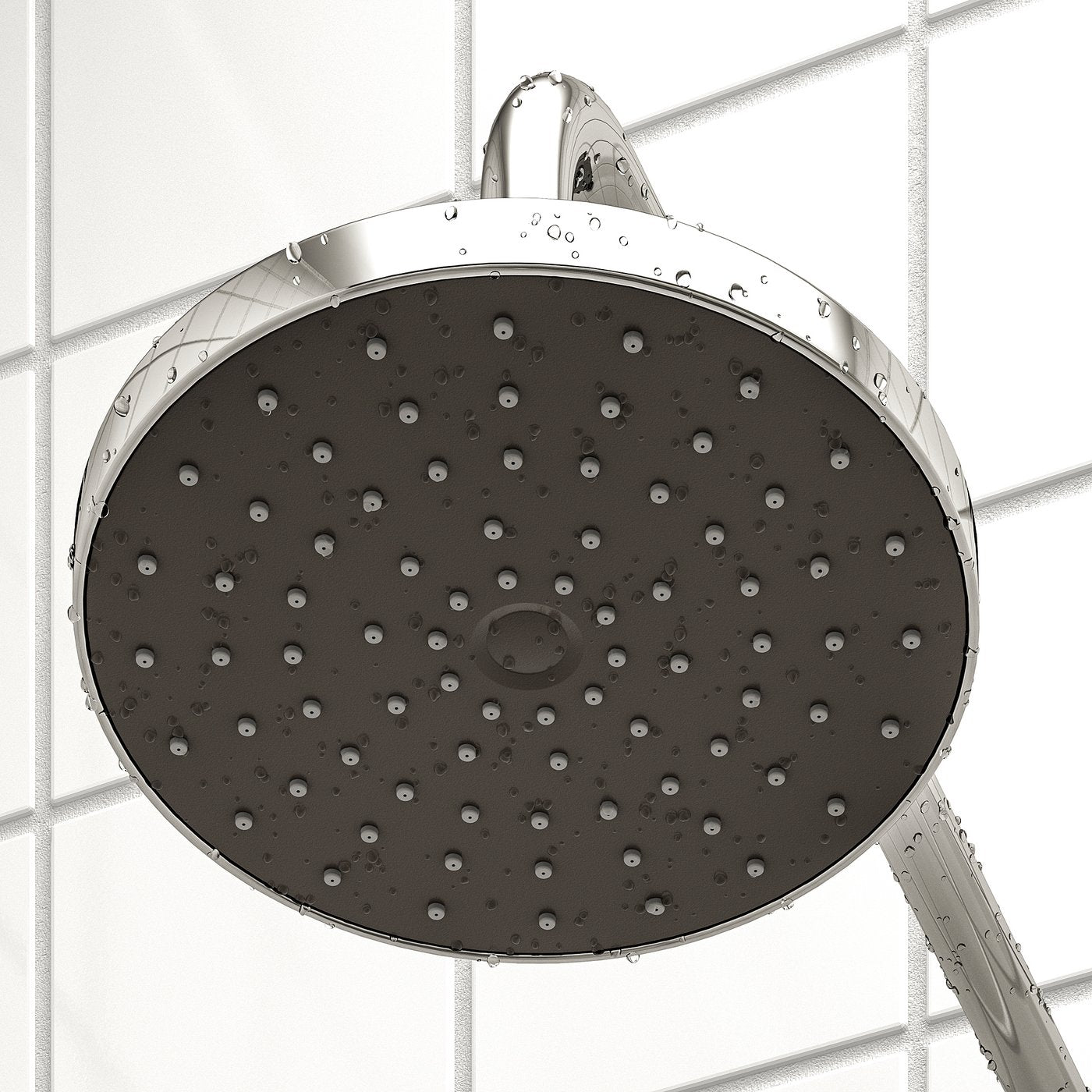

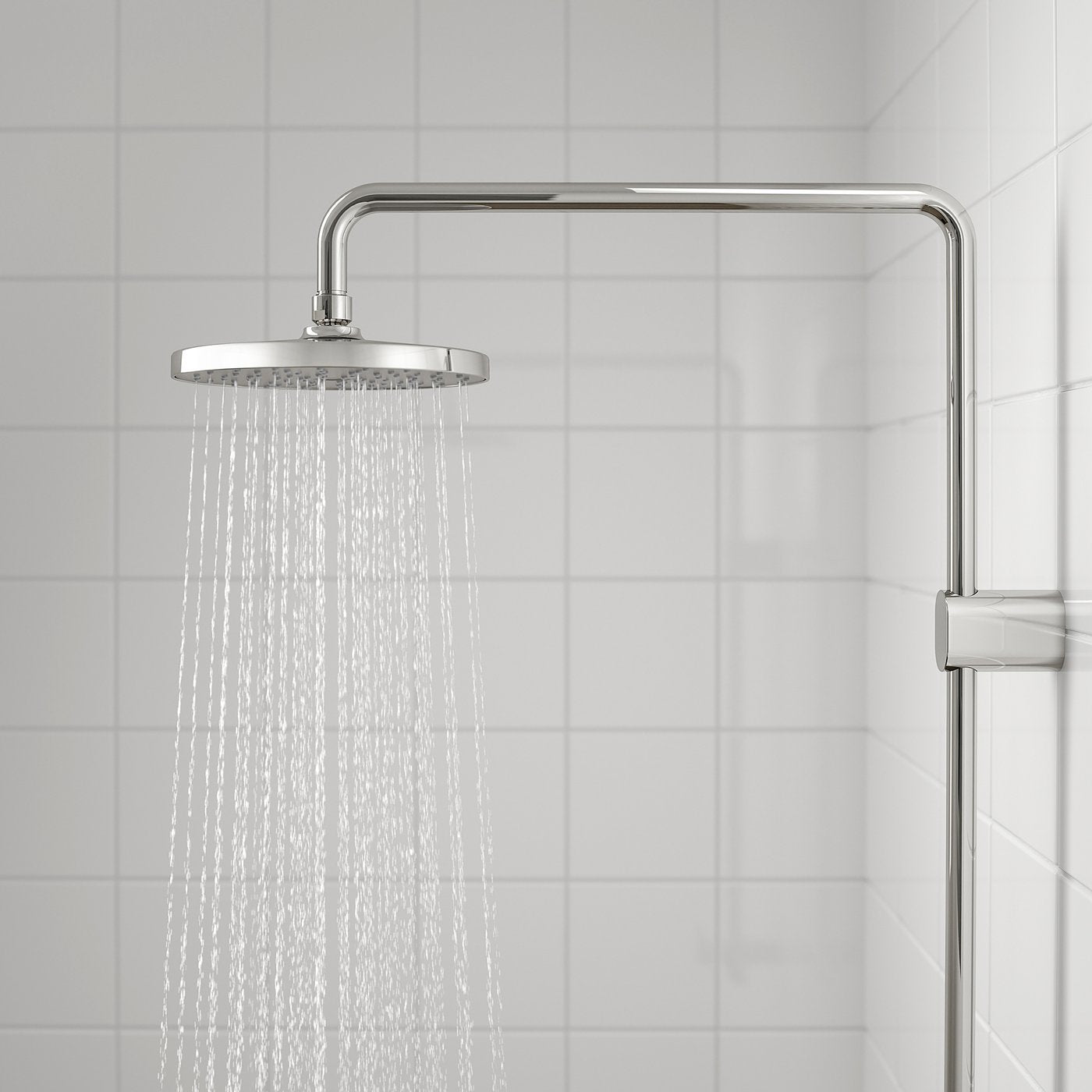

• The full spray function of the head shower gives a wide and even coverage over the body, for a calming rainfall feeling.

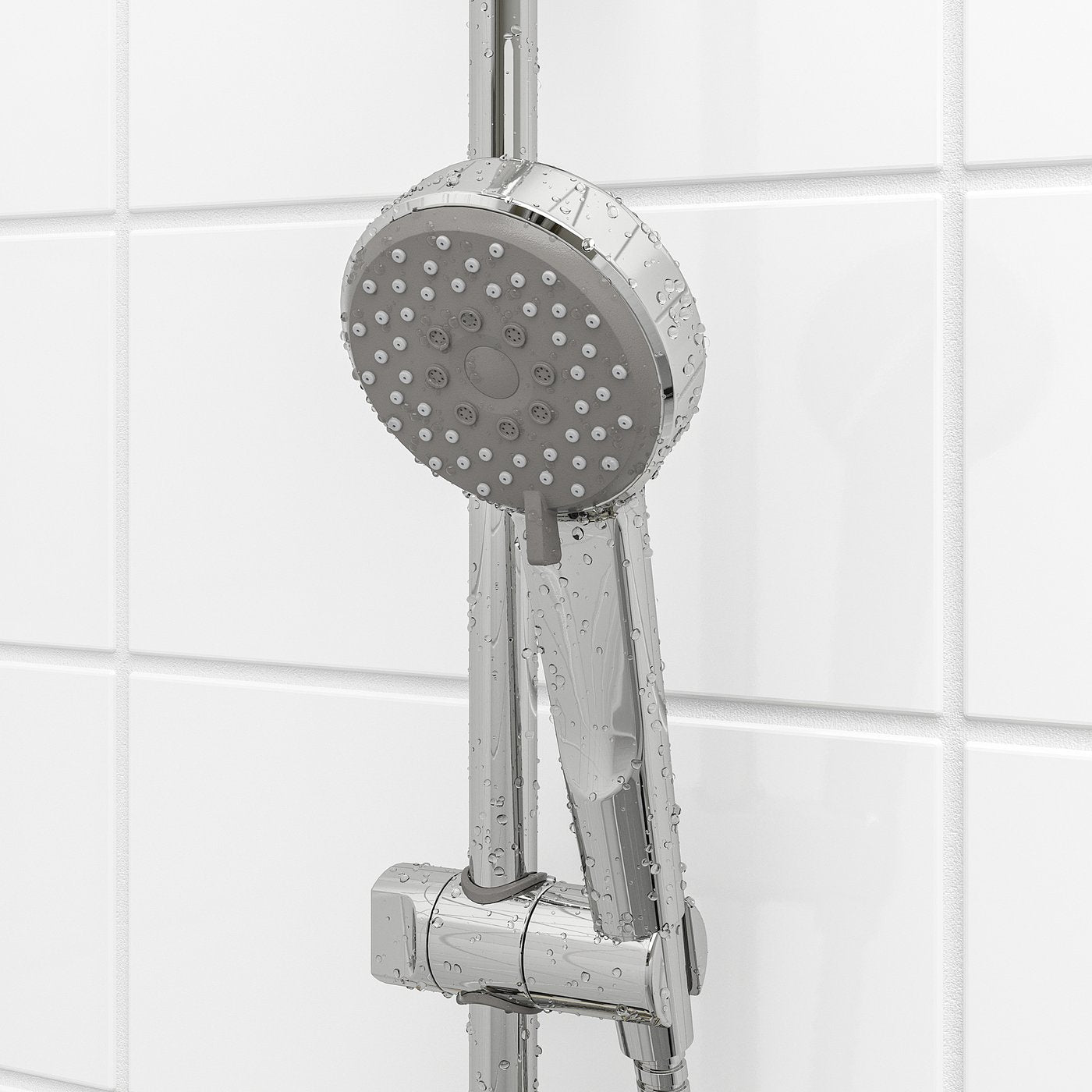

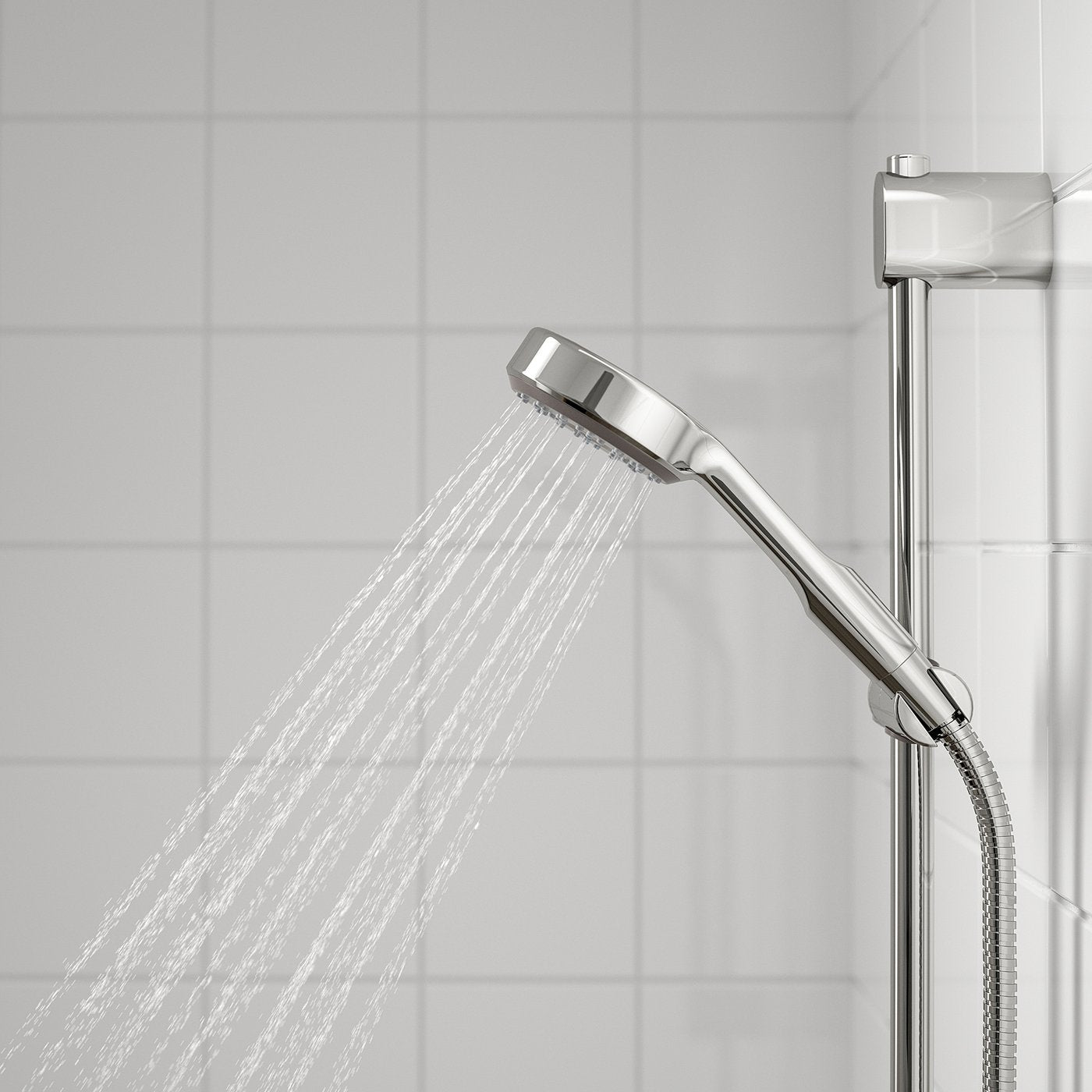

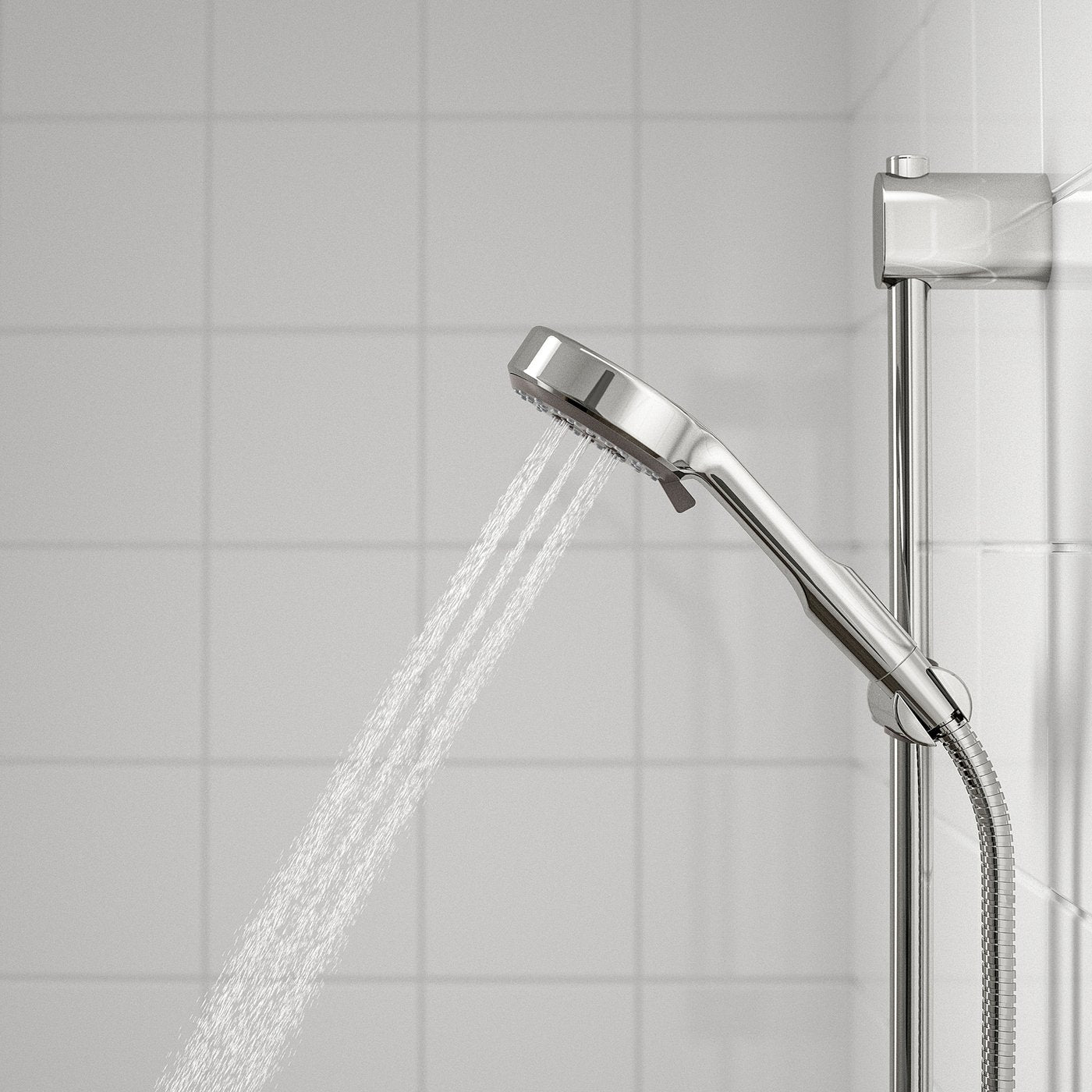

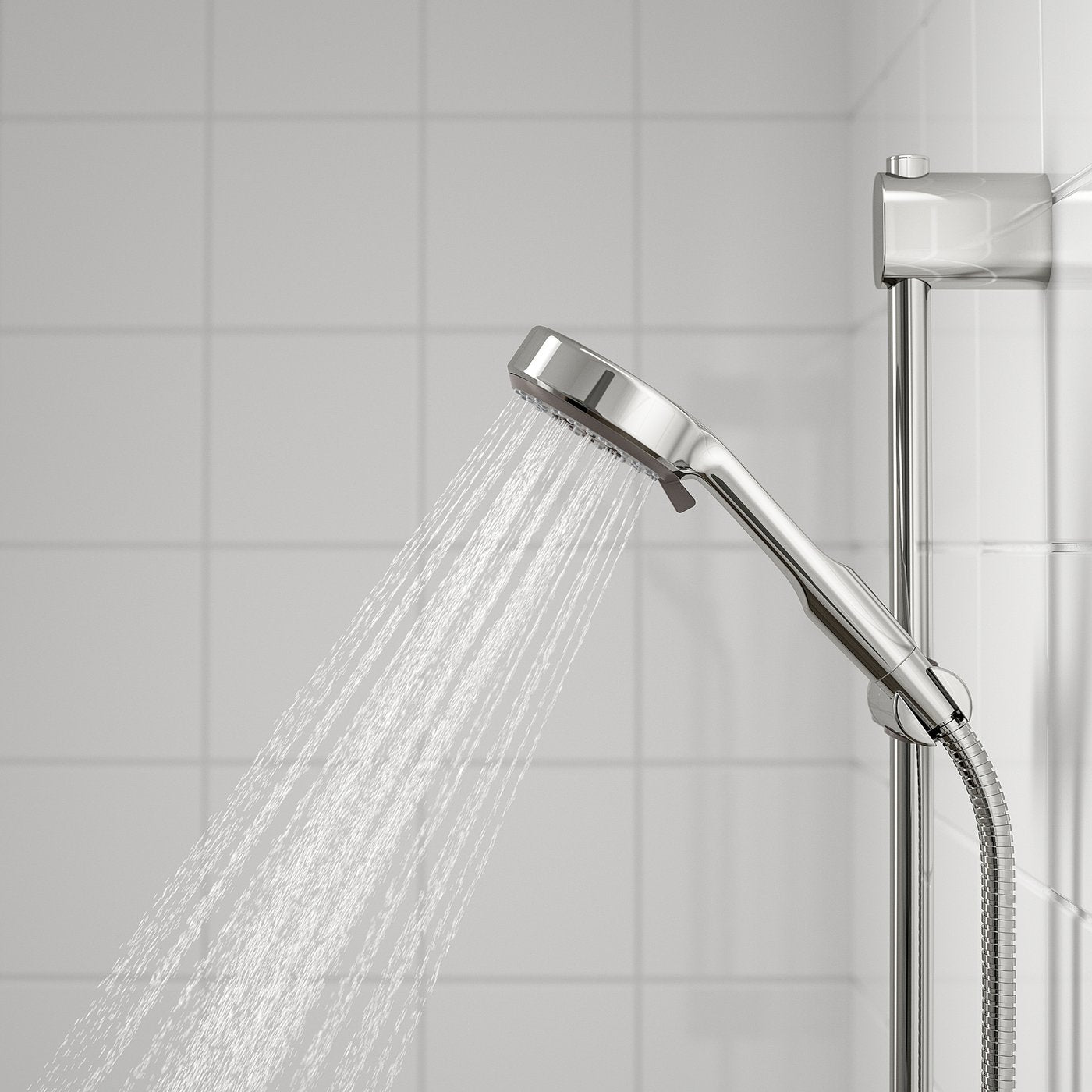

• This hand shower with full spray function gives a wide and even coverage for a relaxing shower experience.
• You can easily adjust the height of the hand shower thanks to the flexible parking bracket on the rail.

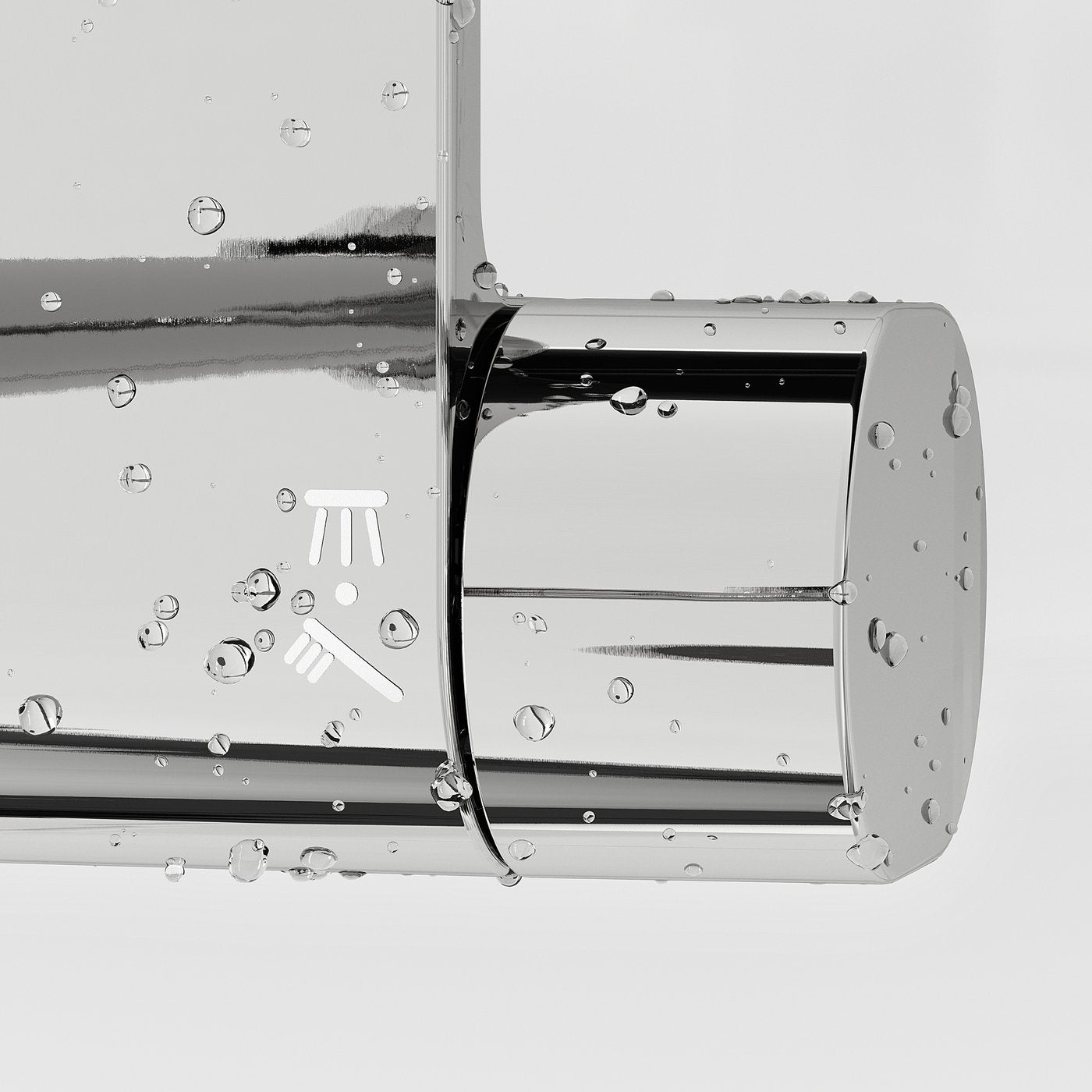

• It’s easy to switch between the head and hand shower using the diverter on the rail.

• To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
• Rub away limescale deposits with your hands.
• Turn the thermostat from full cold to full hot from time to time.

Functions (other)

• The head shower comes with full spray and the hand shower comes with full, mesh and full/mesh spray functions.
• Separate flow and temperature controls.

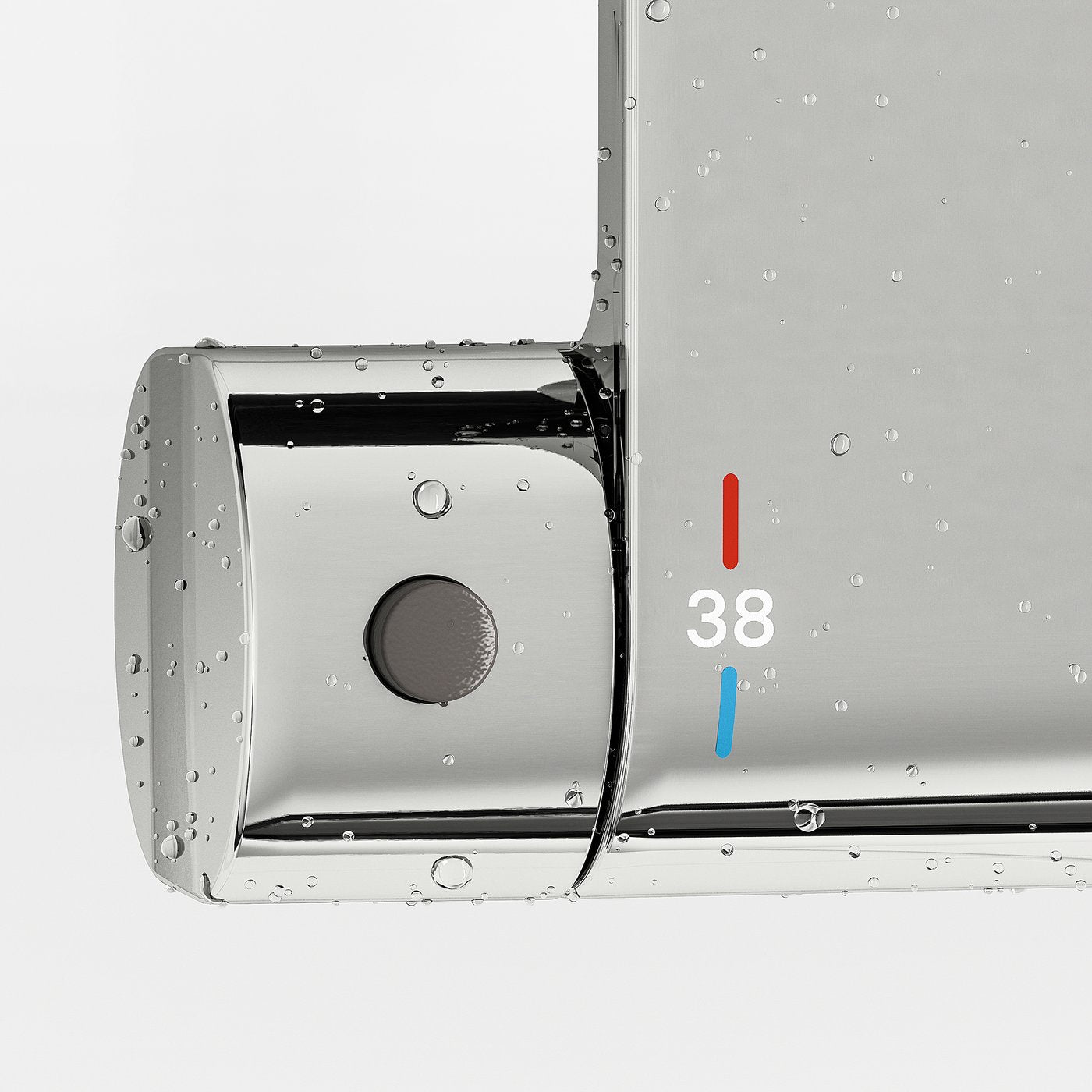

• You can override the safety stop temperature by pressing the override button.

Compl. assembly information

• 150 mm fixed inlet centres.

Included

• Wall fittings included.
• Pressure compensating flow regulator included.

Purchase-/Other information

• The thermostatic mixer is pre-set to a safety stop temperature of 38 °C. Since operating conditions in each supply system varies, it might be necessary to calibrate the mixer according to the service and installation instructions.
• Recommended hot water temperature: 60°-65°C/140°F-149°F.
• Recommended cold water temperature: 10-15°C/50°F-59°F.
• The hand shower consumes 6.8 l of water/min. and the head shower consumes 9.5 l of water/min.
• Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.

White goods information

• Max. temperature hot water system 80°C/176°F.

Test results and compliance

• The thermostatic shower mixer can be used in high pressure systems. Tested to manage a pressure of max. 10 bar (1000 kPa). Recommended working pressure: 1.0 - 5.0 bar (100 kPa - 500 kPa).

Other information

• IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
